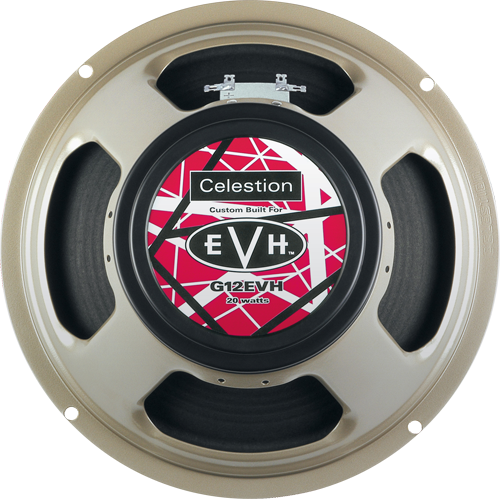

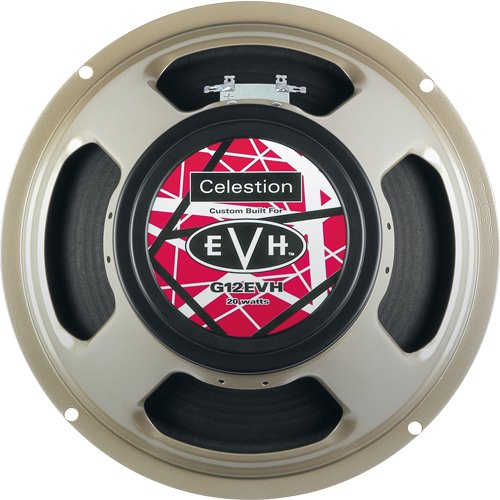

Celestion G12 EVH 12" 20W - 15Ω

Throughout his career, whether in the studio or on the stage, the Celestion 20-watt 'Greenback' has played an essential role to Edward Van Halen in making the tones that rewrote the book on guitar sound.

When it came time to select speakers for his new EVH Brand 5150-III signature amp, there was only one choice - Celestion.The Heritage Series G12M guitar speaker faithfully reproduces the sonic qualities of the original '60s version Greenback used to make EVH tone from day one. With the addition of a black rear can featuring the EVH logo and his unmistakable red, white and black stripes, the G12EVH was born. Unmistakable look, but more importantly unmistakable tone.

SPECIFICATIONS

Nominal Diameter: 12in/305mm
Nominal Power Rating: 20W
Nominal Impedance: 8Ω or 15Ω
Sensitivity: 96dB
Frequency Range: 75-5000Hz
Resonance Frequency, Fs: 75Hz
DC Resistance, Re: 6.57Ω & 12.13Ω
Voice Coil Diameter: 44mm / 44mm
Chassis Type: Pressed steel
Magnet Type: Ceramic
Magnet Weight: 35oz/0.99kg
Voice Coil Material: Round copper

MOUNTING INFORMATION

Cut-out Diameter: 11.1in/283mm
Diameter: 12.2in/309mm
Magnet Structure Diameter: 5.9in/150mm
Mounting Hole PCD: 11.7in/297mm
Number of Mounting Holes: 4
Overall Depth: 5.1in/130mm
Unit Weight: 7.9lb/3.6kg
