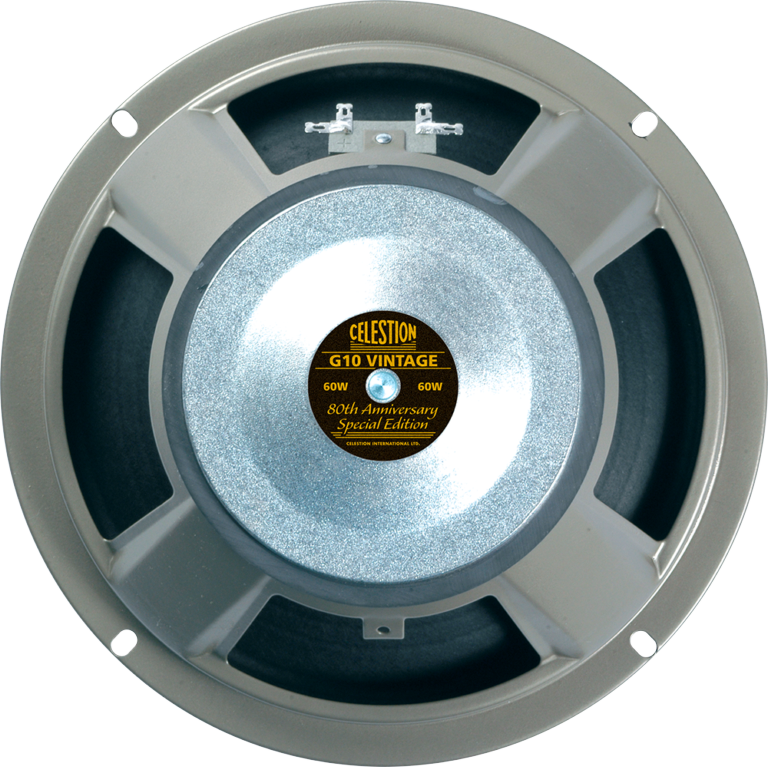

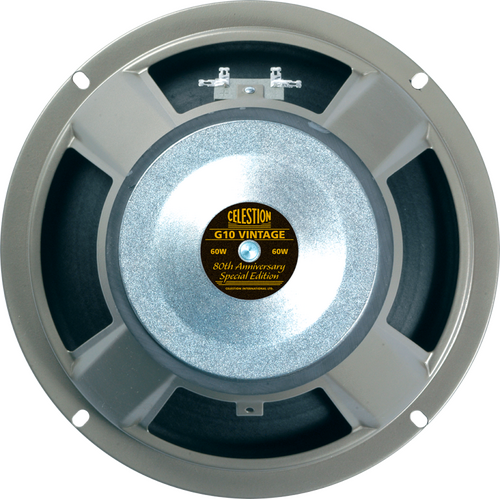

Celestion G10 Vintage 10" 60W - 8Ω

A worthy successor to the Vintage 10 the G10 Vintage is a 10 speaker with bags of attitude. Using powerful ceramic magnets and the same voice coil design as the Vintage 30 the G10 packs an impressive punch with its 60W power handling.With the fast response of a 10 but with the strong and creamy vocal tones of a 12 the G10 is the ideal choice to add depth to hollow- sounding amps or for players who want to get humbucker-type girth from single-coils. Can be used singly to add vocal warmth to small valve combos or in quartets for a weightier but still lively attack.

SPECIFICATIONS

Nominal Diameter: 10in/254mm
Nominal Power Rating: 60W
Rated Impedance: 8Ω or 16Ω
Sensitivity: 97dB
Frequency Range: 100-5500Hz
Resonance Frequency, Fs: 115Hz
DC Resistance, Re: 7.47Ω or 12.33Ω
Voice Coil Diameter: 44mm / 44mm
Chassis Type: Pressed steel
Magnet Type: Ceramic
Magnet Weight: 31oz/0.88kg
Voice Coil Material: Round copper

MOUNTING INFORMATION

Cut-out Diameter: 9.0in/229mm
Diameter: 10.1in/256mm
Magnet Structure Diameter: 5.3in/134mm
Mounting Hole Dimensions: Ø 0.2 x 0.3in, 6 x 8mm
Mounting Hole PCD: 9.6in/245mm
Number of Mounting Holes: 4
Overall Depth: 4.1in/104mm​​​​​​​
Unit Weight: 5.3lb/2.4kg
