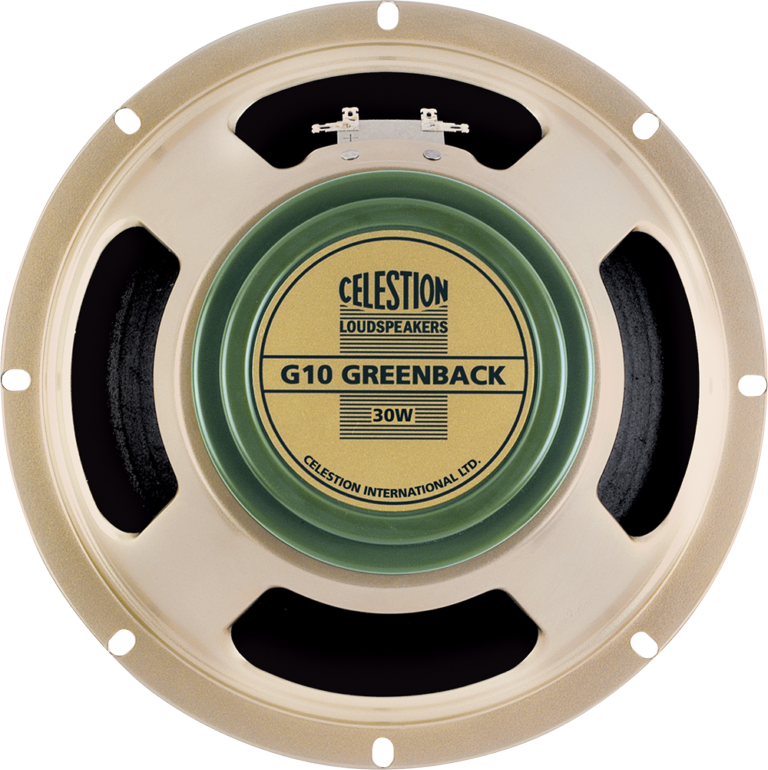

Celestion G10 Greenback 10" 30W - 8Ω

This guitar speaker was developed to recapture the legendary sound of Celestion’s 1970s 10s – a 10 speaker with a surprisingly meaty tone. Low in output but with the weighty low-end balance of a 12-inch speaker, the G10 Greenback features a complex mid-range and smooth vintage top-end. In small combos this speaker adds real class and when combined in a 4×10 gives rise to a raunchy full-bodied tone rich in low-end thump.

SPECIFICATIONS

Nominal Diameter: 10in/254mm
Nominal Power Rating: 30W
Rated Impedance: 8Ω or 16Ω
Sensitivity: 95dB
Frequency Range: 95-5500Hz
Resonance Frequency, Fs: 98Hz
DC Resistance, Re: 6.4Ω or 12.05Ω
Voice Coil Diameter: 44mm / 44mm
Chassis Type: Pressed steel
Magnet Type: Ceramic
Magnet Weight: 14oz
Voice Coil Material: Round copper

MOUNTING INFORMATION

Cut-out Diameter: 9.0in/229mm
Diameter: 10.0in/254mm
Magnet Structure Diameter: 4.9in/124mm
Mounting Hole Dimensions: Ø 0.25 x 0.43in/6.5 x 11mm
Mounting Hole PCD: 9.6in/245mm
Number of Mounting Holes: 8
Overall Depth: 4.0in/102mm
Unit Weight: 3.5lb/1.6kg
