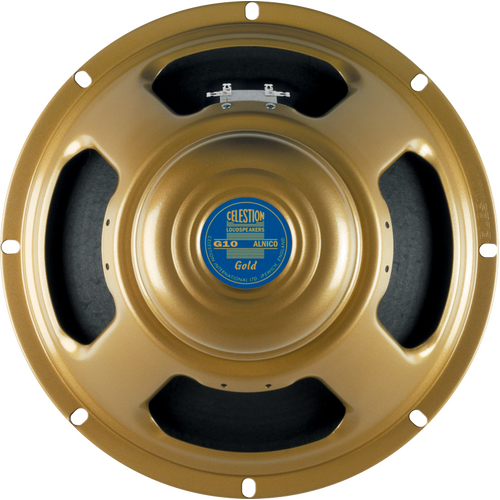

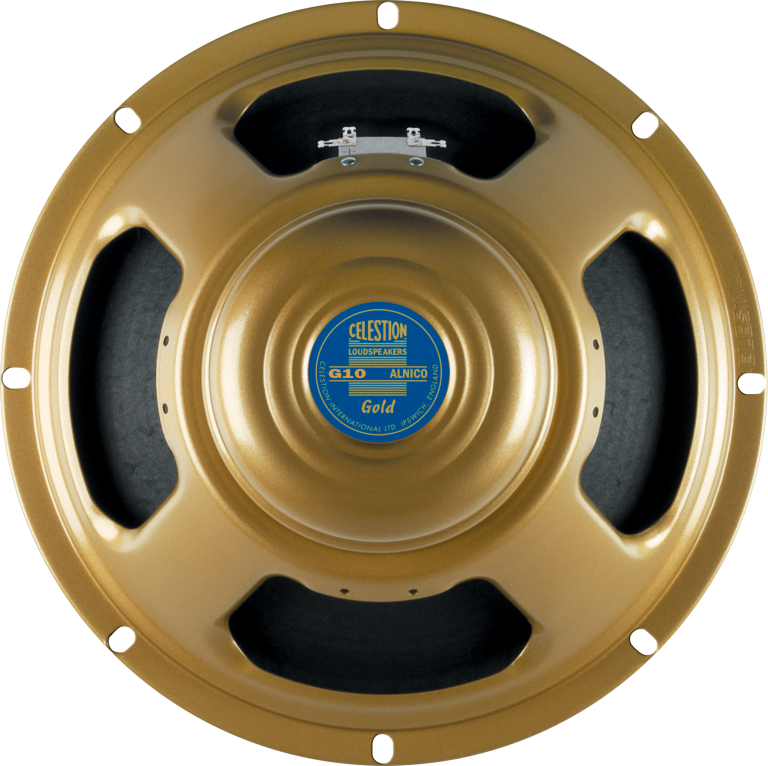

Celestion G10 Gold 10" 40W - 8Ω

Following the great reviews we received for the Gold 12″, we realised there was also a need for a speaker that conveyed the Alnico mellowness of the original Blue, with the speed and response of a 10″ driver.The G10 Gold is the ultimate 10″ guitar speaker, blending unmistakable Alnico class with a rich low-end, creamy mid-range and vintage chiming top-end.

Springy, warm, revealing and highly expressive, it can be used singly or in pairs to add a classy sheen to any amp, or in a 4×10 configuration for higher volume depth, warmth and shimmer, with less of the boom associated with 4×12 cabinets.

SPECIFICATIONS

Nominal Diameter: 10in/254mm
Nominal Power Rating: 40W
Rated Impedance: 8Ω or 16Ω
Sensitivity: 98dB
Frequency Range: 80-6000Hz
Resonance Frequency, Fs: 80Hz
DC Resistance, Re: 6.66Ω or 13.56Ω
Voice Coil Diameter: 44mm / 44mm
Chassis Type: Pressed steel
Magnet Type: Ceramic
Voice Coil Material: Round copper

MOUNTING INFORMATION

Cut-out Diameter: 9.0in/229mm
Diameter: 10.1in/256mm
Magnet Structure Diameter: 4.7in/119mm
Mounting Hole Dimensions: Ø 0.25in/6.5mm
Mounting Hole PCD: 9.6in/245mm
Number of Mounting Holes: 8
Overall Depth: 5.3in/135mm
Unit Weight: 6.0lb/2.7kg
