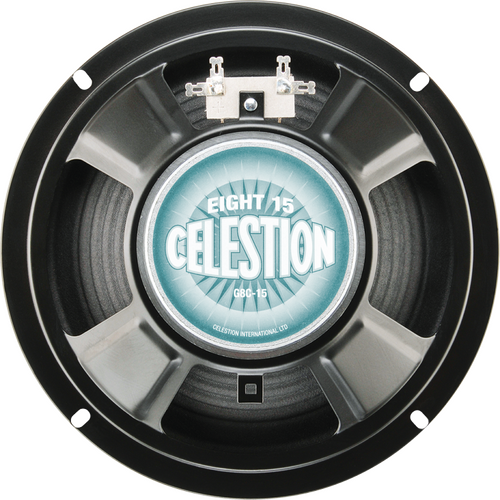

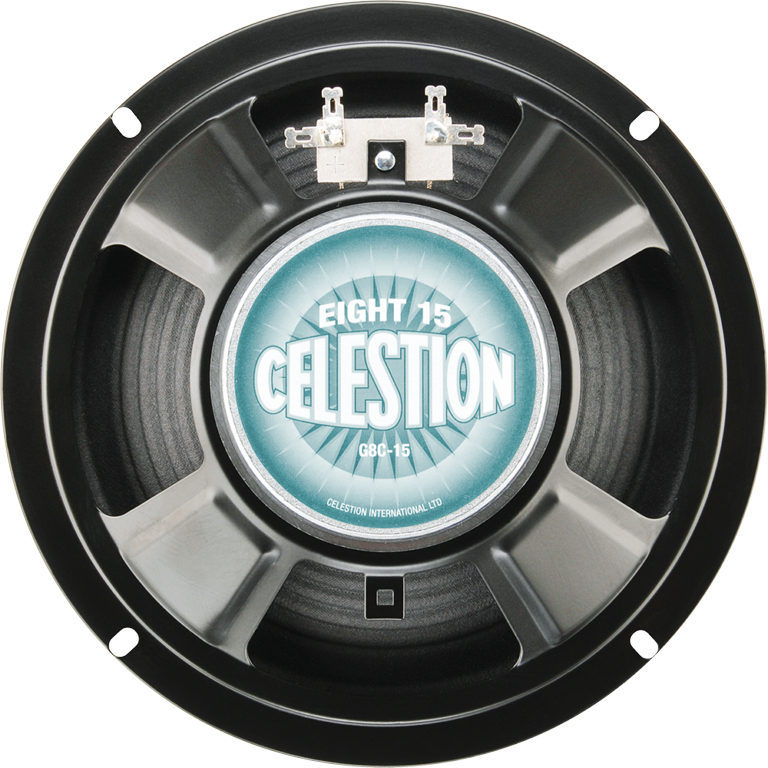

Celestion Eight 15 8" 15W - 16Ω

The Eight 15 is ideal for upgrading your bedroom blaster with authentic British tone. Well-balanced mids and highs complement a surprisingly meaty bottom end – it’s just about the biggest sounding 8 inch loudspeaker we’ve ever heard! The Eight 15 speaker is also available in 4Ω making it ready willing and able to blast new life into junior combos like the Fender® Champ™ bringing extra depth girth and punch to your tone.

Supersize the performance of your amp with the sonic might of the Eight 15 the fattest sounding 8-inch speaker around.

SPECIFICATIONS

Nominal Diameter: 8in/203mm
Nominal Power Rating: 20W
Nominal Impedance: 4Ω, 8Ω or 16Ω
Sensitivity: 95dB
Frequency Range: 100-5000Hz
Resonance frequency Fs: 120Hz
DC resistance, Re: 2.63Ω, 6.55Ω or 12.88Ω
Voice coil diameter (mm): 25mm
Voice coil diameter (in): 1in
Chassis Type: Pressed steel
Magnet Type: Ceramic
Magnet Weight: 13oz/0.37kg
Voice coil material: Round copper

MOUNTING INFORMATION

Diameter: 8.1in/205mm
Magnet structure diameter: 3.3in/85mm
Mounting slot dimensions: Ø 0.19x0.31in/5x8mm
Mounting slot PCD: 7.7in/195mm
Number of mounting slots: 4
Overall Depth: 3.3in/82.6mm
Cut-out diameter: 7.2", 183mm
Unit Weight: 2.2lb/1kg
