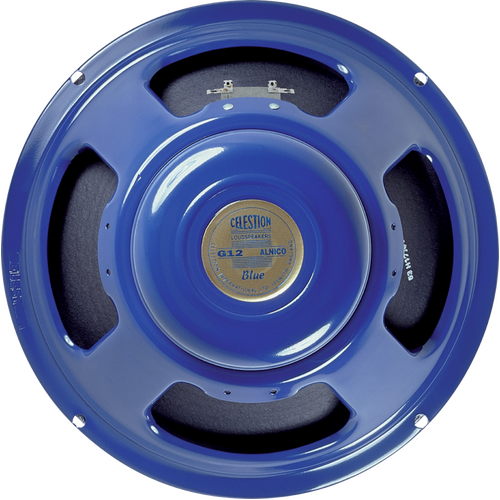

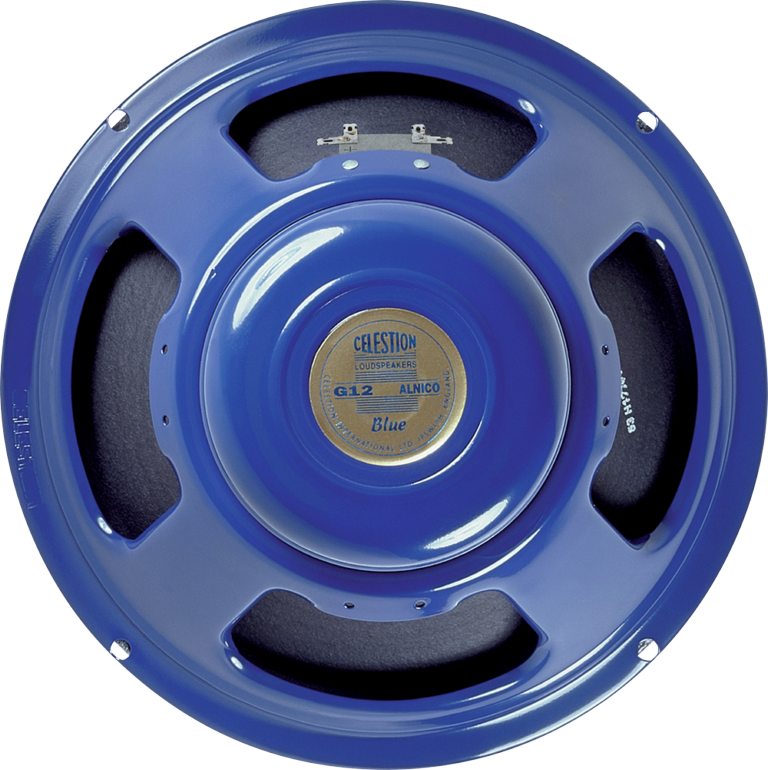

Celestion Blue 12" 15W - 8Ω

This classic guitar speaker actually started life as a radio speaker that was modified specifically for use in electric guitar amplifiers. In its original G12 guitar speaker incarnation it appeared in several colour variations, but it was the Blue version, known as T.530 and fitted as standard into Vox AC30 amps that secured its place in guitar tone history.

The Blue found favour with notable guitarists like Brian May due to its glorious dampened attack warm lows mellow upper-mids and brilliant bell-like top-end. When coupled with a suitable amplifier it evokes rich definition and develops beautiful musical compression when pushed. According to tone enthusiasts worldwide the Blue is the benchmark for guitar speaker perfection.

SPECIFICATIONS

Nominal Diameter: 12in/305mm
Nominal Power Rating: 15W
Nominal Impedance: 8Ω or 15Ω
Sensitivity: 100dB
Frequency Range:  75-5000Hz
Resonance frequency Fs: 75Hz
DC resistance, Re: 6.4Ω or 11.8Ω
Voice coil diameter (mm): 44mm
Voice coil diameter (in): 1.75in
Chassis Type: Pressed steel
Magnet Type: Alnico
Voice coil material: Round copper

MOUNTING INFORMATION

Diameter: 12.2in/309mm
Magnet structure diameter: 5.0in/128mm
Mounting slot dimensions: Ø 0.31in/7.9mm
Mounting slot PCD: 11.7in/297mm
Number of mounting slots: 4
Overall Depth: 6.5in/165mm
Cut-out diameter: 11.1in/283mm
Unit Weight: 9.3lb/4.2kg
