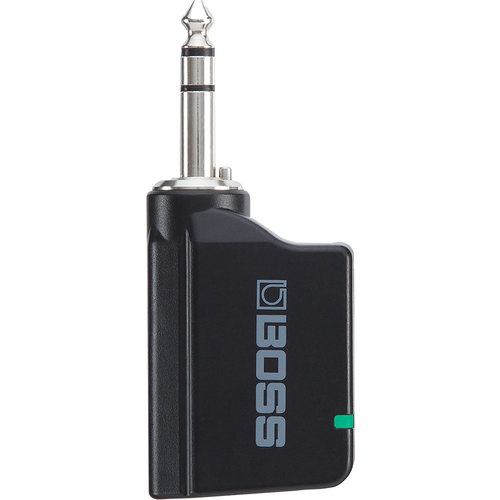

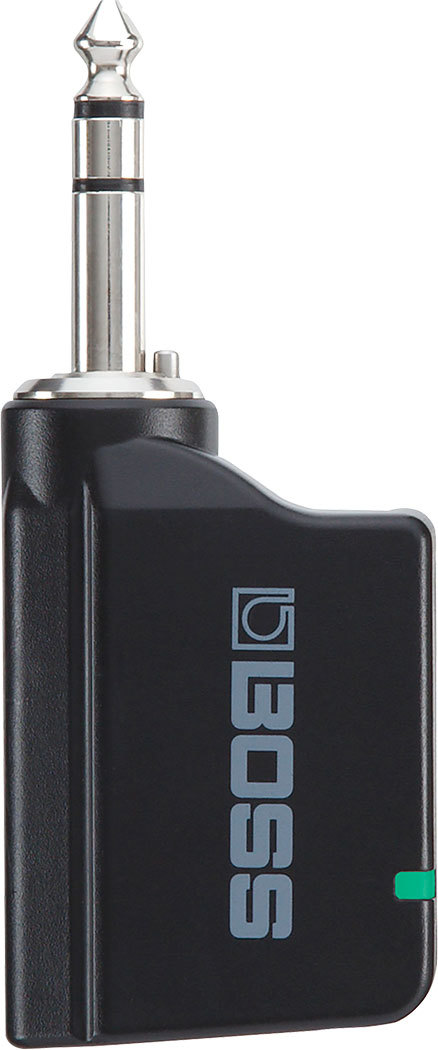

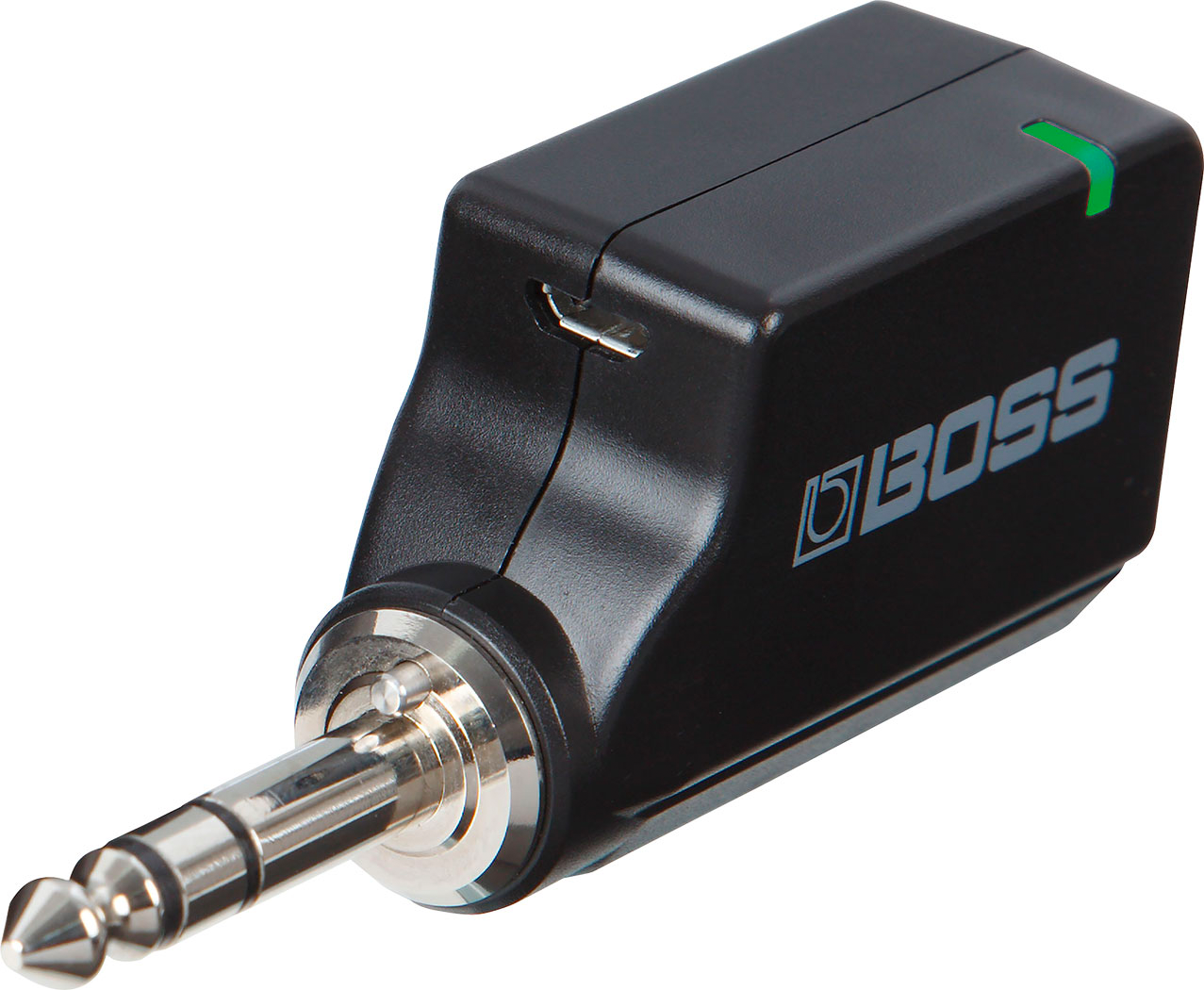

BOSS WL-T

SPARE TRANSMITTER FOR THE WL SERIES, KATANA-AIR AND WAZA-AIR

The WL-T Wireless Transmitter is compatible with WL-series wireless systems and the Katana-Air wireless guitar amp, providing a spare to use if your original transmitter is lost or damaged. When pre-charged, it also functions as a backup transmitter for live performances. To charge the WL-T’s built-in battery and establish a connection to your BOSS wireless receiver, simply follow the same procedures used with the original transmitter included with your system.

The WL-T works with the following BOSS wireless products:
WL-20, WL-20L, WL-50, KATANA-AIR and WAZA-AIR

Note: The WL-T has no audio functionality as a standalone device. To transmit sound, it must be used in conjunction with the wireless receiver in one of the products listed above.

SPECIFICATIONS

Nominal Input Level: -10 dBu (1 Mohms)
Indicator: BATTERY
Connectors:

• Input plug: 1/4-inch TRS phone type

• DC IN 5 V port: USB Micro-B type

Power Supply: Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port
Current Draw: 350 mA
Battery charging time: Approximately 3 hours
Expected battery life under continuous use: Approximately 12 hours
* These figures will vary depending on the actual conditions of use
Accessories: Owner's Manual
Applicable Models:

• KATANA-AIR

• WAZA-AIR

• WL-20

• WL-20L

• WL-50

Dimensions
Width: 87 mm, 3-7/16 inches
Depth: 22 mm, 7/8 inches
Height: 36 mm, 1-7/16 inches
Weight: 43 g, 2 oz

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
