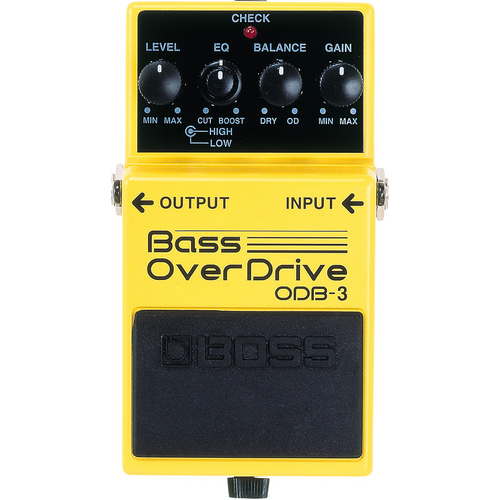

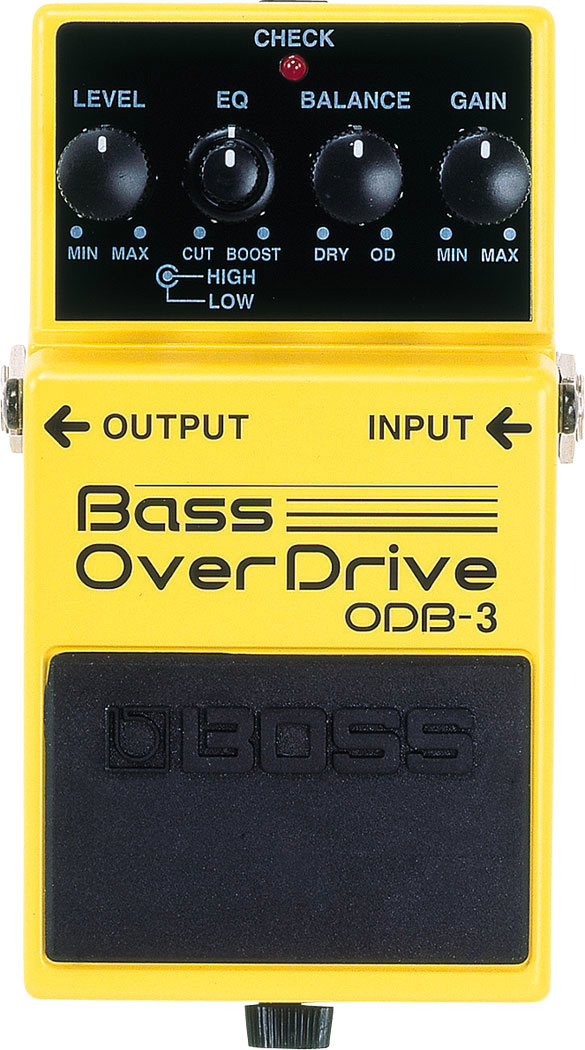

BOSS ODB-3 Bass OverDrive

CRUNCHY OVERDRIVE EFFECTS FOR BASS

The ODB-3 Bass OverDrive delivers the chest-resonating distortion that hard rock, thrash, and punk bassists have been waiting for. This hot compact pedal has been designed specifically for bass applications.

FEATURES

• OverDrive pedal specifically designed for bass

• Onboard two-band equalizer

• Balance knob controls dry/overdriven sound

• AC adaptor or 9V battery operation

• BOSS five-year warranty

SPECIFICATIONS

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:

• GAIN knob

• BALANCE knob

• EQ HIGH/LOW knob

• LEVEL knob

• Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)
Connectors:

• INPUT jack: 1/4-inch phone type

• OUTPUT jack: 1/4-inch phone type

• DC IN jack

Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw: 20 mA
Expected battery life under continuous use:

• Carbon: Approx. 24.5 hours

• Alkaline: Approx. 40.5 hours

*These figures will vary depending on the actual conditions of use.
Accessories:

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

• Carbon-zinc battery (9 V, 6F22)

Options (sold separately): AC adaptor: PSA series

Dimensions
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 390 g, 14 oz

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
