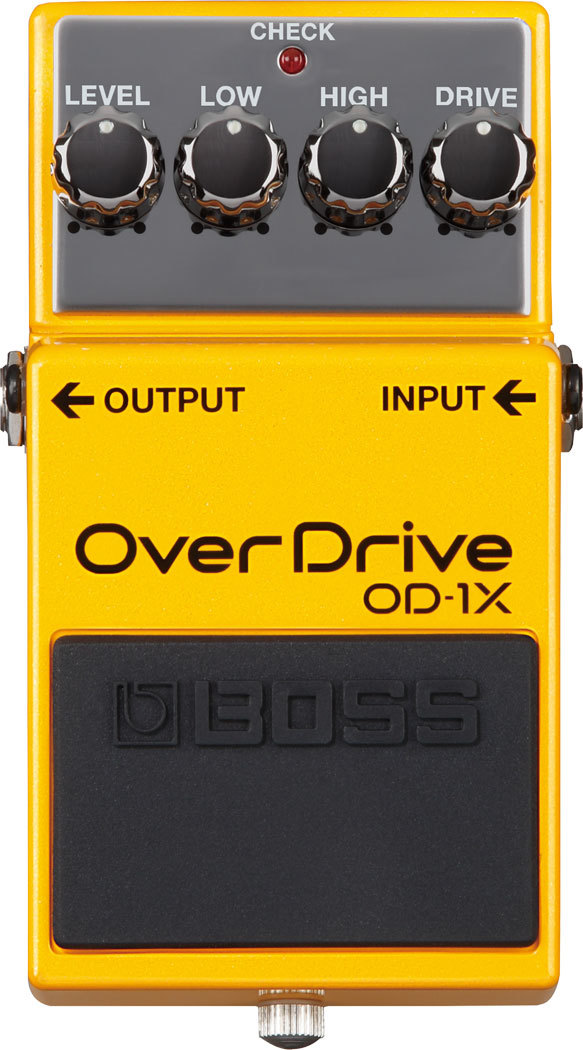

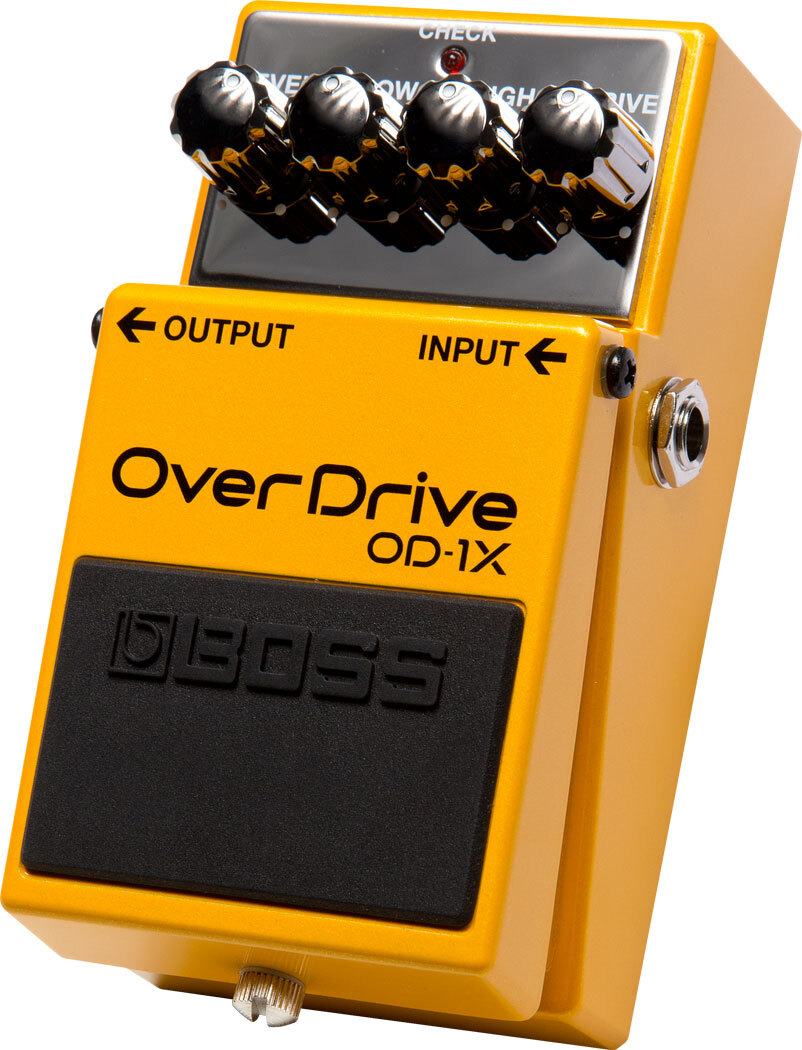

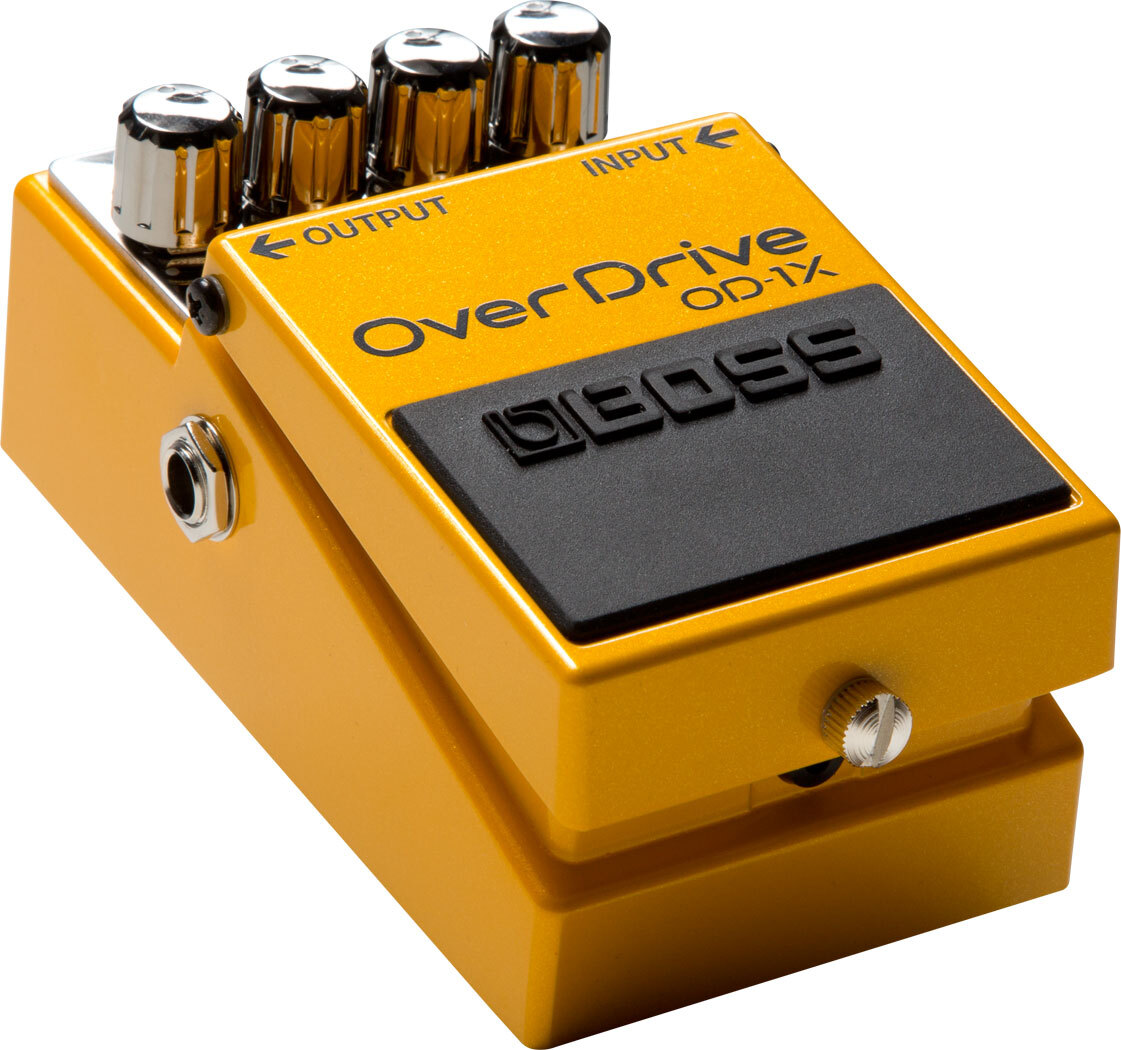

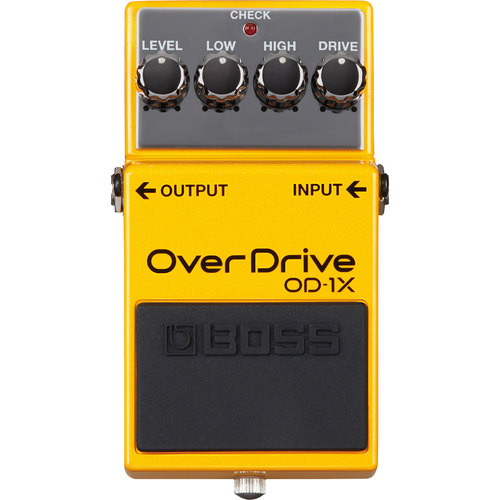

BOSS OD-1X OverDrive

SPECIAL EDITION BOSS PEDAL WITH PREMIUM TONE

The OD-1X launches the famous BOSS overdrive into a modern era of expression, delivering an unmatched level of performance for guitarists with an ear for tone. This next-generation stomp combines over 35 years of innovation in pedal design with the most advanced technologies, bringing you a completely new tonal experience that’s only possible with the legendary expertise of BOSS. Prepare to be amazed—the inspiring and ultra-responsive OD-1X will change your thinking about overdrive pedals forever.

FEATURES

• Special edition BOSS overdrive pedal with next-generation sound, feel, and response

• All-new design provides a superior playing experience that’s unattainable with analog overdrive pedals

• Powerful real-time processing delivers rich, wide-range sounds with natural compression

• Bold, high-definition tone that’s also smooth and refined

• Preserves the unique tonal characteristics of different guitars and pickup types

• Very low noise, even with high-gain settings

• Drive, High, and Low knobs offer a wide range of sound shaping not found in typical stompbox pedals

• Striking appearance with exclusive chrome knobs and control plate, plus vintage silver knob for battery compartment access

• Features BOSS’ innovative Multi-Dimensional Processing (MDP), realized with proprietary technology and custom DSP

• BOSS five-year warranty

Plug Into the Ultimate Overdrive Experience
The OD-1X delivers overdrive unlike any pedal ever made, with an all-new dimension of sound quality, clarity, and tonal range. Thanks to BOSS’ magical MDP technology, every note on the fretboard sounds flawless, with fat tones when riffing leads and a smooth, transparent grind when playing chords. At every setting, you’re welcomed with wide-range sounds and a complex, refined presence that’s both cutting and smooth. The sound character and overdrive amount naturally follow your picking dynamics, putting a world of subtle tonal changes under your fingers. When playing through the OD-1X, the tone is so big, bold, and responsive that you’ll soon forget you’re plugged into a compact overdrive pedal.

SPECIFICATIONS

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:

• Pedal switch

• LEVEL knob

• LOW knob

• HIGH knob

• DRIVE knob

Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors:

• INPUT jack

• OUTPUT jack

• AC adaptor jack (DC 9 V)

Power Supply: Alkaline battery (9V, 6LR61)
AC adaptor (sold separately)
Current Draw: 65 mA
Expected battery life under continuous use: Alkaline: Approx. 6 hours
* These figures will vary depending on the actual conditions of use.
Accessories:

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")

• Alkaline battery (9V, 6LR61)

Option (sold separately): AC adaptor (PSA series)

Dimensions
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight: 440 g, 1 lb

* 0 dBu = 0.775 Vrms
