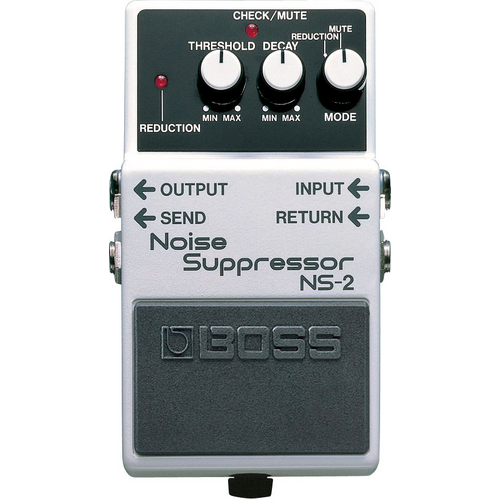

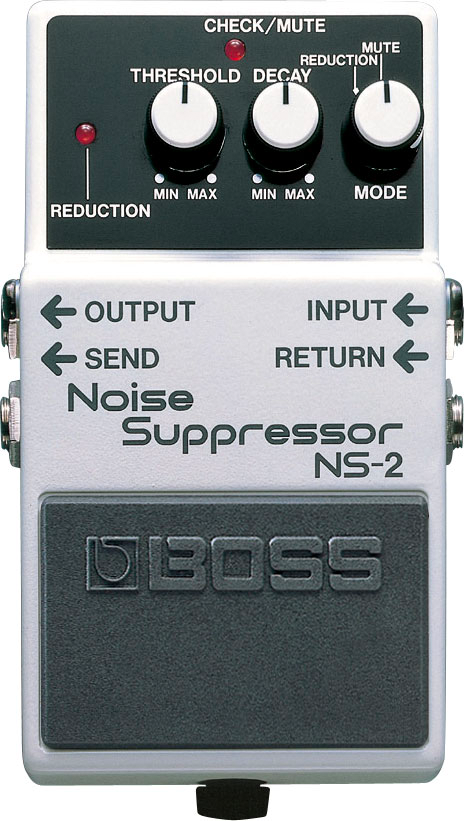

BOSS NS-2 Noise Suppressor

A “MUST-HAVE” PEDAL!

The NS-2 Noise Suppressor eliminates unwanted noise and hum without altering an instrument's natural tone. It's the perfect pedal to quiet down any pedalboard or effects setup.

FEATURES

• Compact noise suppression pedal for eliminating noise and hum in guitar and bass effects and amplifier setups

• Unique noise detection circuit preserves the natural attack and envelope of an instrument's sound

• Threshold and Decay knobs allow for shaping the elimination/suppression as desired

• BOSS 5-year warranty

SPECIFICATIONS

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:

• MODE selector switch

• DECAY knob

• THRESHOLD knob

• Pedal switch

Indicator:

• CHECK/MUTE indicator (Used for indication of check battery)

• REDUCTION indicator

Connectors:

• INPUT jack: 1/4-inch phone type

• OUTPUT jack: 1/4-inch phone type

• SEND jack: 1/4-inch phone type

• RETURN jack: 1/4-inch phone type

• DC IN jack

• 9V DC OUT jack

Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw: 25 mA
Expected battery life under continuous use:

• Carbon: Approx. 11 hours

• Alkaline: Approx. 24.5 hours

*These figures will vary depending on the actual conditions of use.
Accessories:

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

• Carbon-zinc battery (9 V, 6F22)

Options (sold separately):

• AC adaptor: PSA series

• Parallel DC Cord: PCS-20A

Dimensions
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 415 g, 15 oz

* 0 dBu = 0.775 Vrms
* The specifications are subject to change without notice.
