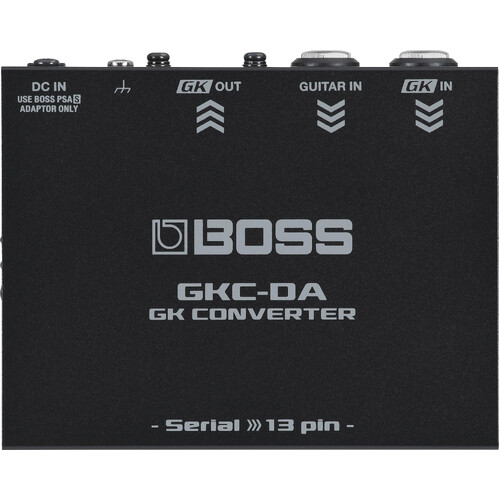

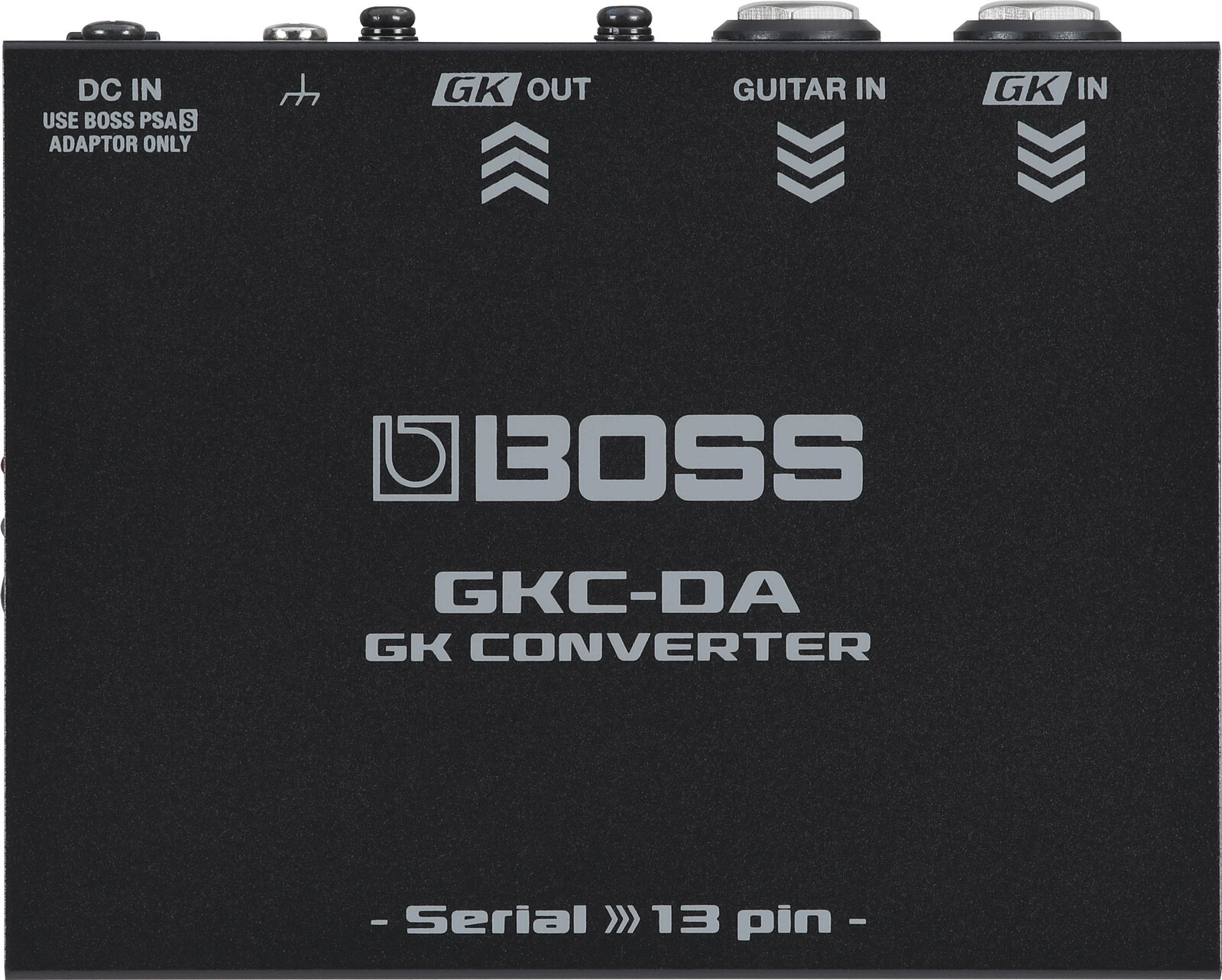

BOSS GKC-DA GK Converter

Drive BOSS and Roland 13-Pin GK Devices from the Next-Generation Serial GK Interface

The latest BOSS guitar synthesizer products feature the Serial GK digital interface, a newly developed connection method that delivers evolved performance over the analog 13-pin GK interface used in earlier BOSS and Roland guitar synth and modeling products. The GKC-DA GK Converter allows you to drive a 13-pin GK device such as the BOSS SY-1000 or GP-10 using the Serial GK output on a GK-5 or GK-5B Divided Pickup or the GM-800 Guitar Synthesizer.

Supported Products
The GKC-DA allows you to use the following 13-pin GK products with Serial GK devices:

BOSS Products

• SY-1000 Guitar Synthesizer

• GP-10 Guitar Processor

Roland Products

• GR-55 Guitar Synthesizer and other legacy products with a 13-pin GK input

FEATURES

• Converts the Serial GK digital interface to the classic 13-pin analog GK interface

• Serial GK input and 13-pin GK output

• Instrument input for passing normal guitar/bass pickup sounds to the 13-pin output

• Compact and rugged metal design

SPECIFICATIONS

Connector:

• GK IN jack: 1/4-inch TRS phone type (for BGK cable only)

• GK OUT connector: 13 pins DIN type

• GUITAR IN jack: 1/4-inch phone type

• DC IN jack

• USB port: USB Micro-B (program update only)

Nominal Input Level: GUITAR IN: -10 dBu
Maximum Input Level: GUITAR IN: +16 dBu
Input Impedance: GUITAR IN: 1 M ohm
Indicators:

• POWER indicator

• GK CONNECT indicator

Current Draw: 390 mA
Power Supply: AC adaptor
Accessories:

• AC adaptor

• Owner’s Manual

• Leaflet “USING THE UNIT SAFELY“

Options (sold separately): Serial GK cable: BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)

Dimensions
Width: 115 mm, 4-17/32 inches
Depth: 92 mm, 3-5/8 inches
Height: 36 mm, 1-7/16 inches
Weight: 340 g, 12 oz

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice
