BOSS GK5-KIT-G6

Dedicated Kit for Ultimate Serial GK Integration

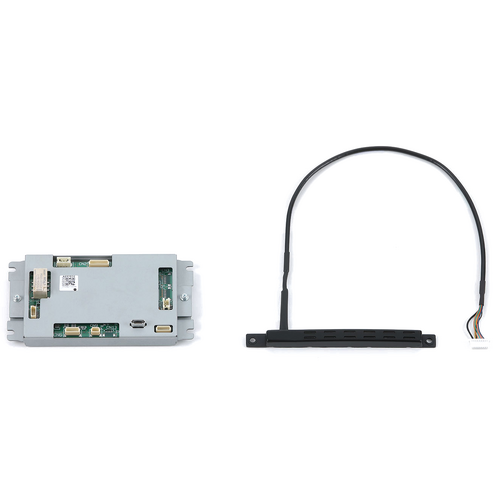

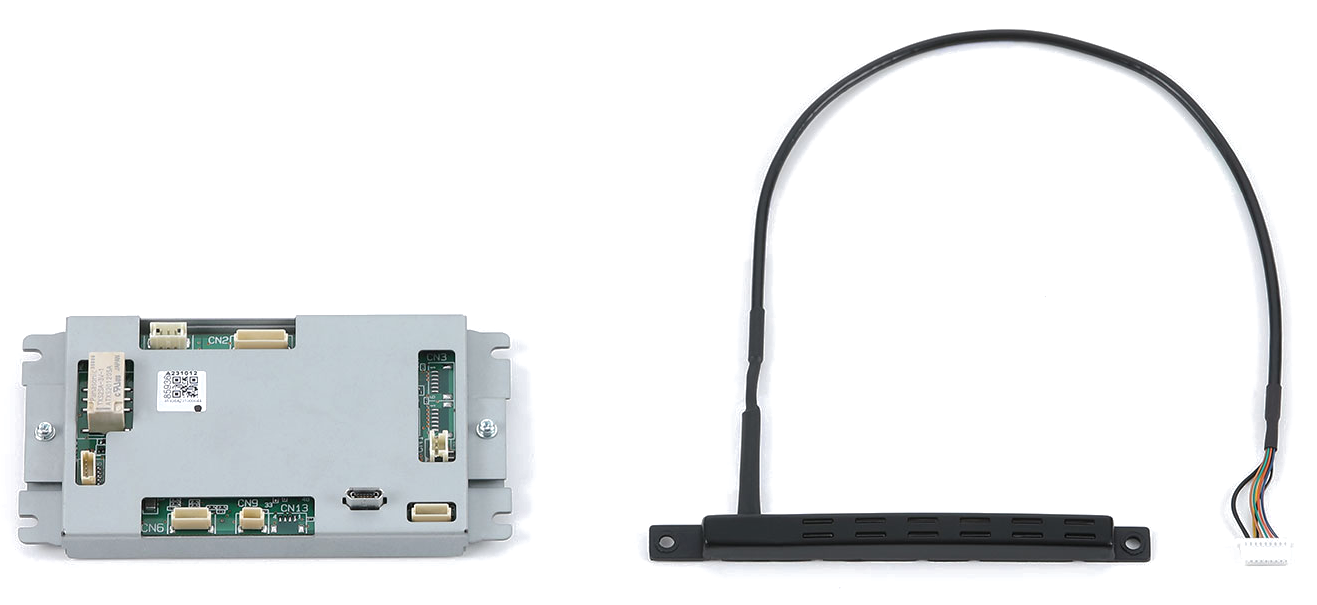

The GK5-KIT-G6 Divided Pickup Kit has been designed exclusively for six-string electric guitars. It contains the necessary parts for complete professional installation of BOSS’s GK-5 Divided Pickup with expanded controls. For ease of use, controls can be appropriately positioned at the player’s discretion during the customization process. Parts include the GK-5 unit itself, a bespoke circuit board, the Serial GK connector board/plate, volume pot, and switches, plus an LED, wires, springs, and screws.

Expanded Fingertip Control
Once installed, the GK5-KIT-G6 system works in complete harmony with the instrument’s standard pickup harness. Both outputs can be selected independently or blended using the three-way toggle switch. A three-way momentary switch activates two controls (S1 and S2) that can be assigned to various functions depending on the GK-compatible device attached. Similarly, while the GK volume knob adjusts synth level, it can also be used to continuously control a variety of assignable parameters. A handy LED lets you know when the GK5-KIT-G6 is receiving power.

Installing this product requires modifications to your guitar/bass. Ask a dealer or repair shop that specializes in modifying and installing guitar/bass parts to do this work. Note that any issues or accidents that may occur during installation, as well as repairs that may be required after installation, are the customer’s responsibility, and Roland offers no guarantees or repairs in this regard.

SPECIFICATIONS

Supplied parts contents:

• Divided pickup x 1

• Main board unit x 1

• GK connector board x 1

• GK connector plate x 1

• Installation screws for the divided pickup (M3 x 20) x 2

• Divided pickup installation springs x 2

• GUITAR/MIX/GK select switch (toggle switch) x 1

• S1/S2 switch (momentary switch) x 1

• GK volume (50 k ohms B curve) x 1

• LED indicator (with wiring) x 1

Wiring:

• Wiring (3 cores) for guitar signal x 1

• Wiring (6 cores) for GK switch x 1

• Wiring (3 cores) for GK volume x 1

• Wiring (5 cores) for GK connector x 1

Parts should be arranged separately:

• Screws for attaching the GK connector installation plate onto the guitar x 4

• Screws for attaching the main board unit onto the guitar x 4

Maximum input level on normal guitar input: INPUT: +11 dBu
Accessory: Owner's Manual
Options (sold separately): Serial GK cable: BGK-3 (3 ft./1 m), BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)

Size and Weight (Main Board Unit)
Width: 100 mm / 3-15/16 inches
Depth: 54.4 mm / 2-3/16 inches
Height: 13.4 mm / 9/16 inches
Weight: 70 g / 3 oz

Size and Weight (Divided Pickup)
Width: 102.3 mm / 4-1/16 inches
Depth: 7.8 mm / 5/16 inches
Height: 8 mm / 3/8 inches
Weight: 10 g / 0.4 oz

Weight (Others)
Weight: 50 g / 2 oz

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
