BOSS FV-30L

BOSS QUALITY IN SPACE-SAVING DESIGNS FOR YOUR PEDALBOARD

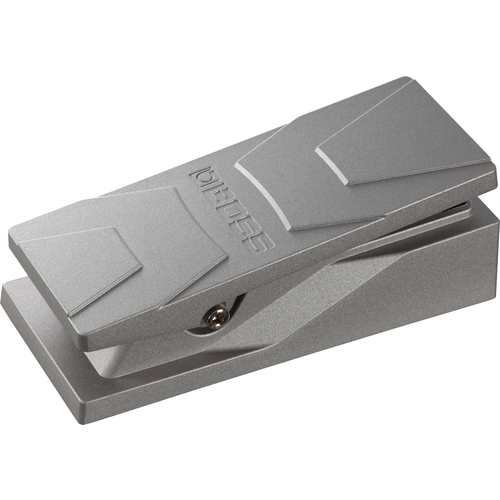

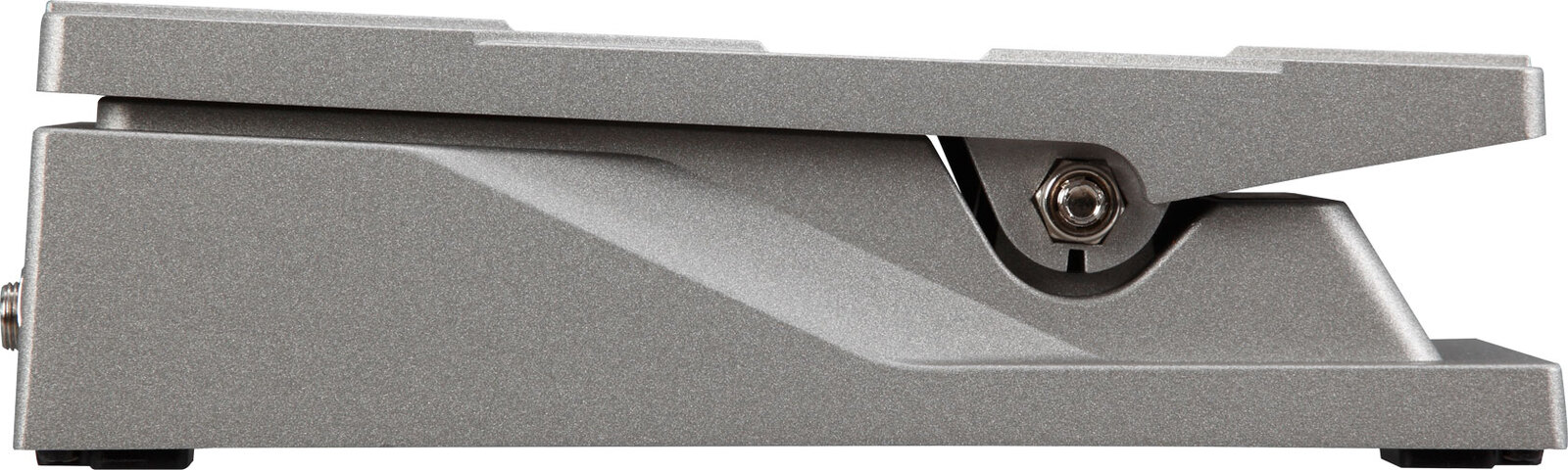

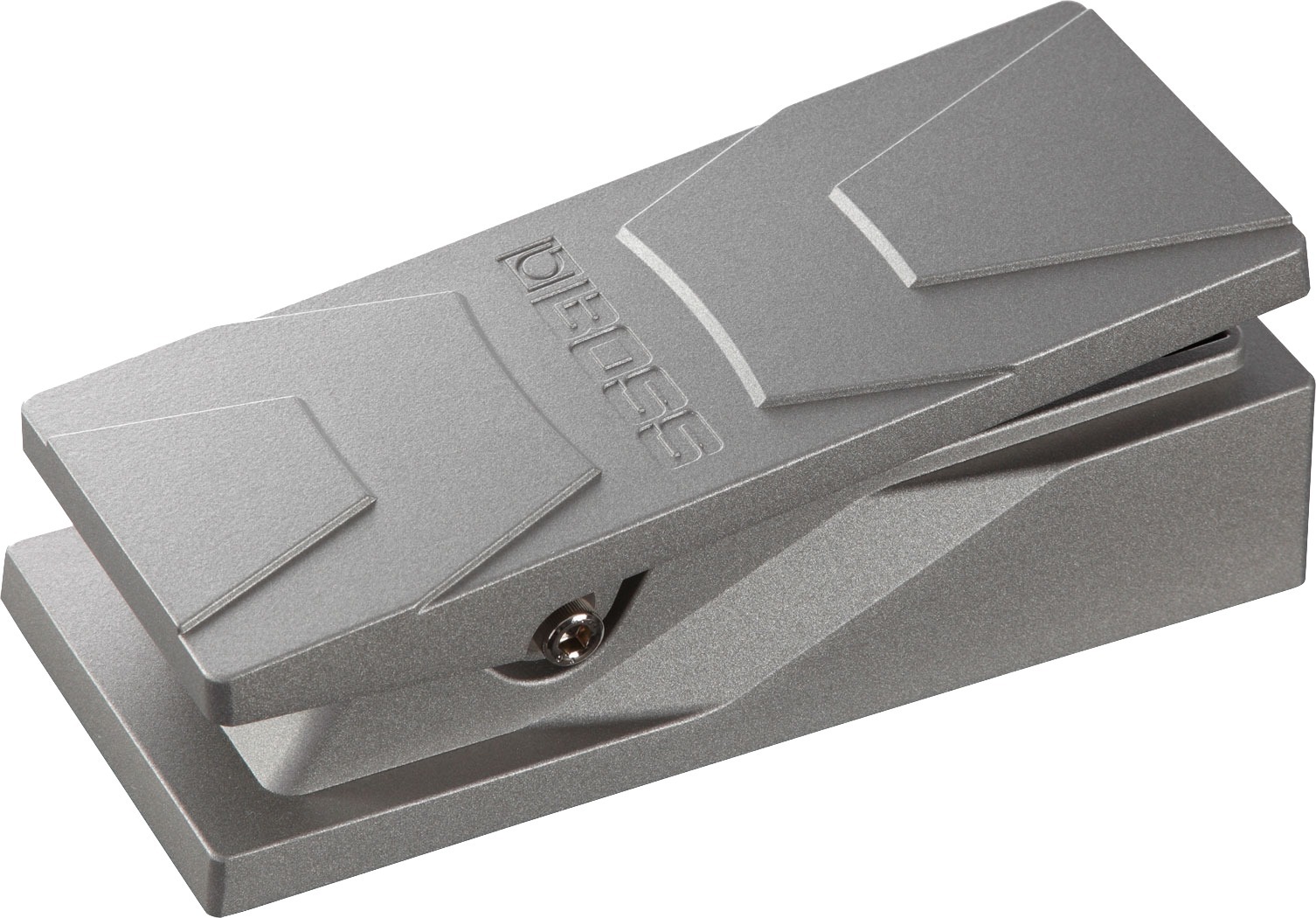

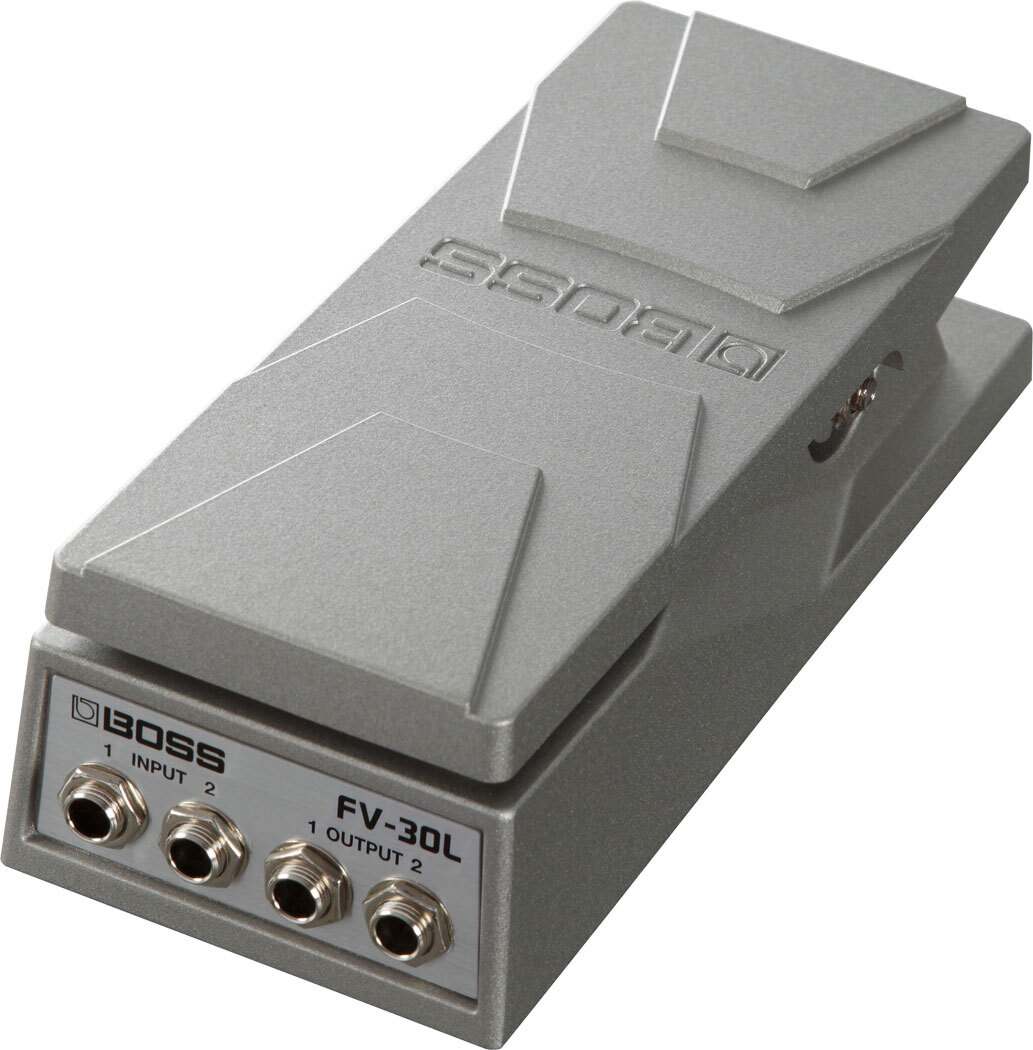

The FV-30H and FV-30L are compact foot volume pedals with kickin’ new designs. They’ve been specially created for saving space on your pedalboard while maintaining the trusted BOSS standard for sound quality, reliability, and durability. These pedals are 100-percent professional grade, aluminum die-cast units, and feature smooth pivot action that supports subtle changes in volume control. Thanks to their small size, the FV-30H and FV-30L offer a huge advantage for traveling musicians and gigging players who need to maximize pedalboard space.

As with the other models in the FV series, two different pedal versions allow you to choose the best type for your specific application:

FV-30L—A low-impedance pedal equipped with stereo input/output for stompboxes, keyboards, and other digital instruments.

FEATURES

• Space-saving volume pedals with rugged aluminum die-cast body designs

• Silky feel with smooth pivot for maximum control

• Stereo input and output (FV-30L)

SPECIFICATIONS

Connectors:

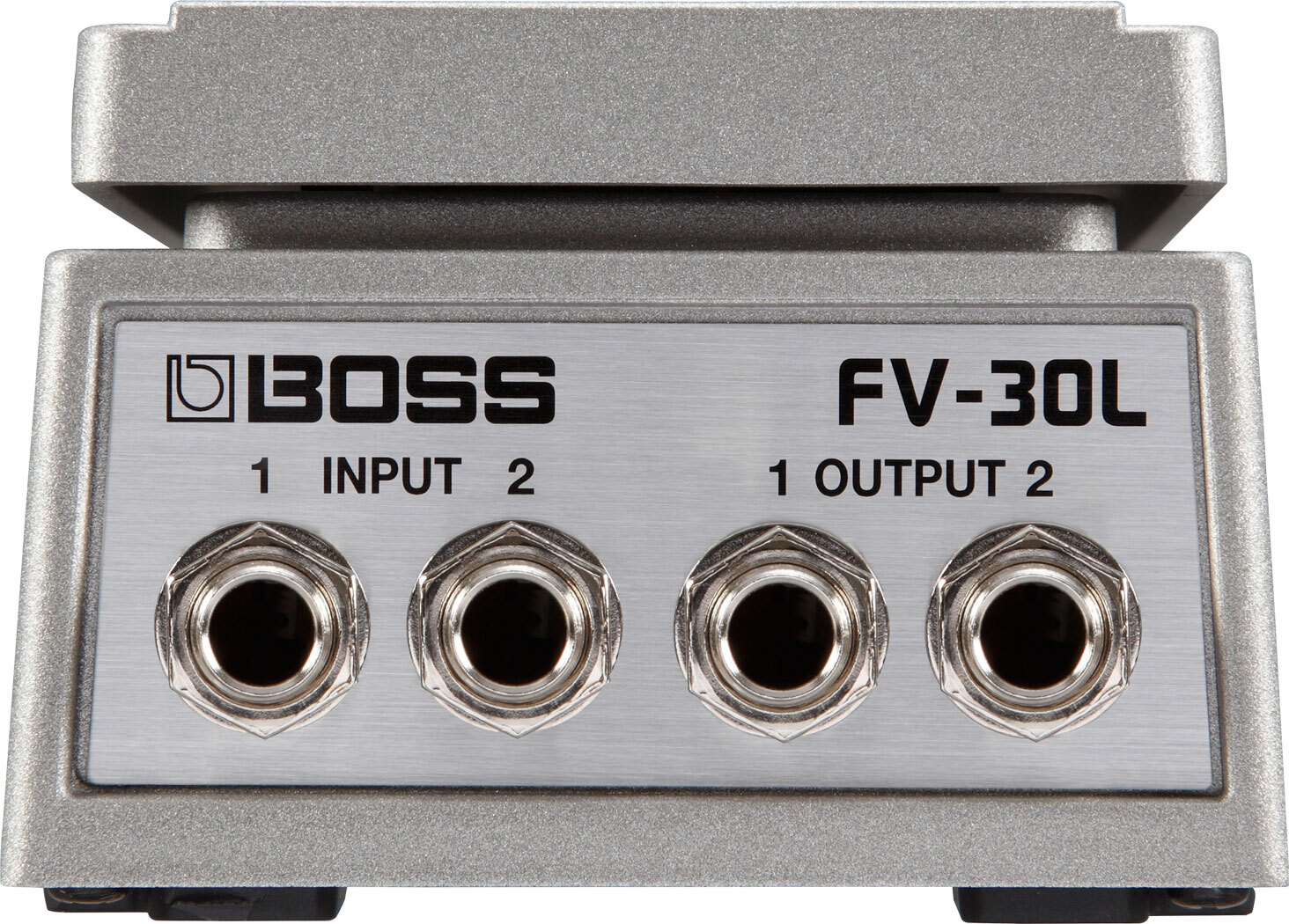

• INPUT 1, 2 jacks: 1/4-inch phone type

• OUTPUT 1, 2 jacks: 1/4-inch phone type

Accessory: Owner's Manual

Dimensions
Width: 80 mm, 3-3/16 inches
Depth: 192 mm, 7-9/16 inches
Height: 58 mm, 2-5/16 inches
Weight: 840 g, 1 lbs. 14 oz.

Dimensions (Maximum Height)
Width: 80 mm, 3-3/16 inches
Depth: 192 mm, 7-9/16 inches
Height: 92 mm, 3-10/16 inches
Weight: 840 g, 1 lbs. 14 oz.
