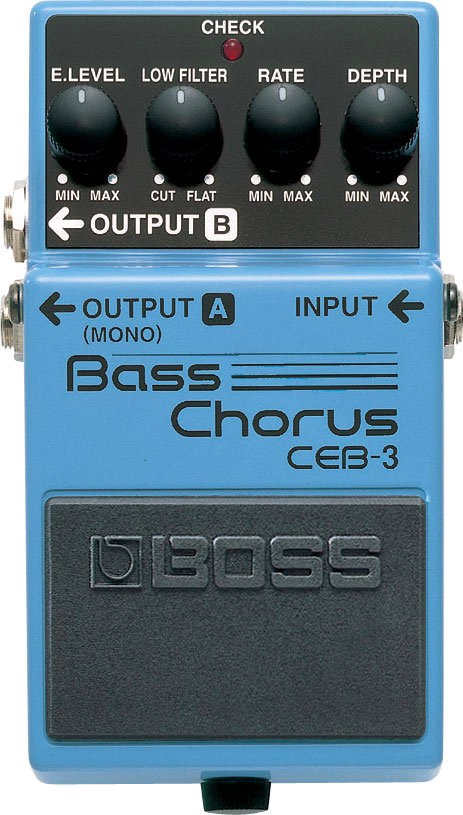

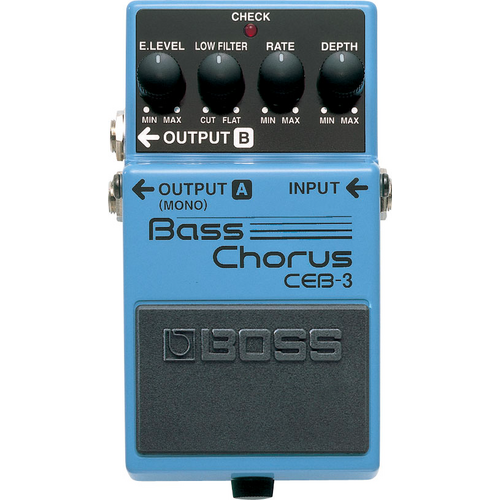

BOSS CEB-3 Bass Chorus

A CHORUS PEDAL WITH BUILT-IN CROSSOVER

The CEB-3 Bass Chorus pedal offers a split-frequency chorus effect capable of applying warm, rich chorusing to the higher frequencies without muddying up the lows. It's the perfect chorus pedal for bassists.

FEATURES

• Compact chorus pedal especially designed for bass guitar

• Applies chorus sound to the high frequencies without altering low frequencies

• Effect Level, Low Filter, Rate and Depth knobs permit precise tonal shaping

• BOSS five-year warranty

SPECIFICATIONS

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:

• DEPTH (Modulation depth) knob

• RATE (Modulation rate) knob

• LOW FILTER knob

• E.LEVEL knob

• Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)
Connectors:

• INPUT jack: 1/4-inch phone type

• OUTPUT A (MONO) jack: 1/4-inch phone type

• OUTPUT B jack: 1/4-inch phone type

• DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
Current Draw: 55 mA
Expected battery life under continuous use: Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately): AC adaptor: PSA series

Dimension
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight(including battery): 420 g, 15 oz

* 0 dBu = 0.775 Vrms
* The specifications are subject to change without notice.
