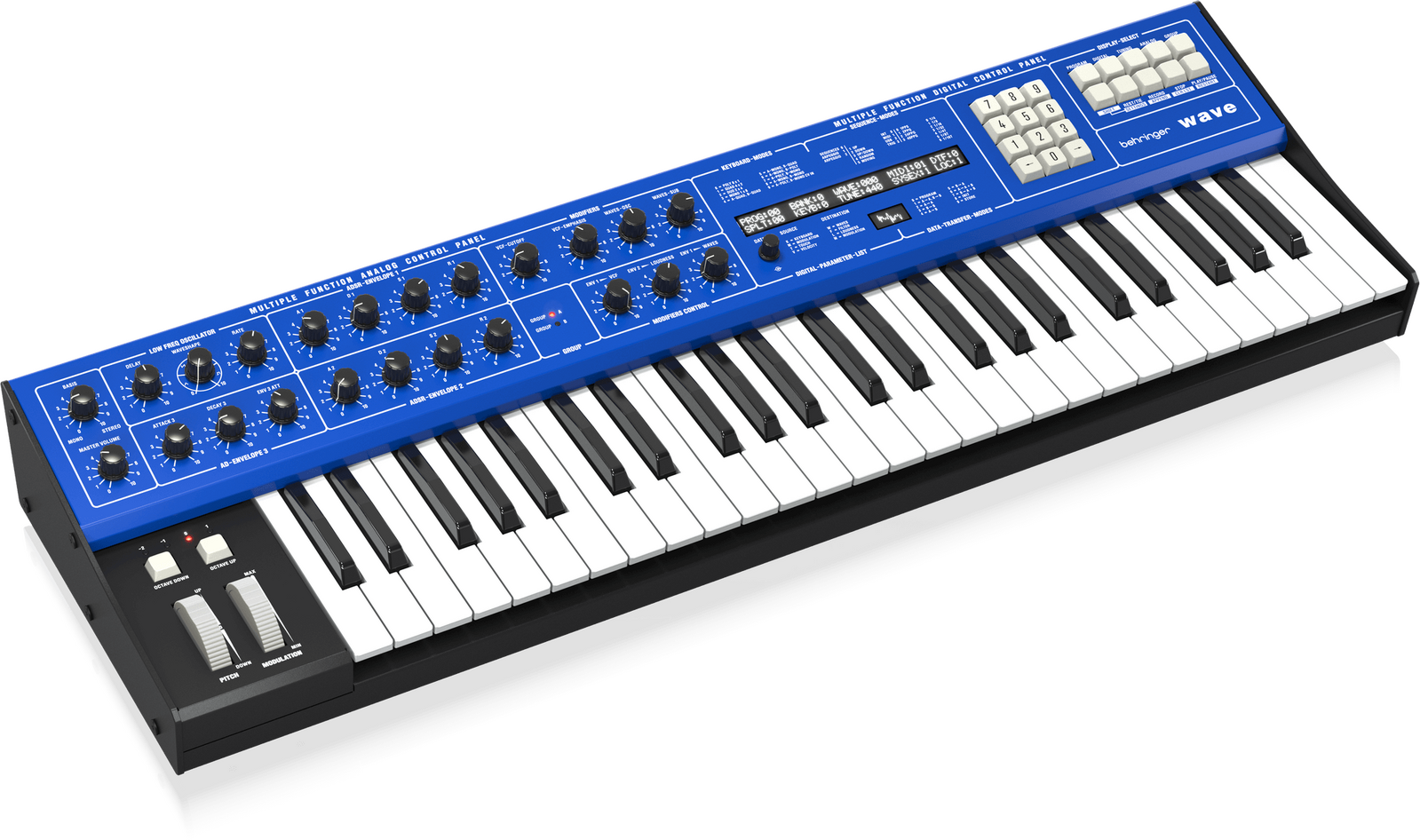

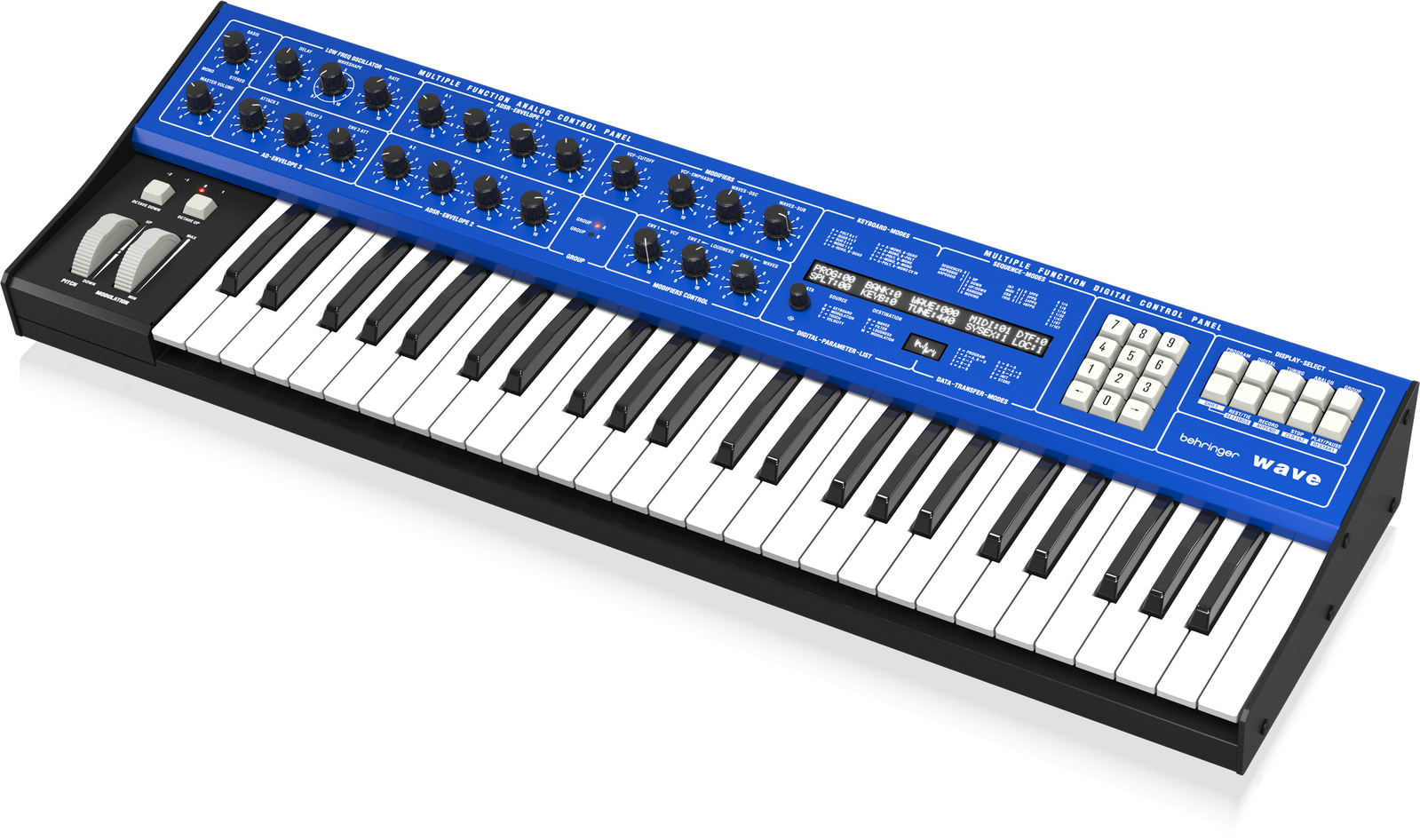

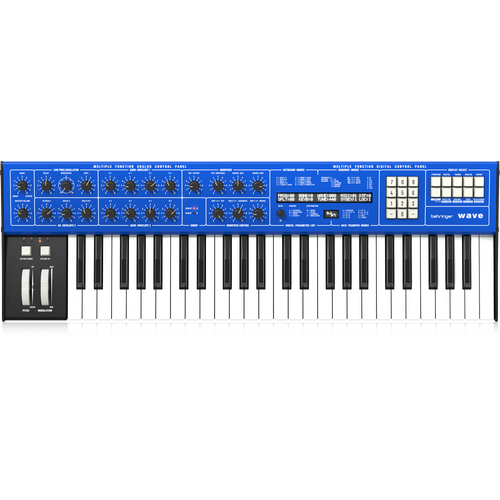

Behringer WAVE

Legendary 8-Voice Multi-Timbral Hybrid Synthesizer with Wavetable Generators and Analog VCF and VCA, LFO, 3 Envelopes, Arpeggiator and Sequencer

Another legend of 80s music is here and it's sure to make its way into your collection. It’s time to ride the Behringer WAVE! Capable of classic 8 or 16-bit resolution wavetable synthesis plus up to 8 configurable voices, the sound of WAVE is synonymous with the sound of the 80s as artists like David Bowie, Jean Michel Jarre and Tangerine Dream, to name a few, used the original to create hits that still resonate today!

FEATURES

• Authentic Wavetable generators and analog VCF and VCA designs based on the PPG* Wave 2.2 and 2.3 from the ’80s

• Classic digital wavetable synthesis with 8 or 16-bit resolution

• Authentic analog signal path based on original VCF and VCA designs

• 8 voices configurable in modes such as splits, layers, and unison

• 30 classic factory wavetables and 64 user-defined wavetables, each comprising 64 waveforms, along with 32 user-defined transients

• Easy import of user wavetables and transients through SynthTribe

• 200 user presets with storable sequence

• Authentic and advanced oscillator modes for versatile sound design

• Manual wavetable control for precise navigation through selected table waves with optional crossfading

• Two ADSR envelopes for shaping the filter, amplifier, or wavetable position

• Additional AD envelope for oscillator pitch modulation or wavetable position control

• LFO for creating vibrato, tremolo, or cyclic wavetable sweeps

• Built-in polyphonic sequencer optimized for both performance and studio applications

• Dual arpeggiator with play modes including up, down, up-down, and random

• 49 full-size keys featuring velocity, aftertouch and polyphonic portamento for expressive playability

• Stereo width control for dynamic voice placement within the stereo field

• Individual audio outputs for all 8 voices to enable external processing per voice

• CV/Gate and Sync In/Out connectivity for seamless integration with external gear

• Expression and sustain pedal support for enhanced performance options

• Comprehensive MIDI implementation for full integration and flexibility

Flexible, Vibrant, Vintage Sounds
WAVE is amazing for creating lush pads, bass and even some bell- or chime-like sounds and that’s all thanks to its 8 highly configurable voices and its classic wavetables with 64 waves each, complemented by and additional 64 fixed sub-oscillator waveforms for added depth. Want to change the characteristics of a wavetable? The 2 ADSR envelopes allow you to sculpt your wavetable just the way you want it. There’s also a dedicated sub-oscillator position control for some extra nuance. And if you wanted to get even more sounds out of WAVE, additional user wavetables and transients can be easily imported via the SynthTribe app, available on both macOS and Windows.

Enhanced Expression
WAVE’s 49 full-size keys, offer the perfect balance between expressiveness and playability. Aftertouch and velocity sensitivity, allow you to shape and modulate your sounds depending on how hard or soft you play.

Additional Features
Built-in polyphonic sequencer, and dual arpeggiator capable of up, down, up-down and random modes

An Amazing Value
Create unique and captivating sounds when you take a ride on the Behringer WAVE, a legendary hybrid synth that we’re sure will make a great addition to setup.

SPECIFICATIONS

Synthesizer Architecture
Type: Hybrid
Number of voices: 8
Type of oscillators: Wavetable
Number of oscillators: 16
Filter: 24 dB lowpass

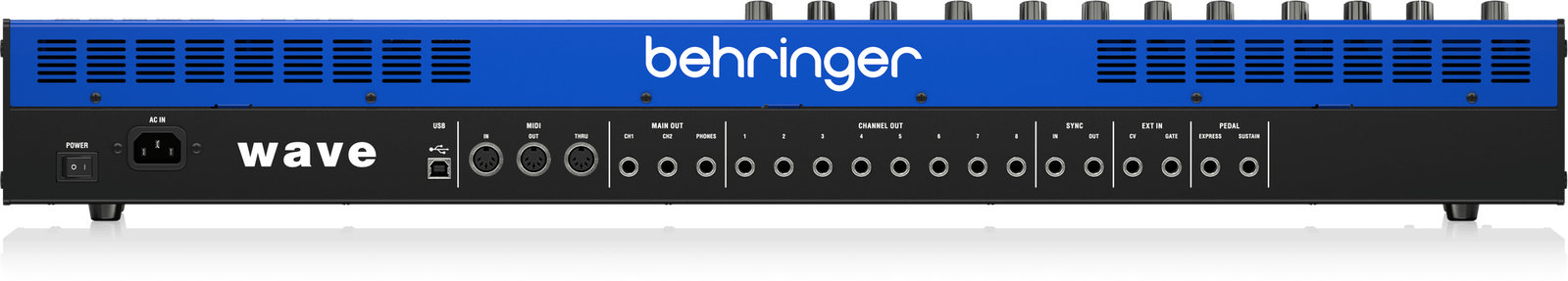

Connectivity
USB (MIDI): USB 2.0, type B
MIDI In/out/thru: 5-pin DIN/ 16 channels
Main Output: 2 x 6.35 mm (1/4") TS, unbalanced, max. +22 dBu
Impedance: 50 Ω
Channel out: 8 x 6.35 mm (1/4") TS, unbalanced, max. +22 dBu
Headphones: 1/4" TRS, stereo, max 25 mW
Impedance: 8 Ω
Sync in: 6.35 mm (1/4") TRS
Sync out: 6.35 mm (1/4") TRS
CV in: 6.35 mm (1/4") TS
Gate In: 6.35 mm (1/4") TS
Expression pedal: 6.35 mm (1/4") TRS – voltage send on tip
Sustain pedal: 6.35 mm (1/4") TS

USB
Type: Class compliant USB 2.0, type B
Supported operating systems: Windows 7 or higher / Mac OS X 10.10 or higher

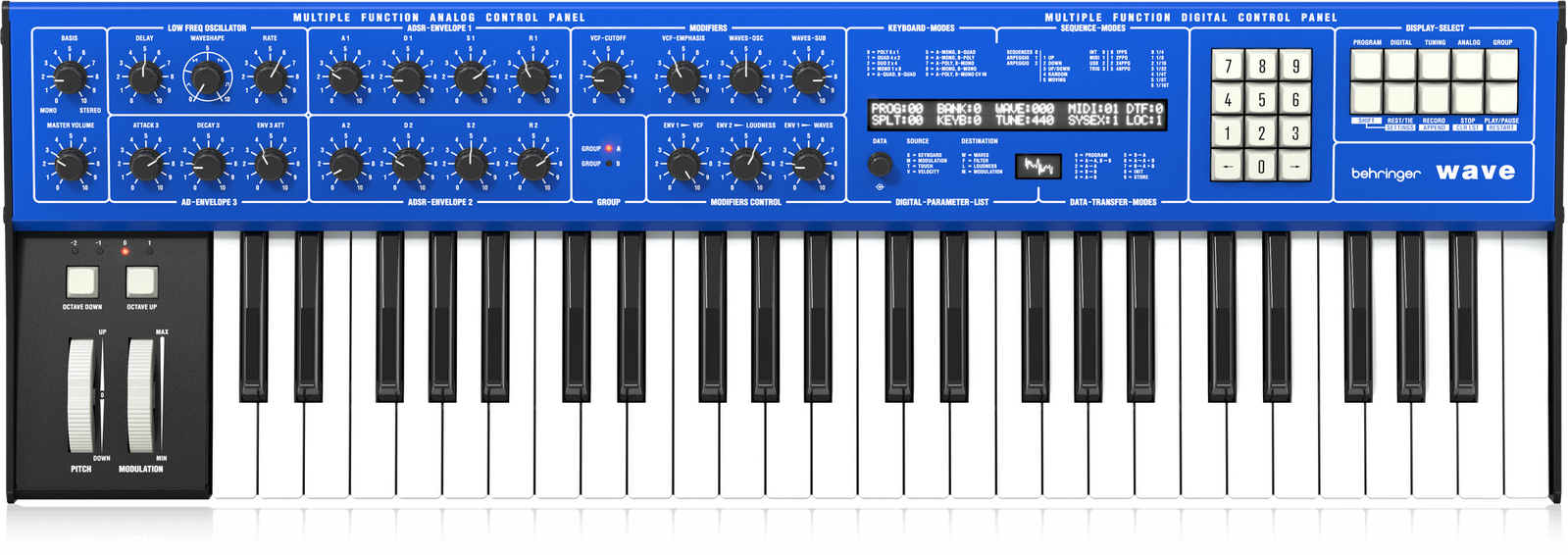

Keyboard and Controls
Keyboard: 49 semi-weighted, full-size keys, velocity and aftertouch
Wheels: Pitch, Modulation
Controls: Octave down / up
LED: Octave -2/-1/0/1

Volume Section
Controls:

• Basis (mono to stereo)

• Master volume

LFO Section
Controls:

• Delay

• Waveshape: triangle, sawtooth, ramp, square

• Rate

ADSR Envelope 1 Section
Controls:

• Attack

• Decay

• Sustain

• Release

Modifiers Section
Controls:

• VCF Cutoff

• VCF Emphasis

• Waves Osc

• Waves Sub

AD Envelope 3 Section
Controls:

• Attack 3

• Decay 3

• Env 3 Att

ADSR Envelope 2 Section
Controls:

• Attack

• Decay

• Sustain

• Release

Modifiers Controls
Controls:

• ENV 1 VCF

• ENV 2 Loudness

• ENV 1 Waves

Display and Controls
Buttons:

• Program, Digital, Tuning, Analog, Group

• Shift, Rest/Tie (Settings), Record (Append), Stop (Clear Last), Play/Pause (Restart)

Numeric Keypad: 0-9, cursor left, cursor right
Digital Encoder: Data Entry Encoder (press to enter)
Main Display: 2 x line, 40-digit LCD display
Secondary Display: 2.5 cm x 1.5 cm OLED
LED: Group A / B

Power Requirements
Mains connector: Standard IEC C13 receptacle
Power consumption: 20 W max
Internal switch-mode PSU: Autorange 100-240 V, (50/60 Hz)

Physical
Standard operating temperature range: 5°C – 45°C (41°F – 113°F)
Dimensions (H x W x D): 112 x 796 x 257 mm (4.01 x 31.34 x 10.12")
Weight: 7.26 kg (16.0 lbs)
