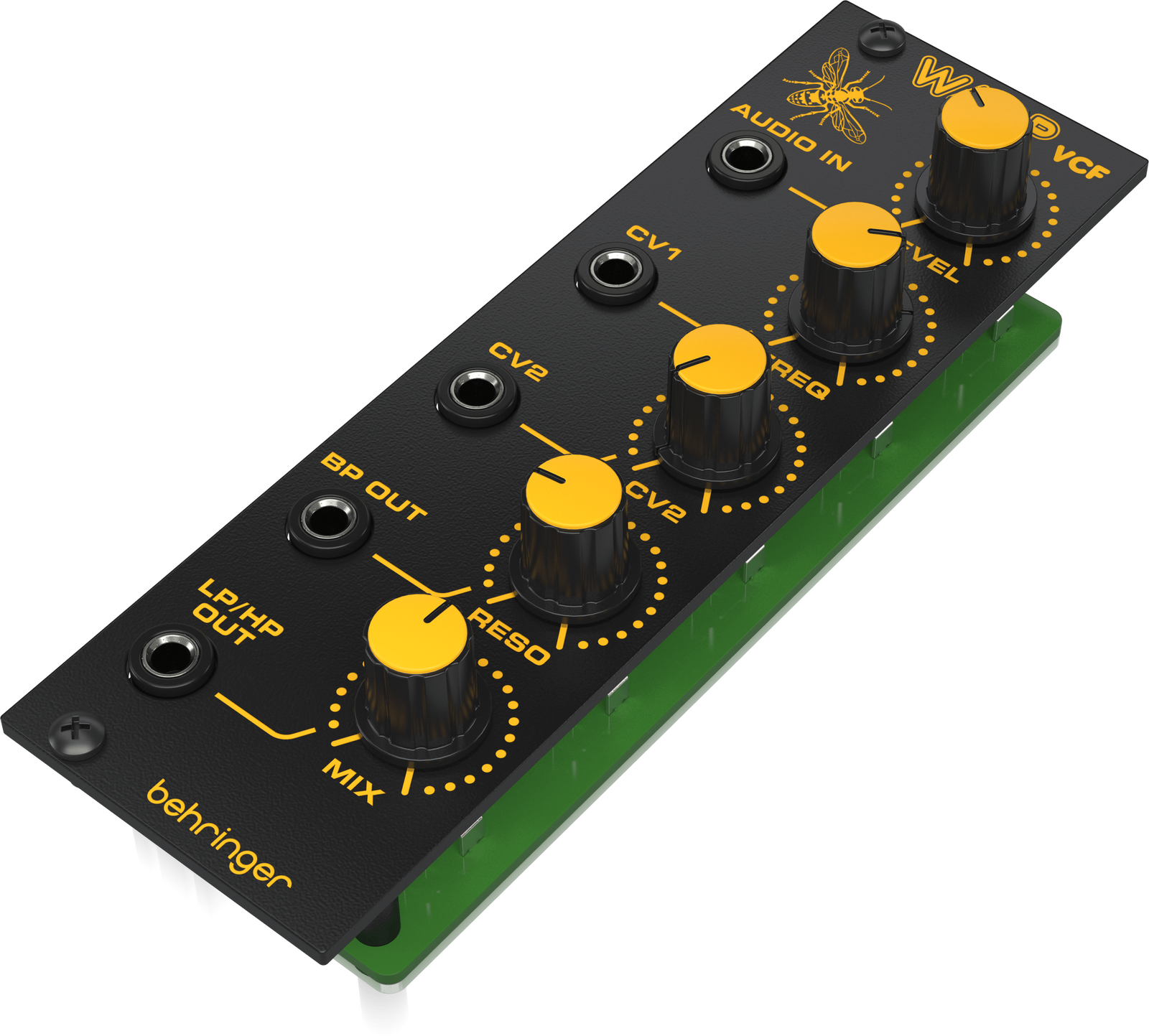

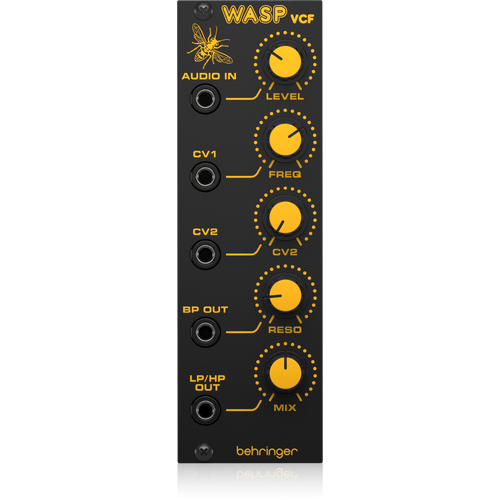

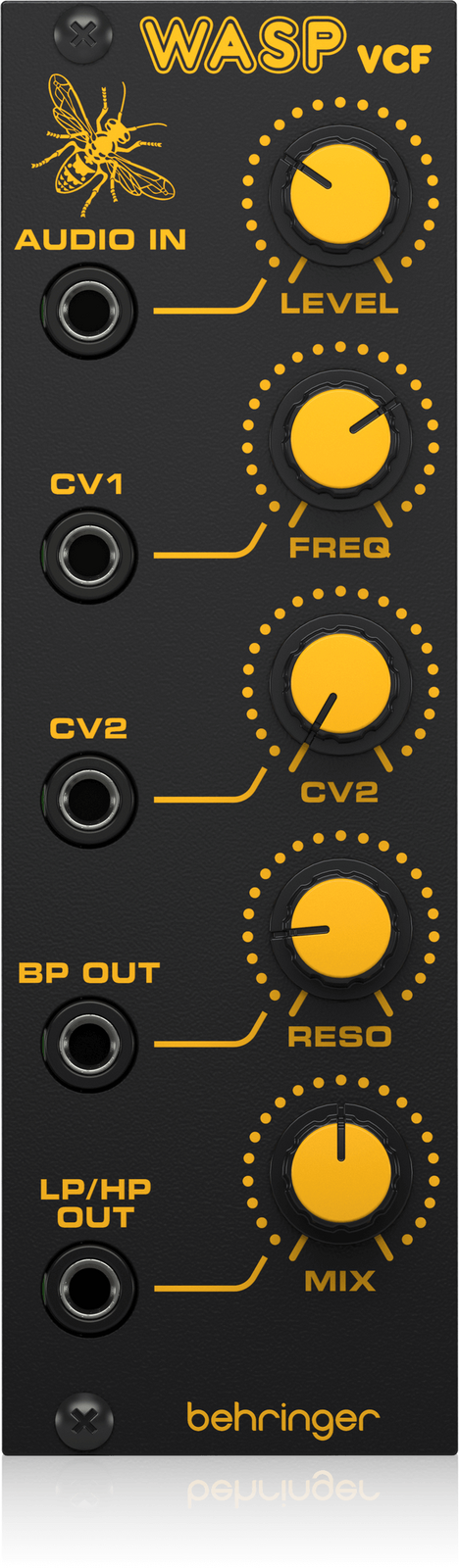

Behringer WASP VCF

Put away that bug spray because the Behringer WASP VCF is one bug you don’t want to get rid of. In fact, we’re pretty sure it’s one you’re definitely going to welcome with open arms!

FEATURES

• Authentic reproduction of the original “Wasp Deluxe” filter from the 70s

• Pure analog signal path based on authentic VCF design

• Multi-mode VCF with Low, High and Band Pass modes

• Eurorack specs: 8 HP, 30 mA +12 V, 10 mA -12 V

Faithful to the Original
The Behringer WASP VCF is an authentic reproduction of the original “Wasp Deluxe” filter from the ‘70s. In fact, we’ve released the full-sized WASP DELUXE a few years back, but this time, we wanted to give you the same capabilities in a compact and easy to install module.

Classic Analog Goodness!
Featuring a pure analog signal path, the WASP VCF includes inputs for audio, CV1 and CV2 with respective Level, Frequency and Attenuation controls.

Mix it Up!
The WASP VCF also includes a separate band pass output with a corresponding Resonance control to emphasize specific frequencies, as well as a mixed low and high pass output with its mix control so you can blend both the Low Pass and High Pass together.

Eurorack Ready
The WASP VCF is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the WASP VCF to be mixed with other synth modules for a truly unique set up.

SPECIFICATIONS

Inputs
CV 1: 3.5 mm TS jack, -5 V to + 5 V range, impedance 50 kΩ
CV 2: 3.5 mm TS jack, -5 V to + 5 V range, impedance 50 kΩ
Audio: 3.5 mm TS jack, 5 V peak to peak, impedance 50 kΩ

Outputs
BP: 3.5 mm TS jack, DC coupled, impedance 1 kΩ
LP/HP: 3.5 mm TS jack, DC coupled, impedance 1 kΩ

Controls:

• Audio Level

• Frequency

• CV 2 Amount

• Resonance

• LP/HP mix

• Select </Freq

Power Requirements: 30 mA (+12 V) / 10 mA (-12 V)

Physical
Standard Operating Temperature: 5° C to 40° C (41° F to 104° F)
Dimensions (H x W x D): 129 x 40 x 39 mm (5.06 x 1.59 x 1.55")Eurorack: 8 HP
Weight: 70 g (2.47 oz)
