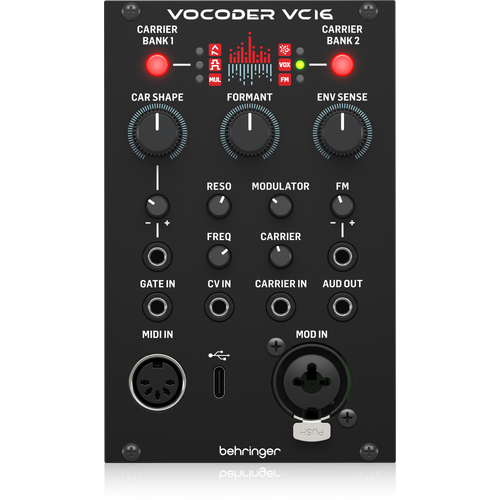

Behringer Vocoder VC16

Start warming up your voice and get ready to robot-rock! The Behringer VOCODER VC16 combines six powerful synthesis engines with amazing polyphony and versatile oscillators and is sure to bring something new and exciting to your synth setup!

FEATURES

• Amazing Vocoder with powerful oscillators and 3 voices of total polyphony

• 6 digital oscillators, encompassing analog modeling, noise, FM, and Vox

• 4 controls for precise vocoder response and sound modeling

• Specially crafted synthesis models tailored for Vocoder applications

• Carrier shape control facilitating complex synthesis

• External carrier input with adjustable level control

• Line/mic modulator input featuring level control

• MIDI input for effortless interfacing with other instruments

• USB connector for seamless firmware updates

• Eurorack specs: 16 HP, 100 mA +12 V, 20 mA -12 V

6 Digital Oscillators
The heart of the VC16 is its six digital oscillators that include triangle/ramp, square/pulse, multiple wave, noise, vox and FM across two carrier banks. These can be tweaked with the Carrier Shape control along with the Shape CV Attenuverter.

More Controls
Additional sound shaping options include:

• Formant

• Envelope Sense

• Resonance

• Cutoff

• Modulator

• Carrier

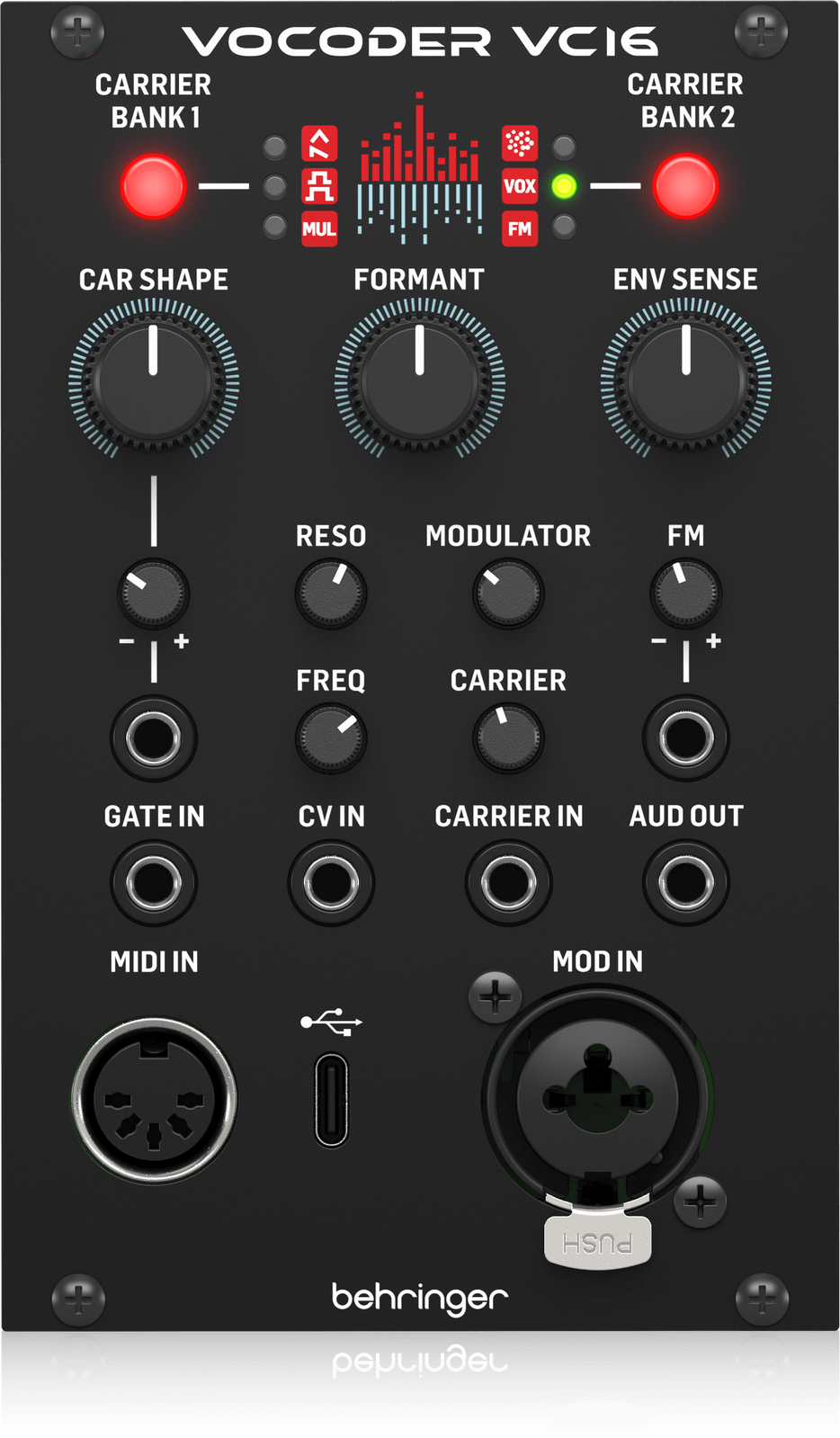

Ins and Outs

• MOD IN – this 3-pin XLR/1/4'' TS jack allows you to plug in a mic or line level source

• MIDI IN – for interfacing with other MIDI equipped instruments

• GATE IN – trigger the envelope generator from an external source

• CV IN – control the carrier frequency from an external source

• AUD OUT – output VC16 audio at Eurorack level

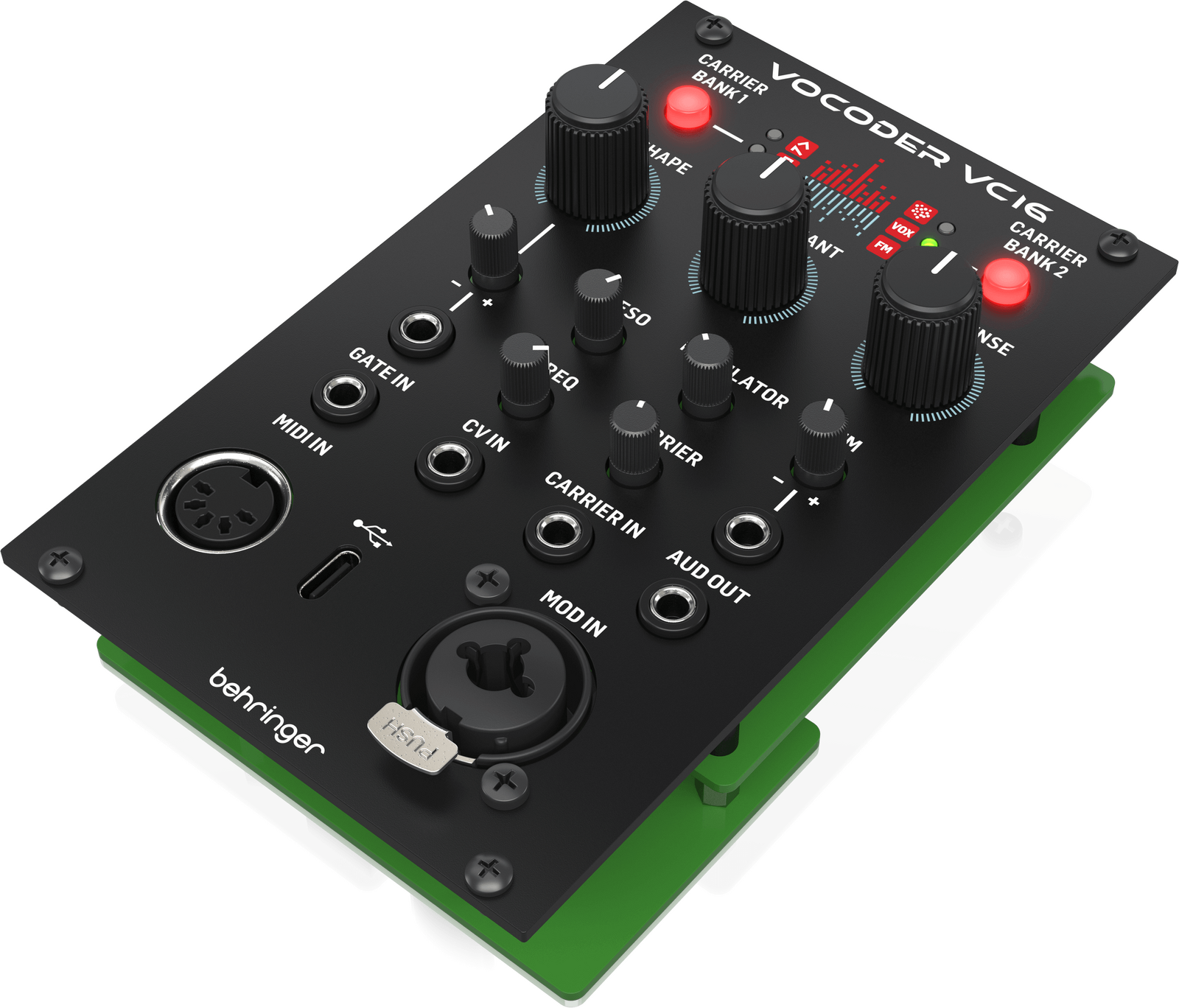

Eurorack Ready
VOCODER VC16 is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. Mix VOCODER VC16 with other modules in your setup and start creating unique sequences that add a whole new dimension to your sound.

SPECIFICATIONS

Carriers
Buttons: Carrier Bank 1, Carrier Bank 2
Controls: Carrier Shape, Formant, Envelope Sensitivity, Carrier Shape CV attenuverter, Carrier In attenuverter
Inputs:

• Carrier Shape CV (3.5 mm TS jack, range -5 V to +5 V, 100 kΩ impedance)

• Carrier In (3.5 mm TS jack, 100 kΩ impedance)

• Carrier In (3.5 mm TS jack, 100 kΩ impedance)

• CV In (3.5 mm TS jack, range -3 V to +7 V, 100 kΩ impedance)

• Gate In (3.5 mm TS jack, range -3 V to +7 V, 100 kΩ impedance)

Modulator
Controls: Input level
Inputs: Combined XLR/6.35 mm (1/4") TS unbalanced jack (100 kΩ impedance)

Frequency Modulation
Controls: FM In attenuverter
Inputs: FM In (3.5 mm TS jack, range -8 V to +8 V, 100 kΩ impedance)

MIDI
Inputs: MIDI In (5 pin DIN)

USB
Inputs: USB Type C

Output
Audio Out: (3.5 mm TS jack, 100 kΩ impedance)

Power Requirements
Eurorack: Current Draw 100 mA (+12 V) / 20 mA (-12 V)

Physical
Dimensions (W x H x D): 80.96 x 52.8 x 128.5 mm (3.19 x 2.09 x 5.06")
Eurorack units: 16 hp
Weight: 167.5 g (5.91 oz)
