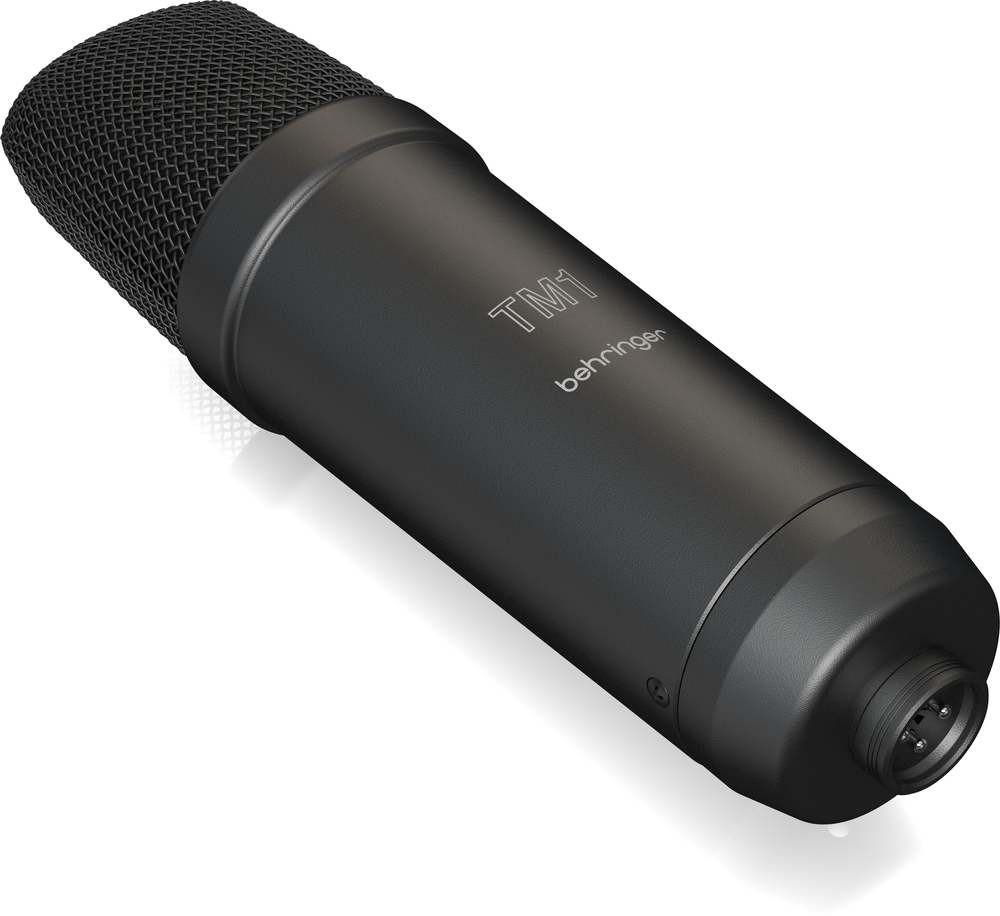

Behringer TM1 Dark Edition

The large-diaphragm TM1 Condenser Microphone is designed to capture your sounds with incredible realism, sensitivity and accuracy. Featuring premium-grade electronic components and a pure gold-plated diaphragm capsule, the TM1 captures pristinely clear audio via its cardioid pickup pattern design and wide 132 dB dynamic range. This versatile microphone is well suited for a variety of applications ranging from recording studios to broadcast stations. Rounding out the package is a heavy duty shock mount with integrated pop shield, a dedicated dust cover, and a 20' (6 m) professional grade microphone cable.

FEATURES

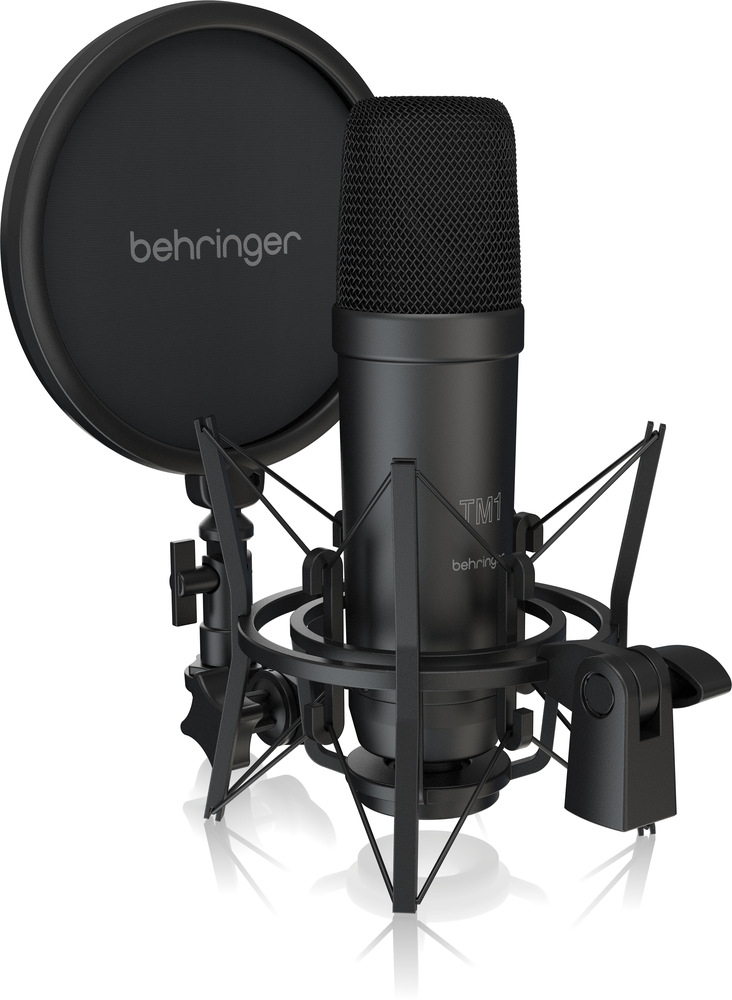

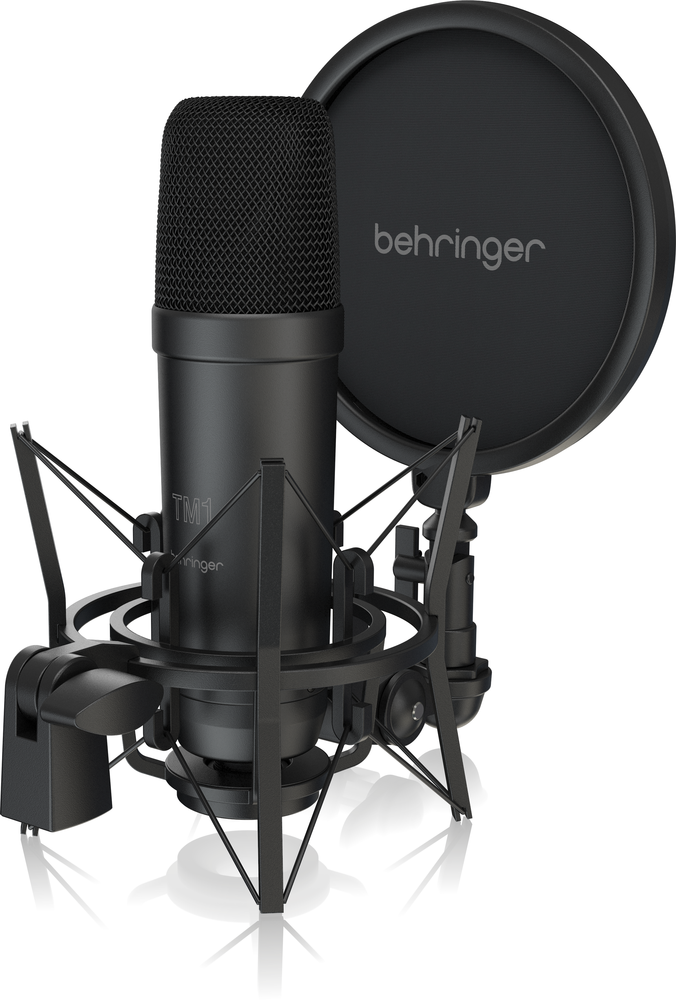

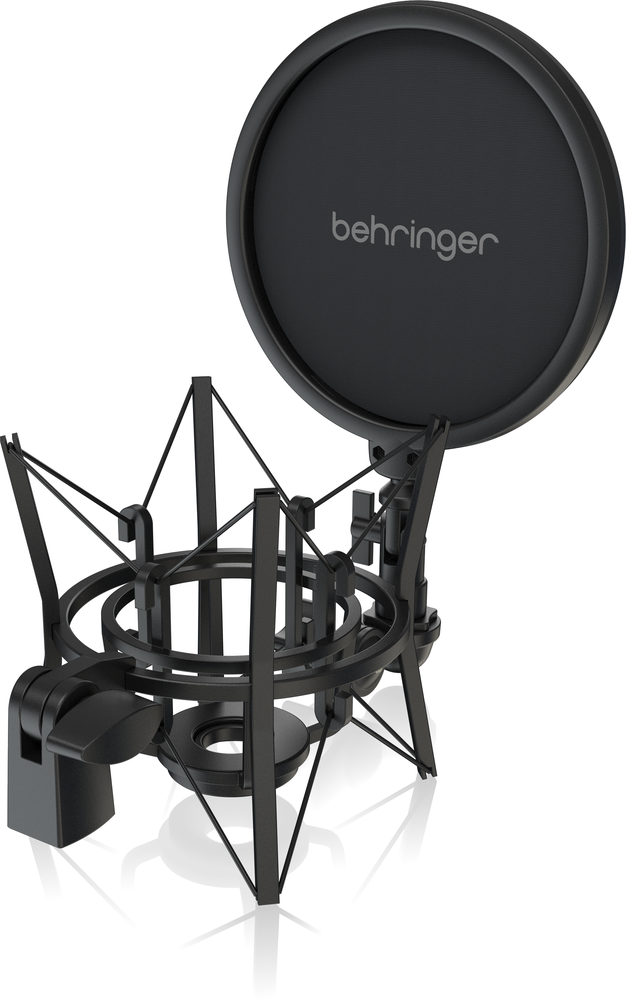

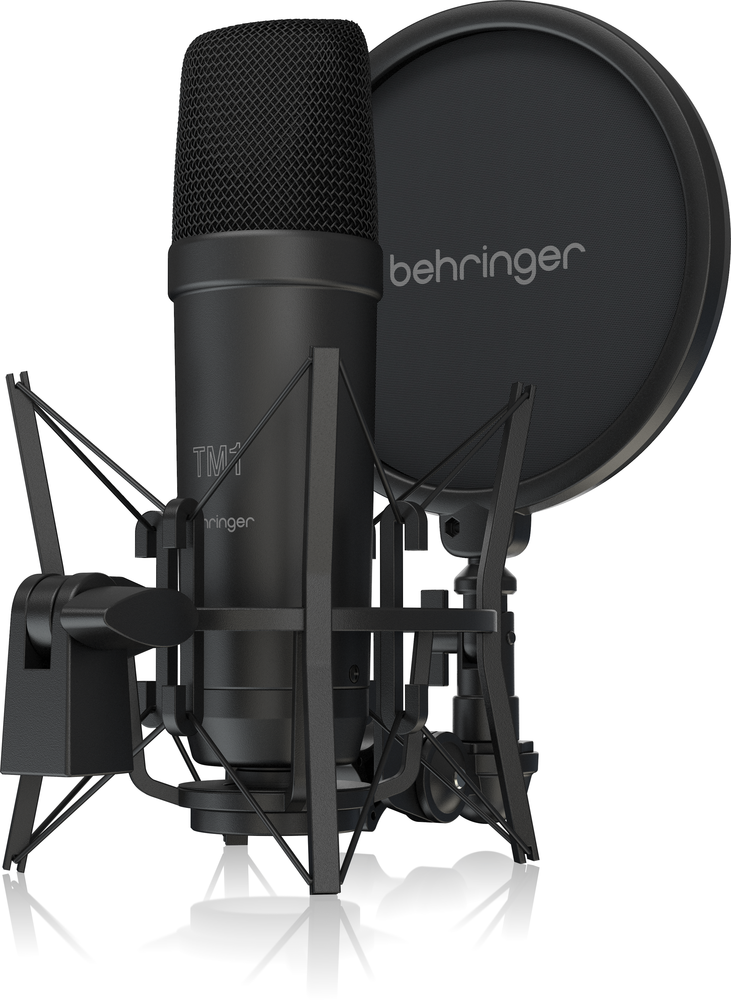

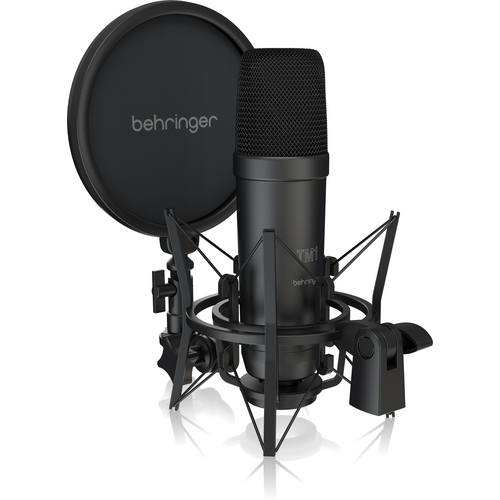

• Package of TM1 microphone, shock mount with integrated pop shield, 20' (6 m) XLR cable and dust cover

• Premium large condenser microphone capsule with 1" gold plated diaphragm

• Internal shock mounting for microphone capsule

• Fixed cardioid polar pick-up pattern

• Ultra-low noise design

• Extremely quiet preamplifier design with transformer-less output stage

• +48 V phantom powering for wide dynamic range

Why a Condenser Mic?
Condenser microphones are the ideal choice for capturing vocals and acoustic instruments and are the primary type of microphone used in recording studios and radio stations. The TM1 mic is capable of capturing much more detail than most dynamic microphones because of its wider and flatter frequency response. Another difference between condenser and dynamic mics is they contain active circuitry that requires phantom power (+48 V) for operation. You can power your TM1 using any phantom power equipped mixing console.

Large Gold Plated Diaphragm
The TM1 condenser microphone is the affordable, premium-quality way to get what you really hear into your recorder or computer DAW. Thanks to the pressure gradient transducer and internally shock-mounted 1.0" gold-sputtered large diaphragm capsule, the TM1 mic delivers an open transparent sound with excellent transient response, and large frequency response from 20 Hz - 20 kHz. Its cardioid pickup pattern is superb for capturing the most subtle vocal or instrumental nuance, while rejecting undesirable off -axis sounds.

Ultra Low Noise
Clean and ultra-quiet operation is the hallmark of any great microphone, and the TM1 comes through with virtually noise-free transmission via its exceptional transducer and gold-plated XLR output. Add an onboard state-of-the-industry preamplifier with transformer-less output stage, and your sound source is delivered with unparalleled accuracy and transparency.

Complete Recording Package
The TM1 is designed to be your go-to studio microphone for years and years to come. An excellent choice for both live and studio applications, you get the professional-grade TM1, heavy duty shock mount with pop filter, and a 20' (6 m) microphone cable. Just add the talent and your mic stand – and you are ready to track.

SPECIFICATIONS

Capsule: 34mm (1.33 inch)
Acoustic principle: Pressure gradient
Directional pattern: Cardioid
Electronics: JFET preamplifier with bipolar output stage
Frequency range: 20 Hz - 20 kHz
Sensitivity: -34 dB ± 2 dB @ 1 kHz (0 dB)
Equivalent noise: 4.5 dBA SPL (per IEC 651)
Maximum input: 138 dB @1 kHz (≤ 1% THD)
Dynamic range: >132 dB (per IEC 651)
Maximum SPL: 138 dB @1 kHz (≤ 1% THD)
SNR: 88.5 dB SPL @ 1 kHz, (relative to 1 Pa, per IEC 651)
Power requirement: +48 V phantom power
Output impedance: 100 Ohms ±30% @ 1 kHz
Output connection: 3 pin XLR, balanced output between Pin 2 (+), Pin 3 (-) and Pin 1 (ground)
Dimensions: 54 x 189 mm (2.1 x 7.4")
Net weight: 354 g (0.8 lbs)
