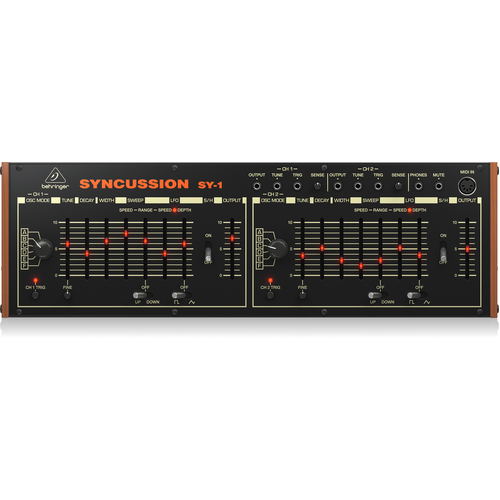

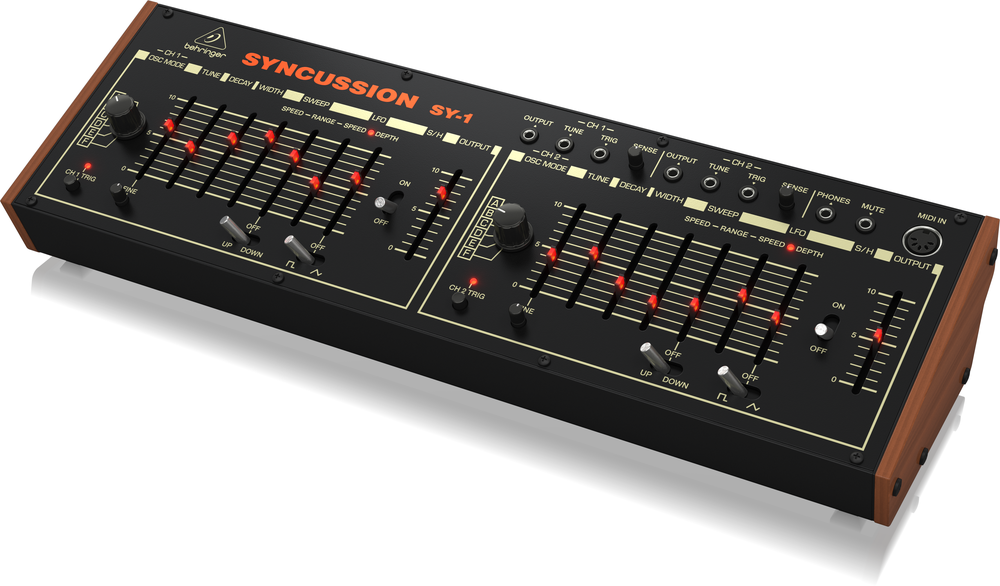

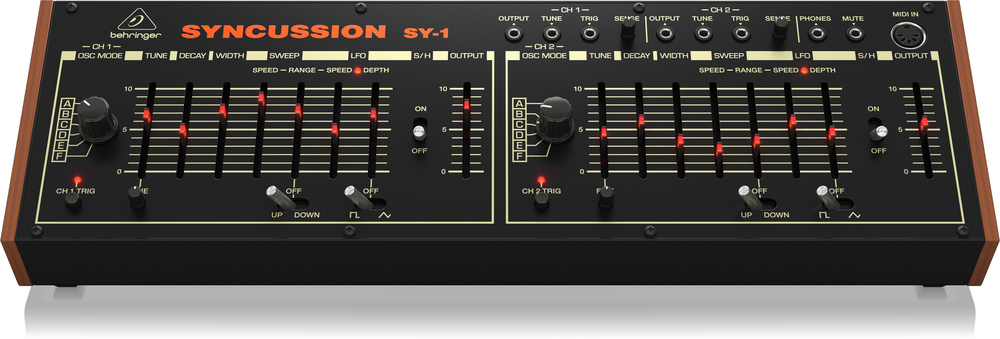

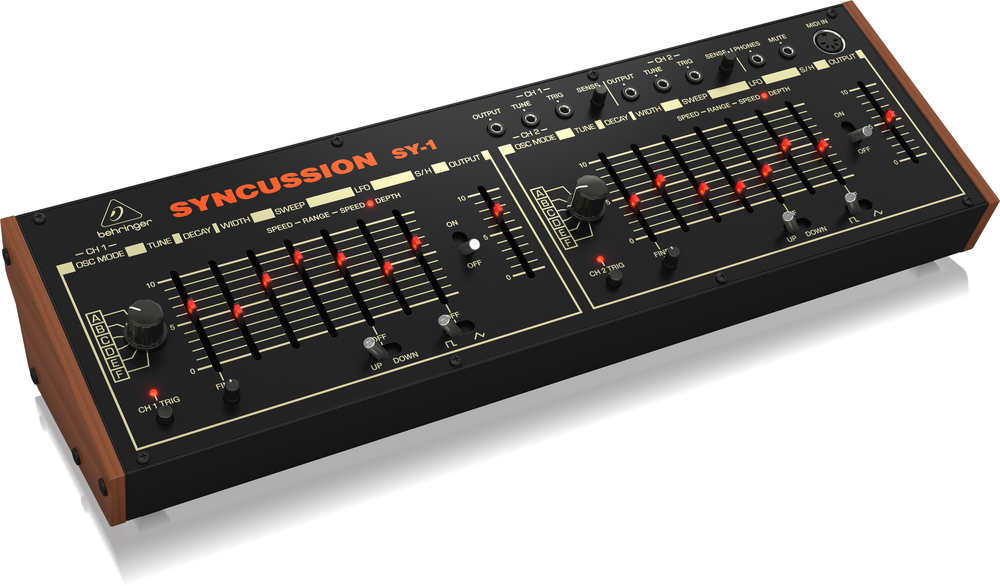

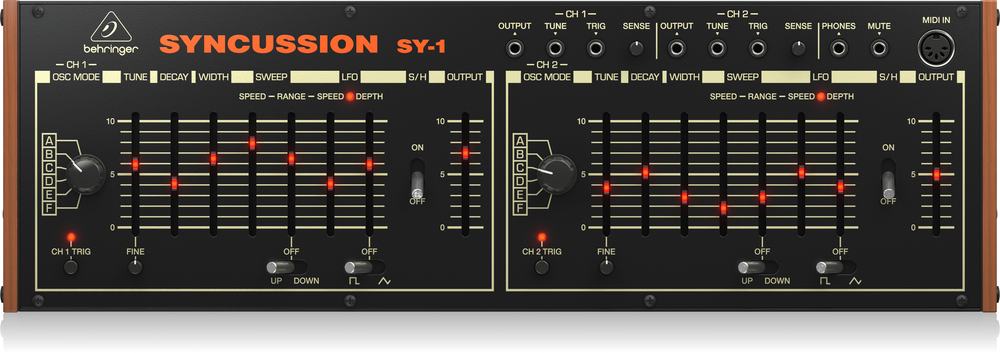

Behringer Syncussion SY-1

Classic Dual Analog Percussion Synthesizer with 6 Oscillator Modes and Eurorack Format

Experience the legendary sound and feel of a classic analog percussion synth with the Behringer SYNCUSSION SY-1. Based on the classic dual analog percussion synthesizer from the ’70s, The original has been used by legendary artists such as Prince, Kraftwerk, and Herbie Hancock. Now, you can have the same dynamic and iconic sound without burning a hole in your pocket!

FEATURES

• Classic dual analog percussion synthesizer from the 70s

• Authentic reproduction of original Pearl Syncussion SY-1 circuitry

• 6 oscillator modes featuring single oscillator, FM, dual oscillator mix, dynamic oscillator mix, FM/noise mix and pure noise

• Tune, decay and filter cutoff controls for a wide range of percussive sounds and effects

• Pitch sweep with speed, range and up/down controls for dramatic pitch dives and rises

• LFO with square and triangle waves for unique vibrato effects

• Sample and hold control for random pitch changes with each hit

• 30 controls give you direct and real-time access to all important parameters

• Complete Eurorack solution – main module can be transferred to a standard Eurorack case

• Comprehensive MIDI implementation with MIDI channel and Voice Priority selection

Tune the Beat
The SY-1 offers six oscillator modes, each with a different character and timbre. You can choose from single oscillator, FM, dual oscillator mix, dynamic oscillator mix, FM/noise mix, and pure noise. Each mode can be shaped by adjusting the tune, decay, and filter cutoff controls. This allows you to create a wide range of percussive sounds and effects, from deep kicks and snappy snares to metallic clangs and sci-fi zaps. The SY-1 can also be triggered using drum pads, a drum machine like the Behringer RD-8 or any other external triggers.

Dynamics at Your Fingertips
Movement and dynamics are important in creating exciting rhythms which is why the SY-1 also features a pitch sweep function, which lets you create dramatic pitch dives and rises with speed, range, and up/down controls to create special effects and transitions. Additionally, the SY-1 has an LFO with square and triangle waves, which can modulate the pitch or the filter for unique vibrato effects.

Eurorack Ready
The SY-1 is designed to fit into a standard Eurorack case and can be integrated with other modules to expand its sonic possibilities or be placed alongside other instruments for a truly unique setup. Just connect the power cables to the power supply and mount the module using the included screws.

An Amazing Value
The SY-1 is a faithful recreation of a rare and highly sought-after instrument. Now, you can own a piece of history and enjoy the same iconic sound and feel by getting your very own Behringer SYNCUSSION SY-1 today!

SPECIFICATIONS

Synthesizer Architecture
Number of Voices: 2
Type: Analog
Oscillators: 2 VCO
LFOs: 2 LFO
VCFs: 2 LPF
Envelopes: Decay only

Connectivity
Power switch: Push button on/off (rear panel)
MIDI In: 5-pin DIN / 16 channels
USB: USB 2.0 Type B
Headphones: 3.5 mm TRS, stereo, 5 mW 32 Ω

USB
Type: Class compliant USB 2.0, Type B
Supported operating systems: Windows 7 or higher, Mac OSX 10.10 or higher

Oscillator Sections
Switches: OSC Mode x 2
Controls: Tune x 2
External Inputs: Tune x 2

Envelope Sections
Switches: Trigger x 2
Controls: Decay x 2, Sensitivity x 2
External Inputs: Trigger x 2, Mute
LEDs: Trigger x 2

Filter Sections
Controls: Width x 2, Sweep Speed x 2, Sweep Range x 2
Switches: Sweep Up / Down / Off

LFO Sections
Controls: Speed x 2, Depth x 2
Switches: Waveform: square / triangle / off, Sample & Hold on / off

Output Sections
Controls: Output level x 2
Sockets: CH1 out / CH 2 out x 2, Headphone out
