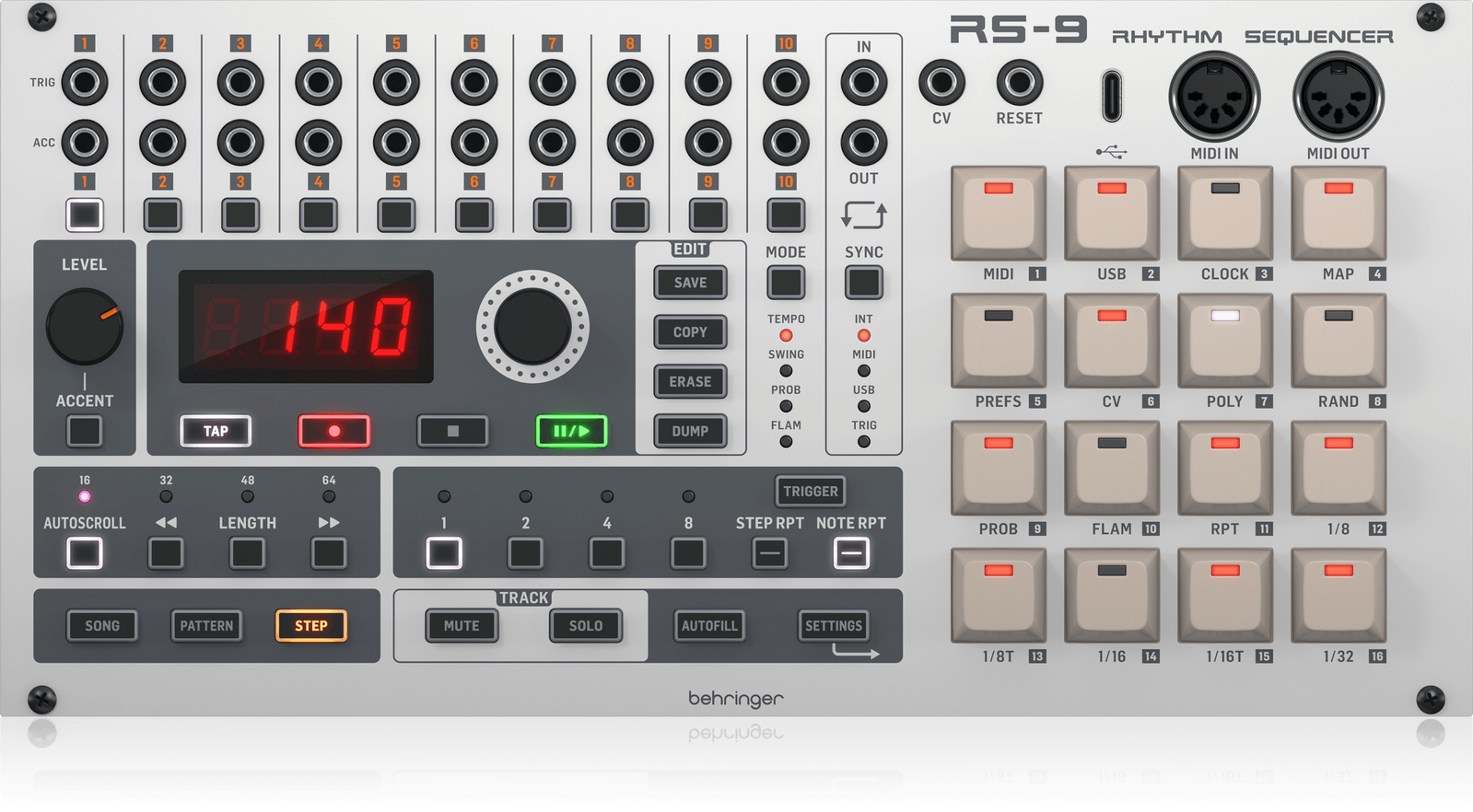

Behringer RS-9

Rhythm Sequencer Module with 64-Step Sequencer and 10 Drum Channels for Eurorack

Become a master beat-maker with the Behringer RS-9! Great for making rhythms on the fly, RS-9 includes: 10 drum channels and a 64-step sequencer.

FEATURES

• Amazing rhythm sequencer based on RD-9, specifically designed for live performance

• 10 drum channels with additional parameters and global accent capability

• 10 trigger, 10 accent and 1 CV outputs to control external sound modules

• Powerful 64-step drum sequencer supports poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo

• Live recording, editing and playback of CV automation

• Storage of up to 16 songs and 256 patterns, all of which can be imported/exported during playback for unlimited songs and patterns

• Pattern Mode allows arrangement of patterns into full songs and setting number of repeats per song part

• Song Mode allows chaining songs together for live sets and expanded compositions

• Unique Auto Scroll feature enables improvisation in all modes

• Comprehensive MIDI In/Out plus USB implementation for synchronization and connection to external devices

• Sync options include USB, MIDI, Clock and Internal for maximum versatility

• Encoder for editing parameters such as Tempo, Swing, Probability, Flam

• High-visibility LED display for easy editing of program parameters

• Eurorack specs: 52 HP, 350 mA +12 V, 20 mA -12 V

Complete Control
The RS-9 boasts features that work great for live beat creation in each of the sequencer modes including step repeat, note repeat, real-time triggering and live step-overdubbing. This makes it easy to enable recording in pattern mode, so you can build song structures on-the-fly and switch back to playback mode at the touch of a button.

Powerful and Feature-Rich Sequencer
The RS-9 features a powerful 64-step sequencer. Store up to 64 patterns and 16 songs with a continuously variable swing allowing you to mimic a real drummer and give the beats you create a more human feel.

Additional Features
Pattern Mode – arrange full songs and set the number of repeats
Song Mode – chain together songs for live sets
Auto Scroll – improvise in all modes

Eurorack Ready
RS-9 is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows it to be mixed with other synth modules for a truly unique set up.

An Amazing Value
Ready to make beats and rhythms like never before? The Behringer RS-9 today is a great addition to your setup and is sure to help you get the crowd bouncing! Get yourself an RS-9 today!

SPECIFICATIONS

Inputs
MIDI In: 5 pin DIN
USB In/Out: USB-C

Reset In

• Type: 3.5 mm TS jack, DC coupled

• Max input: level 10 V

Sync In:

• Type: 3.5 mm TRS jack, DC coupled

• Max input level: 10 V

Outputs
Trigger Out:

• Type: 10 x 3.5 mm TS jack, DC coupled

• Impedance: 1 kΩ, unbalanced

• Max output level: 10 V p-p

Accent Out:

• Type: 10 x 3.5 mm TS jack, DC coupled

• Impedance: 330 Ω, unbalanced

• Max output level: 10 V p-p

Sync Out:

• Type: 3.5 mm TRS jack, DC coupled

• Impedance: 220 Ω, unbalanced

• Max output level: 5 V p-p

MIDI Out: Type: 5 pin DIN

Controls:

• Knobs

• Accent Level, Multi-function

Buttons:

• Track Select x 10

• Accent

• Tap, Record, Stop, Play/Pause

• Autoscroll, <<, Length, >>

• Song, Pattern, Step

• Save, Copy, Erase, Dump

• Mode, Sync

• Trigger, Step Repeat, Note Repeat,

• 1, 2, 4, 8

• Track Mute, Track Solo

• Autofill, Settings

• MIDI, USB, Clock, Map, Prefs, CV, Poly,

• Rand, Prob

• Flam, Repeat, 1/8, 1/8T, 1/16, 1/16T, 1/32

• 4 character 7 segment LED
