Behringer Powerplay P16-HQ Mixer

The Behringer P16-HQ builds on the success of P16-M, an industry favorite, with its new high-quality D-A converter, output amplifier, a design refresh and more! The P16-HQ is a great and affordable way to give performers control over their own monitor mix; leaving room for engineers to create the best overall mix possible.

FEATURES

• Easily create highest-quality personalized monitor mixes from 16-channel input stream

• Excellent new 114 dB D/A converter for noise free output even at high levels

• New high-quality output amplifier stage for improved volume with low-impedance headphones and in-ears

• Intuitive control surface with total recall and presets for custom mixes

• 16 backlit channel select buttons for immediate access

• Level and Panorama/Balance control with LED indicators

• 3-band EQ per channel and main with adjustable mid-band frequency

• Solo and Mute functions per channel and main

• Output limiter for hearing protection

• Additional mono/stereo line output for active monitor speakers

• Single Ultranet CAT5e connection delivers power and 16 signals to personal mixers

• For larger setups, P16-HQ can be daisy-chained or connected to P16-D hubs

• Phantom powered via Ultranet or with external DC power supply (included)

• Ultra-low system latency of less than 1 millisecond

• Mounts securely on a mic stand with P16-MB (not included)

• MIDI input allows real-time remote control from external MIDI devices

• Fully compatible with Behringer P16-M personal mixers

Flexible and Full of Character
The P16-HQ includes a new digital-to-analog converter with a dynamic range of 114dB, coupled with a new high-quality amplifier stage providing improved performance and volume, especially with low-impedance headphones and in-ears.

Complete Control

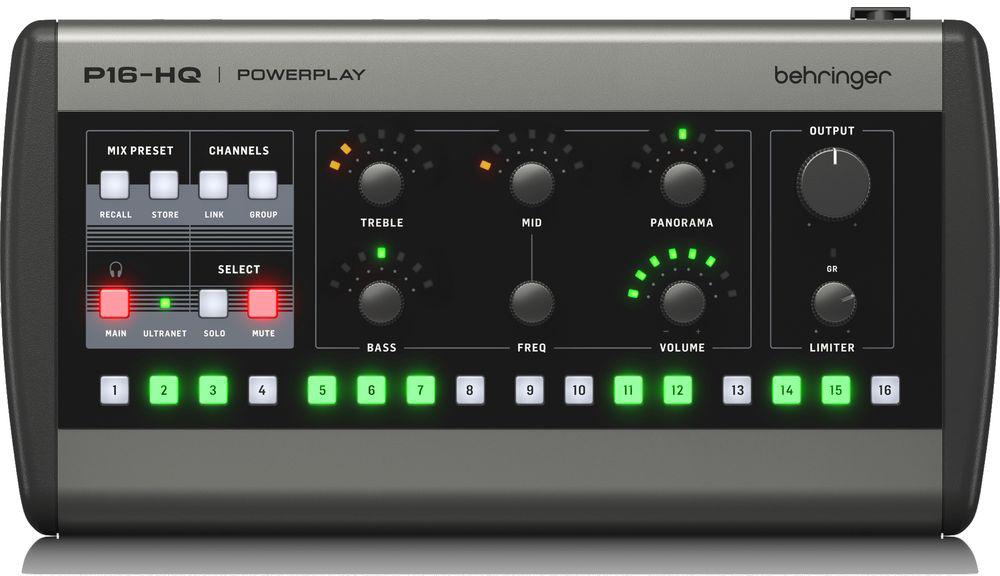

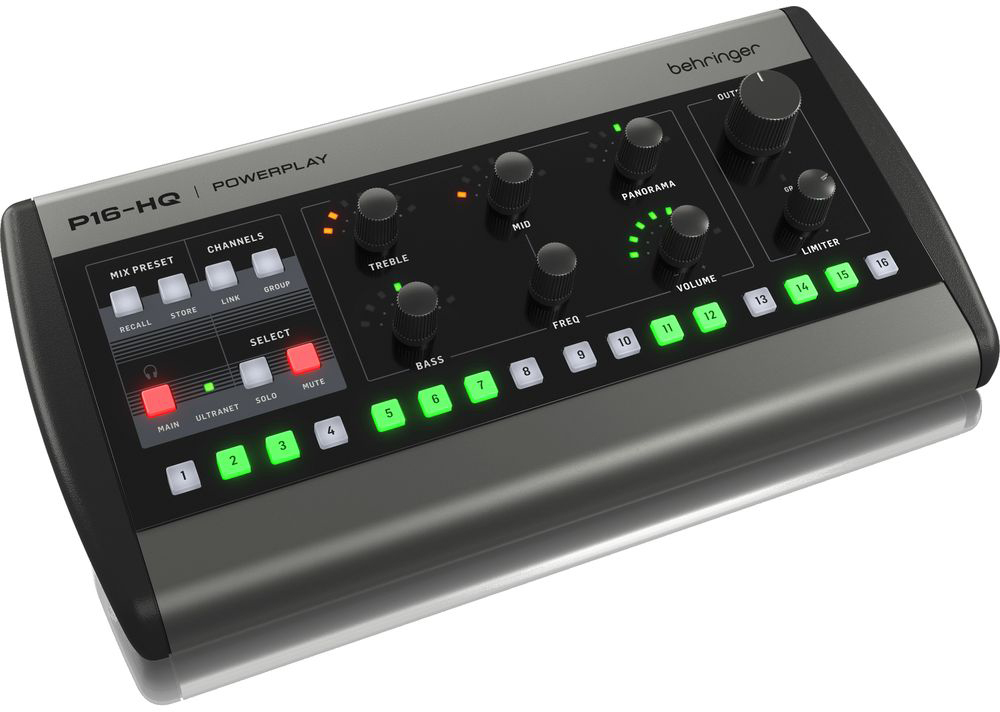

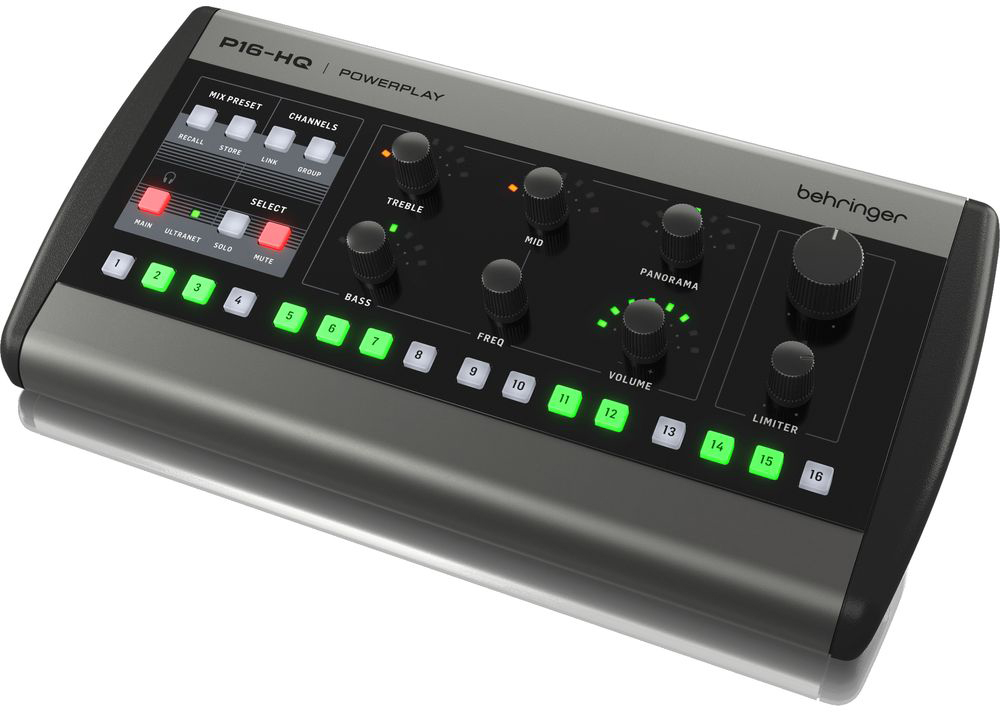

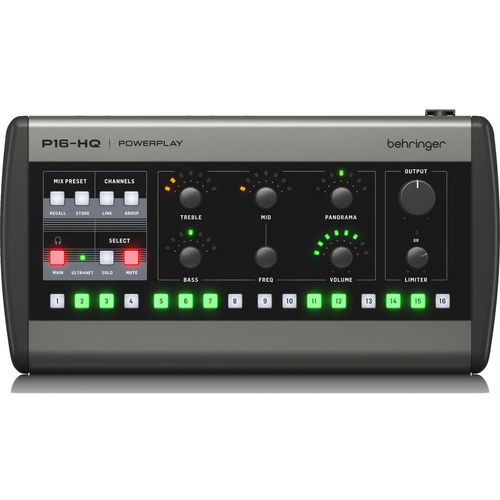

The P16-HQ sports a new look while maintaining the intuitive control surface that made P16-M so popular! All surface controls such as the 16 channel buttons, level, pan/balance controls have their own backlighting and LED indicators. All knobs and buttons are easily visible thanks to the backlighting and LED indicators added across the control surface. This allows the user to adjust on-the-fly, even on a dimly lit stage.

Additional Features
Controls on the P16-HQ include:

• Level and Panorama/Balance

• 3-band EQ per channel

• Adjustable mid-band frequency on main channel

• Solo and Mute functions per channel

Amazing on Stage
Setting up a stage and making sure everything is getting the right amount of power can be tricky but having the P16-HQ makes this process a breeze as it comes equipped with Ultranet technology. With Ultranet, you can send up to 16 independent channels as well as power! If your setup requires many personal monitors, having multiple P16-HQs can make that process easier.

SPECIFICATIONS

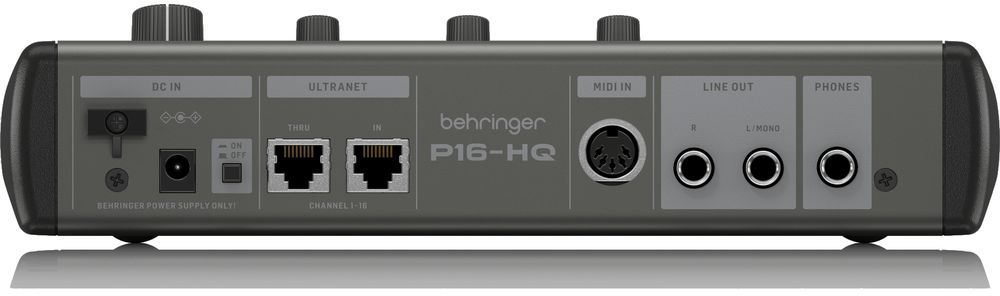

Audio Connections
Phones: 1/4" TRS, stereo
Line out: 2 x 1/4" TS, unbalanced
Ultranet Thru / In: 2 x RJ45
MIDI in: 5-pin MIDI connector

Performance Line Out
Frequency response: 20 Hz - 20 kHz (+0 / -0.5 dB)
THD+N: 0.002 % typ.
Residual noise: -99 dBu unweighted / -102 a-weighted
Crosstalk L / R: <-75 dB
Output impedance: 1 kΩ
Max. output level: +12.5 dBu @ 200 kΩ load / +2,7 dBu @ 600 Ω load

Performance Phones Out
Frequency response: 20 Hz - 20 kHz (+0 / -0.1 dB)
THD+N: typ. 0.002 % / 0.007 % @ / 350 mW output power
Residual noise: -94.5 dBu unweighted / -97.5 dBu A-weighted
Crosstalk L / R: <-90 dB
Max. output level

• 50 mW @ 600 Ω load

• 100 mW @ 300 Ω load

• 400 mW @ 30 Ω load

Controls
Equalizer
Bass: ±12 dB @ 100 Hz, shelving
Mid: ±12 dB, semi-parametric
Frequency: 100 Hz to 10 kHz, adjustable
Treble: ±12 dB @ 10 kHz

Output
Limiter: Ratio ∞: 1
Level: -20 to +15 dBu (Phones)
