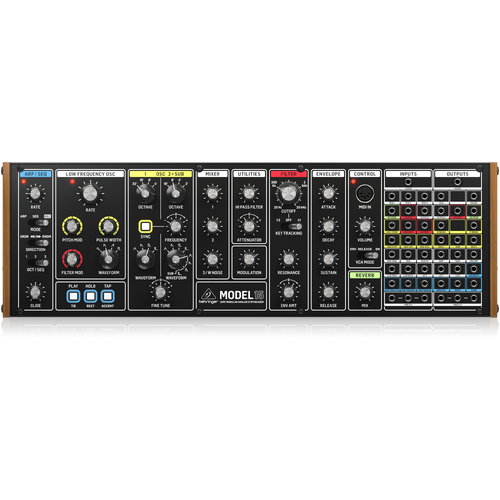

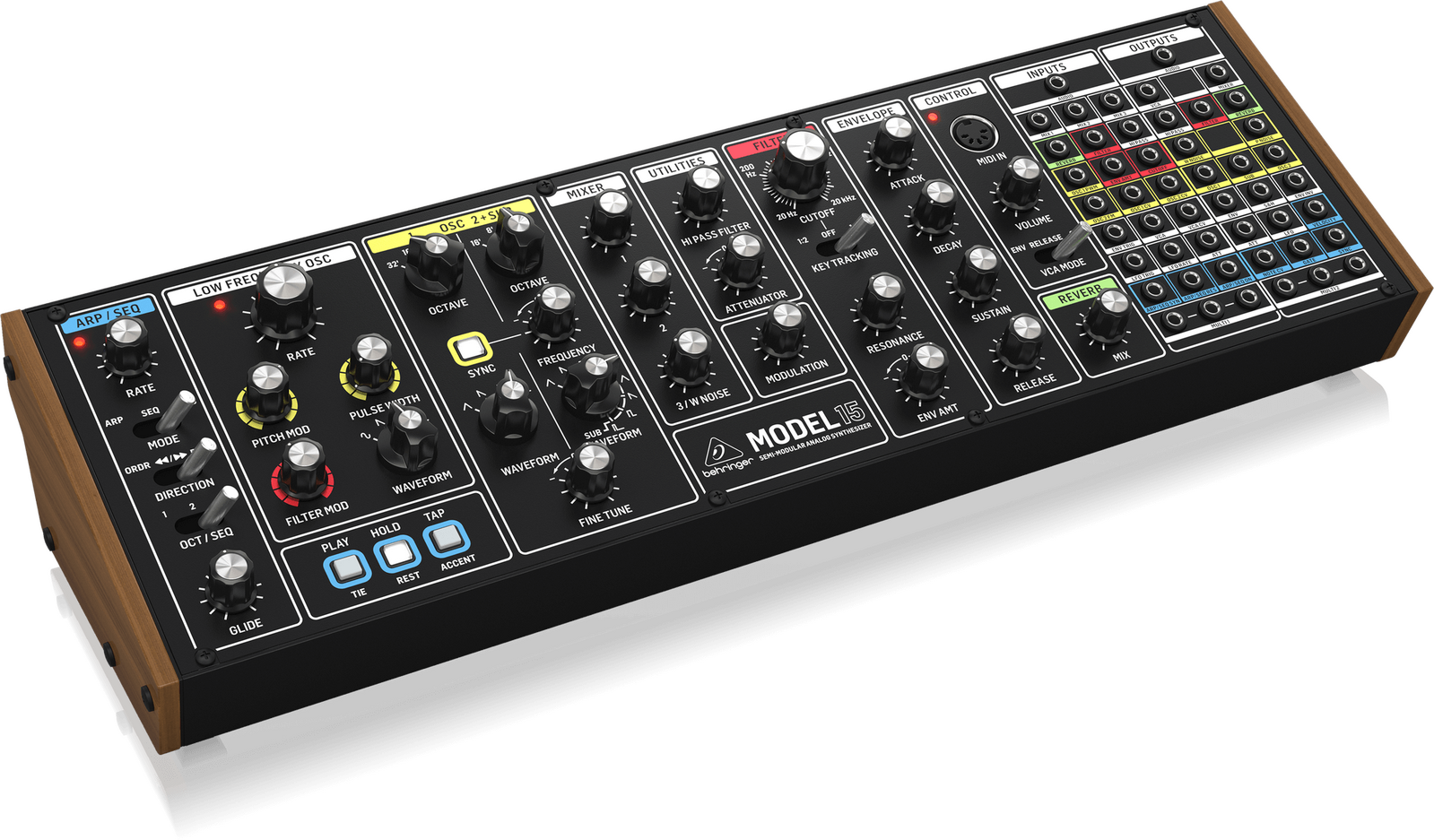

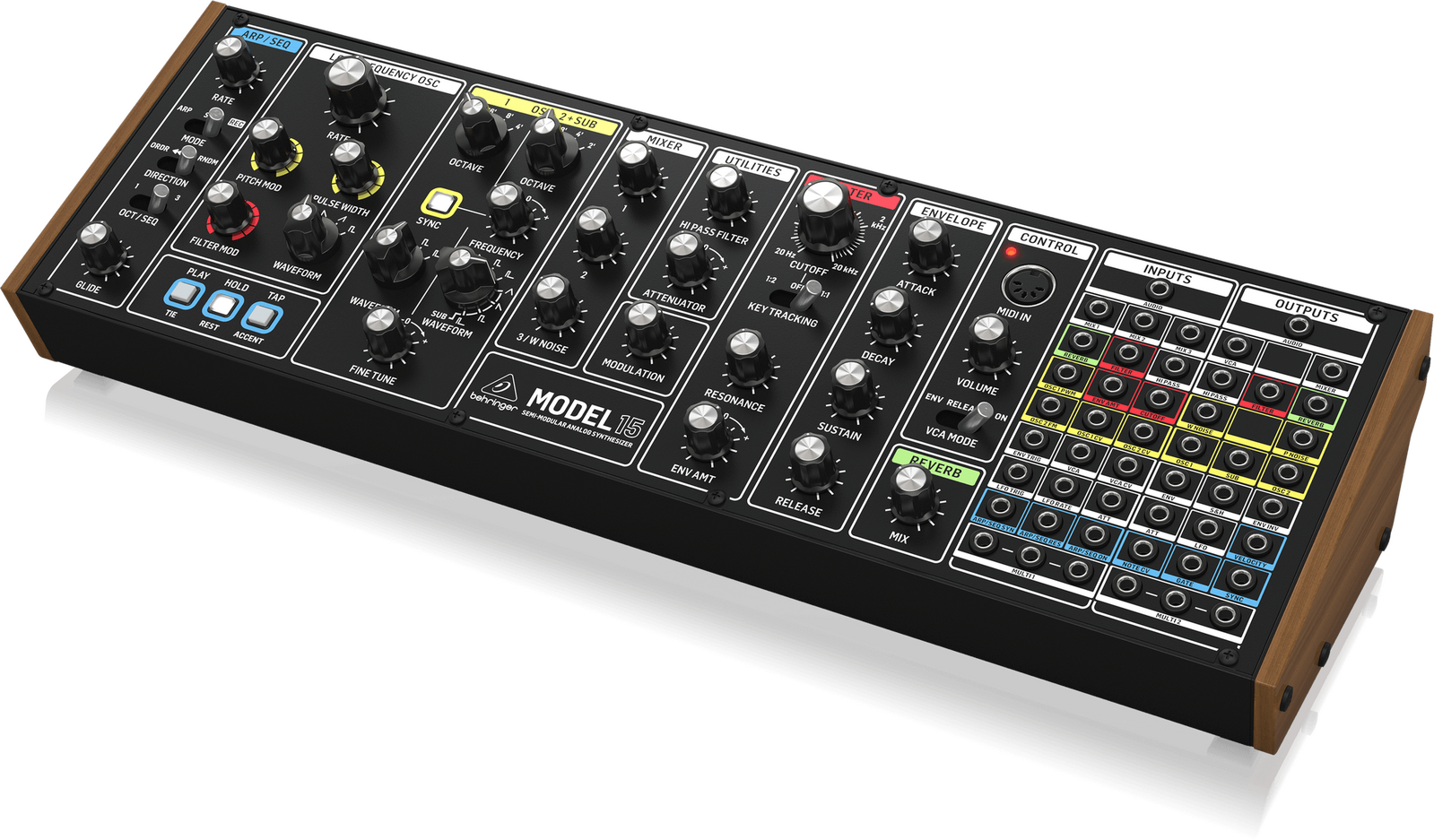

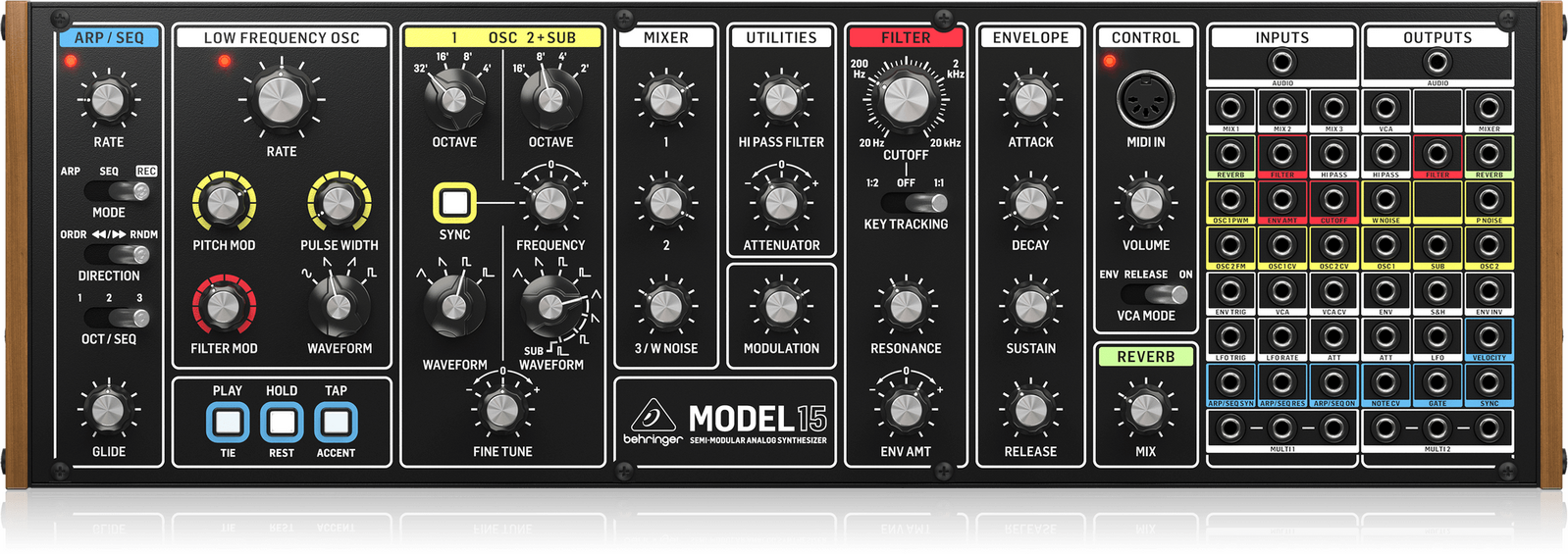

Behringer Model 15

Analog Semi-Modular Synthesizer with Dual VCOs, VCF, Sequencer and Arpeggiator in Eurorack Format

This is the synth your grandma wish she had! Introducing the Behringer MODEL 15! This compact analog synthesizer features dual VCOs so you can create super-fat bass lines and awesome lead sounds that’ll have everyone in the crowd vibing!

FEATURES

• Analog synthesizer with dual VCO design allows for insanely fat music creation

• Authentic recreation of circuits from the legendary “Model 15” modular synthesizer

• Semi-modular design requires no patching for immediate performance

• Pure analog signal path based on authentic VCO, VCF and VCA designs

• Dual oscillators with 4 waveforms, oscillator sync, pulse width modulation and sub-oscillator

• Classic 24 dB ladder filter with resonance for legendary sound performance

• Advanced step sequencer with 3 separate 256-step memory slots, key transpose and multiple playback modes

• Arpeggiator featuring hold function and multiple playback modes for recording and playing back your melodies and riffs

• Fully analog LFO with 4 waveforms and dedicated controls for pitch, filter and pulse width modulation

• Spring reverb emulation for inspiring sound effects

• 48 patch points for advanced modular connection and integration with external equipment

• 37 controls give you direct and real-time access to all important parameters

• Complete Eurorack solution – main module can be transferred to a standard Eurorack case

• 16-voice Poly Chain allows combining multiple synthesizers for up to 16 voice polyphony

• Comprehensive MIDI implementation with MIDI channel and Voice Priority selection

Ready to Go!
The Behringer MODEL 15’s semi-modular design makes it ready to go right out of the box with its 48 patch points at your disposal so you can connect and integrate any module in your collection. And if you were a fan of the legendary System 55, we’ve taken everything great about that and put it in a sleek, compact chassis, so you won’t need a whole truck to transport your setup!

Classic Analog Goodness!
Featuring a pure analog signal path, the MODEL 15 features dual oscillators each with 4 waveforms, pulse width modulation and sub-oscillator. On top of that, the MODEL 15 also comes with 3 separate memory slots for its 256-step arpeggiator with multiple playback modes.

Spring into Action!
Adding reverb to any song, riff or melody is a great way to add depth and character to a piece of music. The MODEL 15 comes with spring reverb emulation that’ll add a sense of space to your music. Couple that with a 4-waveform LFO with adjustable pitch, filter and pulse width modulation and MODELL 15 is capable of lush, intricate and expansive sounds.

Eurorack Ready
The MODEL 15 is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the MODEL 15 to be mixed with other synth modules for a truly unique set up.

An Amazing Value
Get another sweet addition to your setup plus all the classic tones it comes with by getting a Behringer MODEL 15 today!

SPECIFICATIONS

Synthesizer Architecture
Number of voices: Monophonic
Type: Analog
Oscillators: 2 + sub
LFO: 1
VCF: 1
Envelope: 1 ADSR
Noise: White, pink

Connectivity
Power input: DC input connector
Power switch: Push button on / off
USB (MIDI): USB 2.0, type B
MIDI in / out / thru: 2 x 5-pin DIN / 16 channels
Audio out: 1/4" TS, unbalanced, max. +5.8 dBu
Headphones: 1/4" TRS, unbalanced, max. 7.5 mW into 32 Ω
Headphones output impedance: 8 Ω

Inputs
Type: 3.5 mm TS

AUDIO INPUT
Impedance: 280 kΩ -5 V to +5 V

MIX 1
Impedance: 100 kΩ -5 V to +5 V

MIX 2
Impedance: 100 kΩ -5 V to +5 V

MIX 3
Impedance: 100 kΩ -5 V to +5 V

REVERB
Impedance: 150 kΩ -5 V to +5 V

FILTER
Impedance: 100 kΩ -5 V to +5 V

HI PASS
Impedance: 110 kΩ -5 V to +5 V

OSC 1 PWM
Impedance: 100 kΩ 0 V to +5 V

ENV AMT: -8 V to +8 V (DC coupled)

CUT OFF: -5 V to +5 V

OSC 2 FM
Impedance: 90 kΩ -5 V to +5 V

OSC 1 CV: -5 V to +5 V

OSC 2 CV: -5 V to +5 V

ENV TRIG: More than 2.5 V

VCA
Impedance: 100 kΩ -5 V to +5 V

VCA CV: 0 V to +8 V (DRONE setting)

LFO TRIG
Impedance: 100 kΩ 0 V to +5 V

LFO RATE
Impedance: 100 kΩ -5 V to +5 V

ATT
Impedance: 110 kΩ -8 V to +8 V

ARP/SEQ SYN
Impedance: 100 kΩ 0 V to +5 V

ARP/SEQ RES: More than 2.5 V

ARP/SEQ ON: off = 0 V / on = +5 V

MULTI 1 (x3): -5 V to +5 V

LFO Section Controls
Rate: min to max (0.07 Hz - 1.3 kHz)
Pitch mod: 0% - 100%
Pulse width: 0% - 100%
Filter mod: 0% - 100%

Switches
Shape: sine / sawtooth / ramp / square

LED: Rate indication

OSC Section Controls
Octave 1: 32', 16', 8', 4'
Octave 2: 16' ,8', 4', 2'
Frequency: ±7 semitones
Waveform Osc 1: Triangle, sawtooth, square, pulse
Waveform Osc 2: Triangle, sawtooth, square, pulse, sub, triangle, sawtooth, square, pulse
Fine tune:  ±4 semitones

Buttons: Sync

Mixer Section Controls
Osc 1: 0% - 100%
Osc 2: 0% - 100%
Sub / white noise 0%: - 100%

Utilities Controls
Hi pass filter: 0% - 100%
Max attenuation: 36 dBu

Modulation
Control: depth 0% - 100%

Filter Section Controls
Cutoff frequency: 20 Hz - 20 kHz
Resonance: 0% - 100%
Env amount: 0% - 100%

Switches
Key tracking: 1:2 / off / 1:1

Envelope Controls
Attack: 2 mS to 16 S
Decay: 2 mS to 40 S
Sustain: 0 to 8 V
Release: 2 mS to 20 S

Reverb
Reverb: Mix 0 - 100%

Output Section
Control: Volume 0% - 100%
Switches: VCA mode env, release, on
