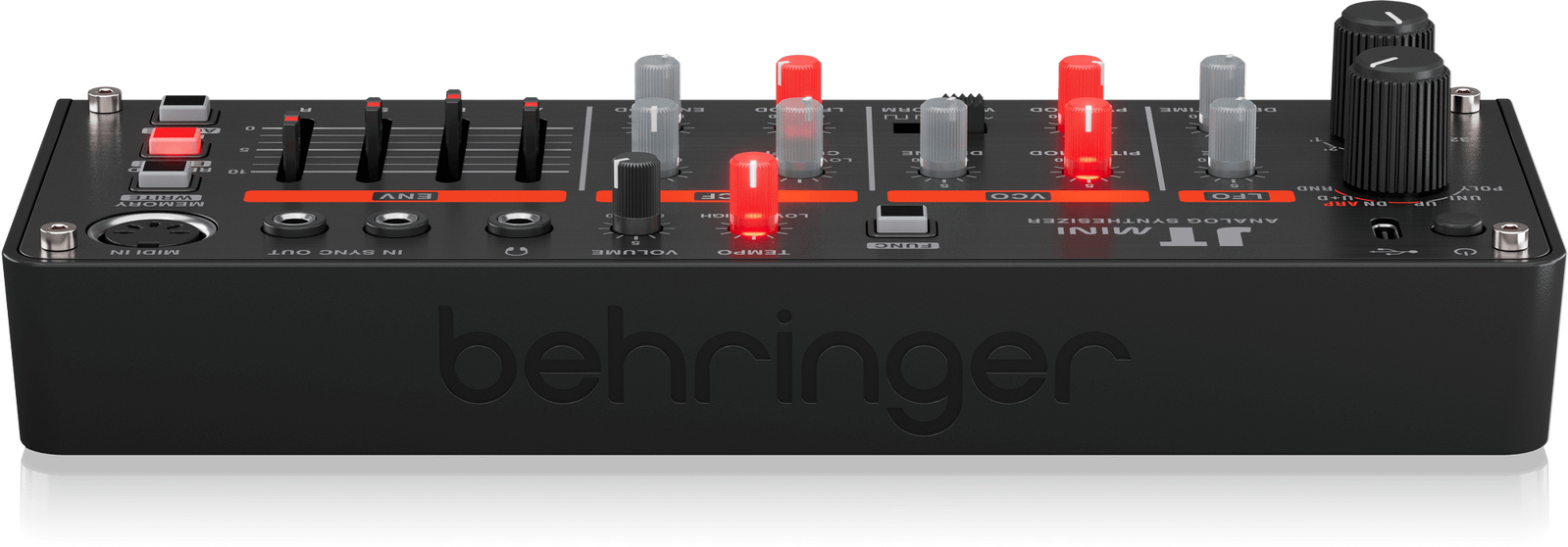

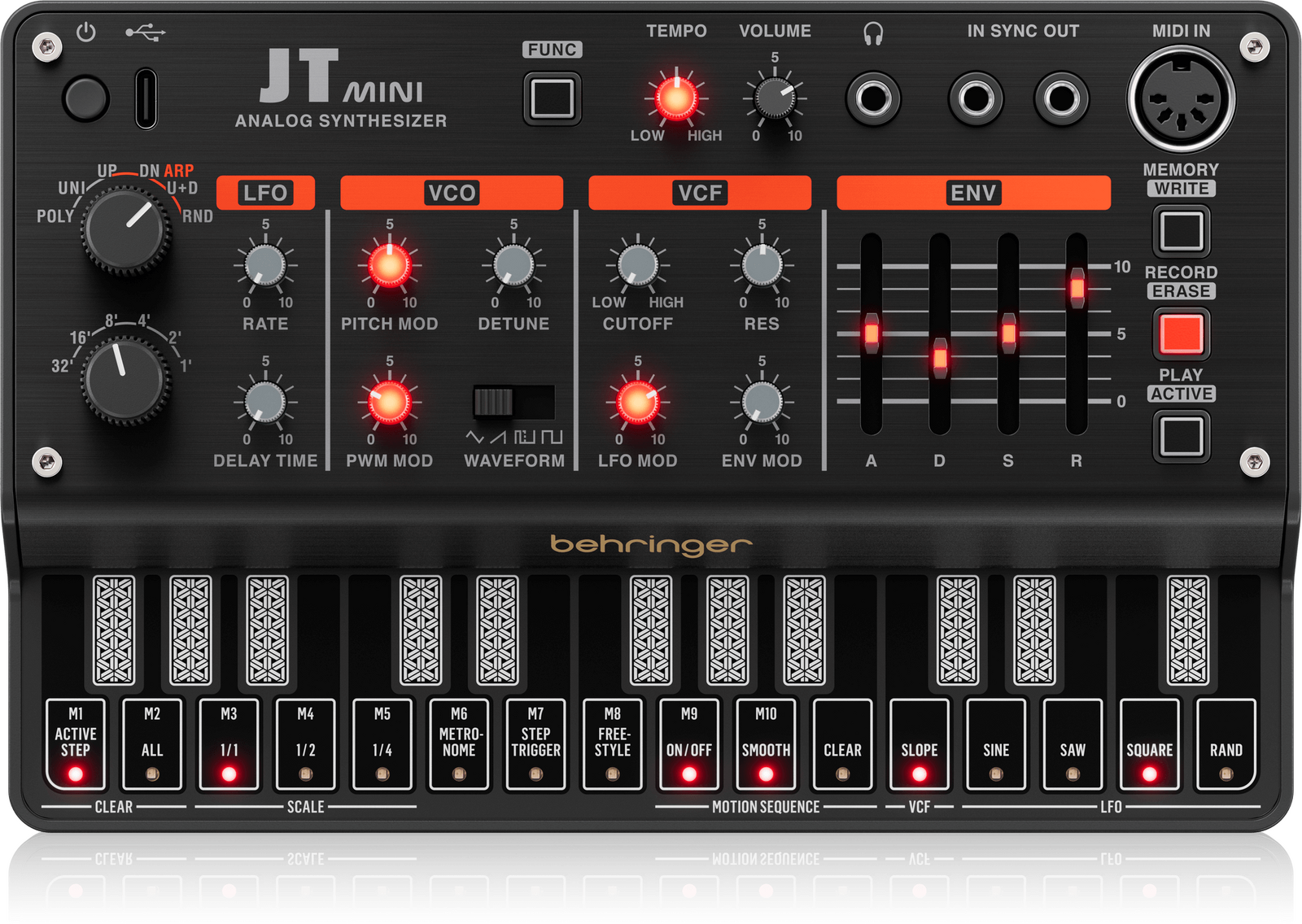

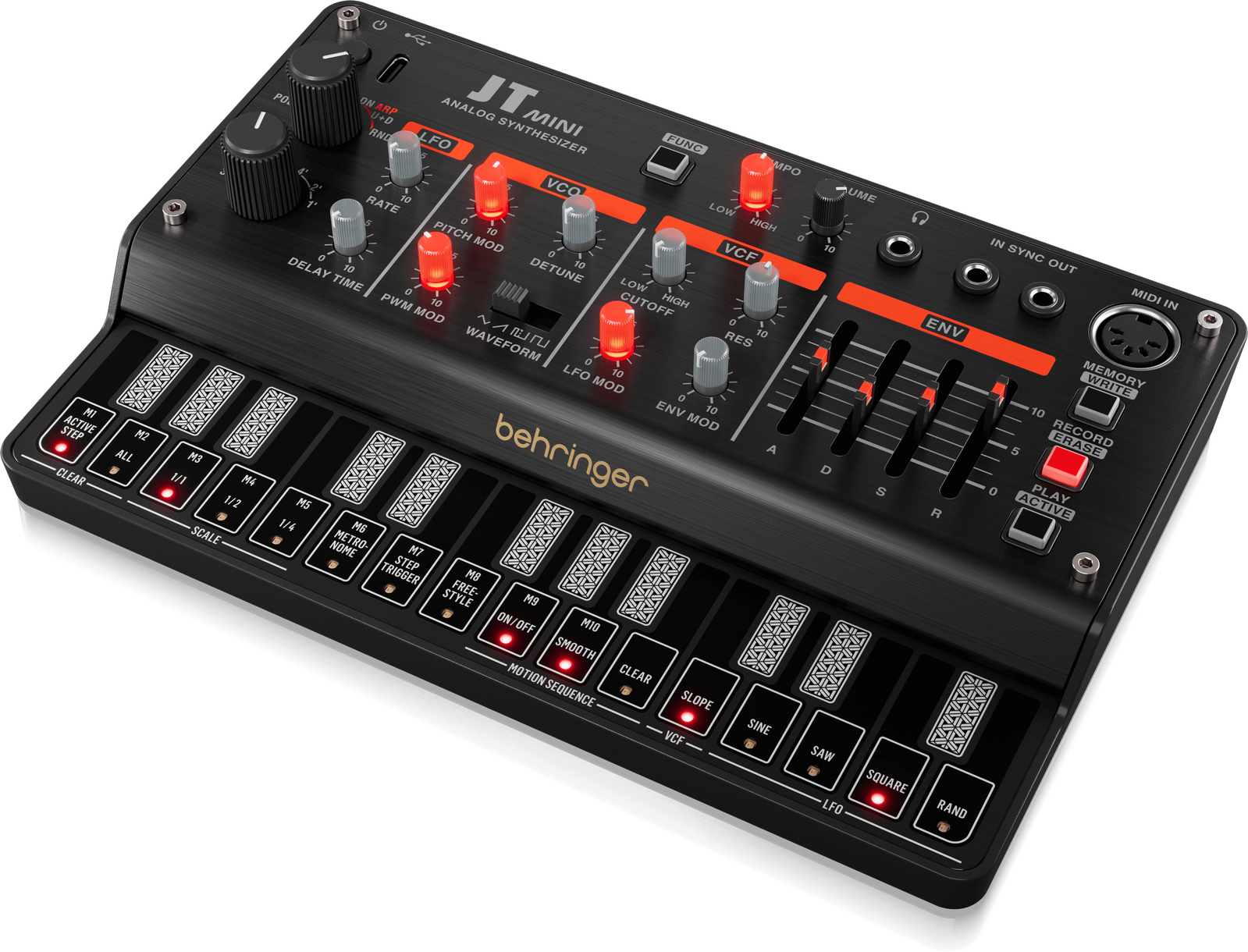

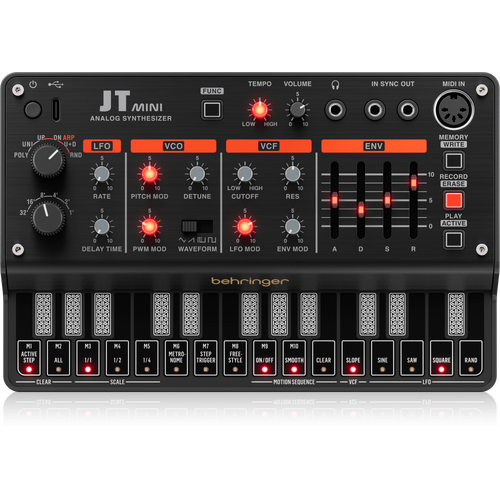

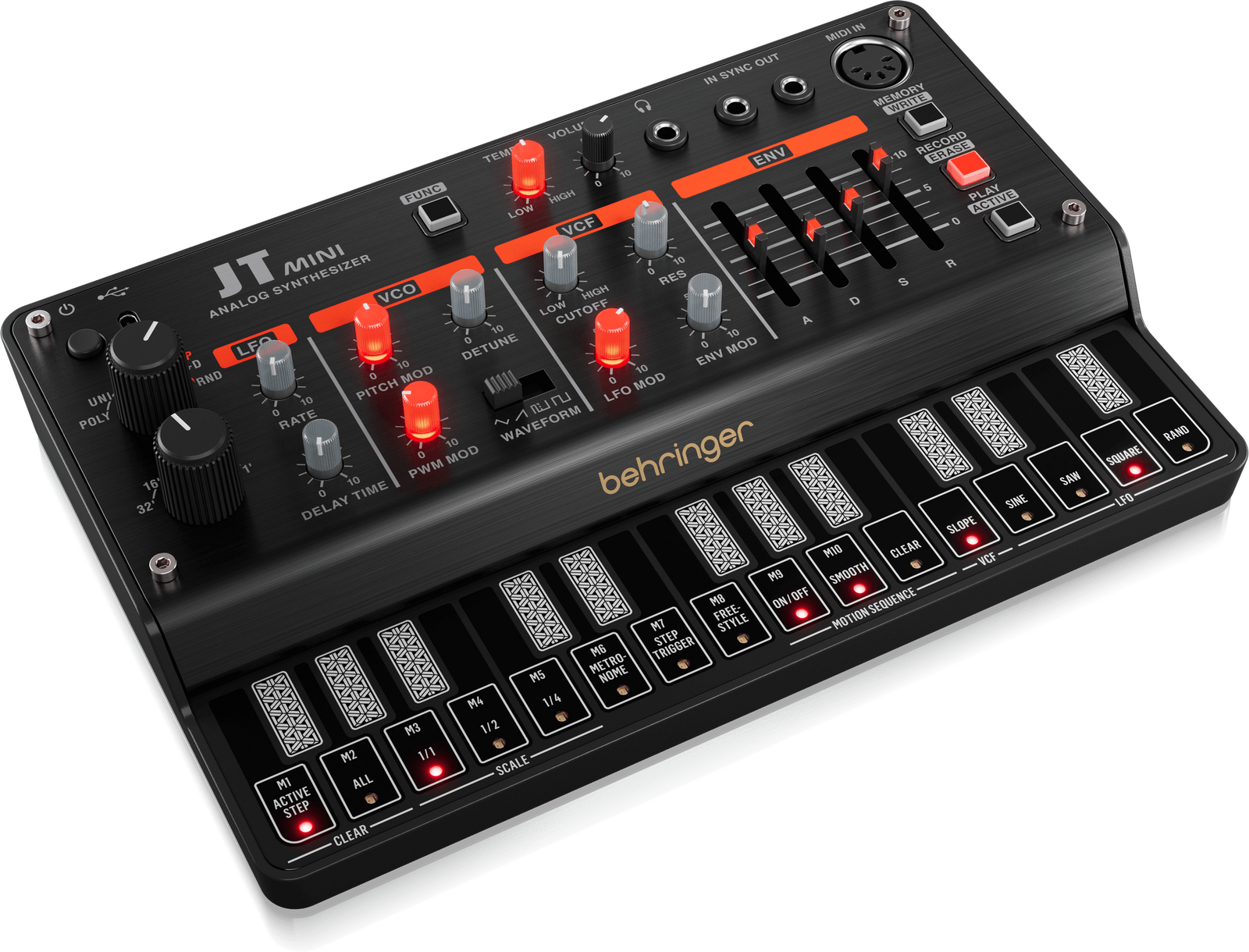

Behringer JT MINI

Analog Polyphonic Synthesizer with 3 VCOs, Multi-Mode VCF, Arpeggiator and 16-Step Motion Sequencer

Have the power of a legendary synthesizer anywhere you go when you have the Behringer JT MINI! This super compact, ultra-portable synth comes with a variable waveform VCO, pulse width modulation, a 16-step motion sequencer and is small enough to be tucked away in a backpack or gigbag!

FEATURES

• Portable analog polyphonic and programmable synthesizer

• Inspired by the classic Jupiter synthesizer from the ‘80s

• 27 touch-sensitive keys for great playability

• Pure analog signal path based on authentic VCO, VCF and VCA designs

• VCOs with 4 selectable saw, triangle, square and pulse waveforms

• Pulse width modulation for additional sound creation

• Vintage multi-mode filter with resonance for desirable classic sounds

• Filter switchable between 2- and 4-poles for additional sound creation

• Extensive play modes featuring poly, unison and arpeggiator

• 16-step motion sequencer with 8 memory slots and recording of knob movements

• LFO with saw, triangle, square and random waves for vibrato, tremolo and wah-wah effects

• Voltage Controller Amplifier with a dedicated ADSR envelope

• USB Type C allows powering via smartphone, power bank or computer

• Sync Input and Output to synchronize with other synthesizers or drum machines

• Comprehensive MIDI implementation (including NRPN/CC control of all parameters and bulk load/save)

Honey, We Shrunk the Synth!
The Behringer JT MINI is inspired by the classic Jupiter synth, but we wanted to let you take that sound anywhere, so we decided to shrink everything down and add a bunch more features that make it a real gem in your setup. It features a VCO with 4 selectable waveforms that include saw, triangle, square and pulse. You can also select between Polyphonic or Unison modes, as well as Arpeggio Up, Down, Up and Down or Random.

Master Your Sound Anywhere
The JT MINI’s VCF section features cutoff and resonance controls while also having the capability to mix in LFO as well as Envelope modulation which can be controlled with the dedicated ADSR sliders. With its 27 touch-sensitive keys, the JT MINI also allows for maximum playability in a small form factor. Combine that with an easily programmable 16-step sequencer, and you’re looking at a versatile, powerful and compact sound shaping machine that’ll easily find a home in your setup.

An Amazing Value
Whether you’re looking for a synth that’ll be right there with you when inspiration hits, or one to round out your gear, the Behringer JT MINI is perfect for any synth head looking for that special sauce.

SPECIFICATIONS

Synthesizer Architecture
Number of voices: 3 Voice
Type: Analog
Oscillators: 3 VCO
LFO: 1 LFO
VCF: LPF 12/24 dB/octave
Envelopes: 1 ADSR

Connectivity
Power switch: Push button on/of
MIDI In: 5-pin DIN / 16 channels
USB (MIDI): USB-C
Headphones: 3.5 mm TRS, stereo, 5 mW 32 Ω
Sync: Input and Output

USB
Type: Class compliant USB-C
Supported Operating Systems: Windows 7 or higher, Mac OS X 10.10 or higher

Volume
Control: Volume: 0 to 10

Control Section
Switches:

• Footage Select - 32', 16', 8', 4', 2', 1'

• Poly, Uni, Arpeggiator Up, Down, Up & Down, Random

LFO Section
Controls:

• LFO Rate

• LFO Delay

Switches (keyboard): Waveform: Sine, Saw, Square, random

Oscillator Section
Controls:

• Pitch Mod

• PWM Mod

• Detune

Switches: Waveform select

Analog Filter Section
Controls:

• Cutoff

• Resonance

• LFO Mod

• Env Mod

Switches (keyboard): Slope: 12 dB/octave, 24 dB/octave

Sequencer Section
Capacity: 16 steps, 10 patterns
Control: Tempo
Switches:

• Memory/Write

• Function

• Play/active

• Record/erase

• Scale (Keyboard): 1/1, 1/2, 1/4

• Metronome On/Of (Keyboard)

• Step Trigger (Keyboard)

• Freestyle (Keyboard)

• Motion Sequence On/Off (Keyboard)

• Motion Sequence Smooth (Keyboard)

• Motion Sequence Clear (Keyboard)

Envelope Section
Sliders:

• A(ttack)

• D(ecay)

• S(ustain)

• R(elease)

Keyboard and Controls
Keyboard: 27, capacitive touch

Power Requirements
Mains connector: USB-C
Indicator: Power LED

Physical
Standard operating temperature range: 5°C – 45°C (41°F – 113°F)
Dimensions (H x W x D): 43.2 x 193 x 123.7 mm (1.7 x 7.6 x 4.9")
Weight: 0.38 kg (0.84 lb)
