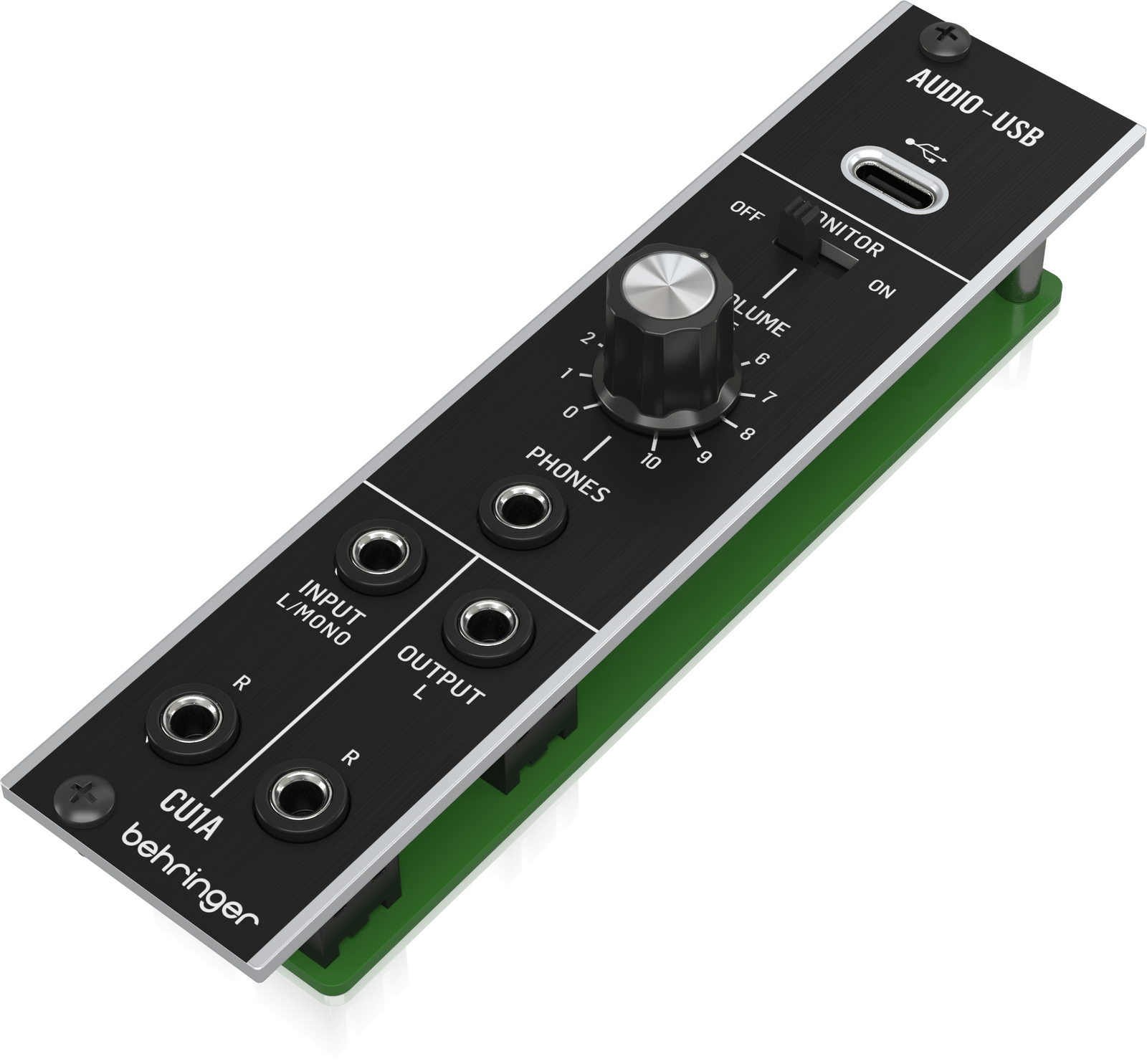

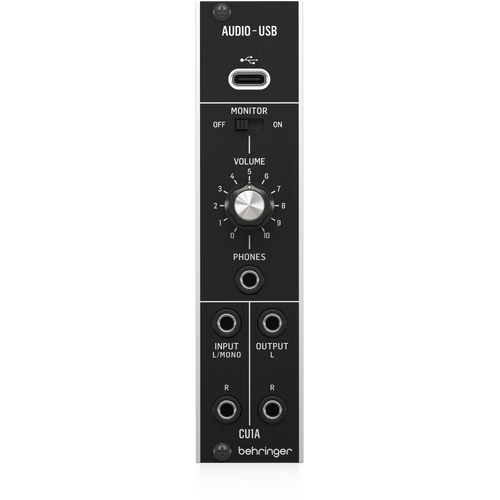

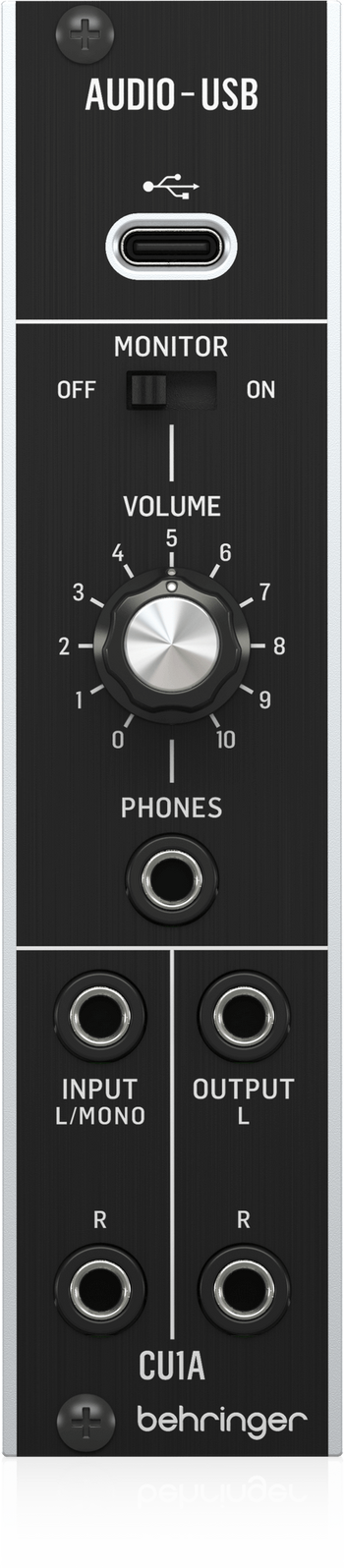

Behringer CU1A

Ultra-Low Latency 2 In/2 Out USB/Audio Interface for Eurorack

If you’ve ever wanted to easily record songs with your modular synthesizer, look no further than the Behringer CU1A – a low latency 2 in and 2 out audio interface that’s meant to integrate seamlessly into your existing modular setup and give you an easy way to connect directly to any computer for recording and playback.

FEATURES

• Audio interface connects your modular setup with your computer for recording and playback

• High-resolution 48 kHz converters for high-end audio quality

• Works with your PC or Mac computer—no setup or drivers required

• Stereo headphones output with dedicated Level control lets you monitor both input and output

• Powered via USB Type C - no power absorbed from your modular system

• Eurorack specs: 6 HP, 0 mA +12 V, 0 mA -12 V

Connect and Control
The CU1A comes with a stereo headphone output that you can control with the dedicated level control. The CU1A also works with any PC or Mac. No setup. No drivers. It also works as a send/return so you can run your modular sounds through your favorite effect plug-in or send beats, samples as well as any other signal into your modular synth for some extremely wild sound experiments!

High-Resolution, Maximum Power.
By integrating the CU1A into your setup, you’ll get high-resolution converters that provide the best audio quality for recording and/or playback. The CU1A is also powered via USB C ensuring that no power is drawn away from your modular synth.

Eurorack Ready
Installing the CU1A is simple as it was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the CU1A to be mixed with other synth modules for a truly unique set up.

Amazing Gear at an Affordable Price
Whether you’re just getting into modular synths, looking to complete your collection or expand the functionality of your setup, the CU1A module from Behringer is a great tool to have when creating amazing music.

SPECIFICATIONS

USB
Type: Class compliant USB Type C
Supported Operating Systems: Windows 7 and higher Mac OS 10.10 and higher

Inputs
Analog line level: 2 x 3.5 mm TS jack
Input level: -10 dB or + 4 dB switchable
USB: USB C

Outputs
Analog line level: 2 x 3.5 mm TS jack
Output level: -10 dB or +4 dB switchable
Phones: 3.5 mm stereo TRS jack
USB: USB C

Controls
Control: Headphone Volume
Switches:

• Input level micro

• Output level micro

• Headphone monitor on/of
