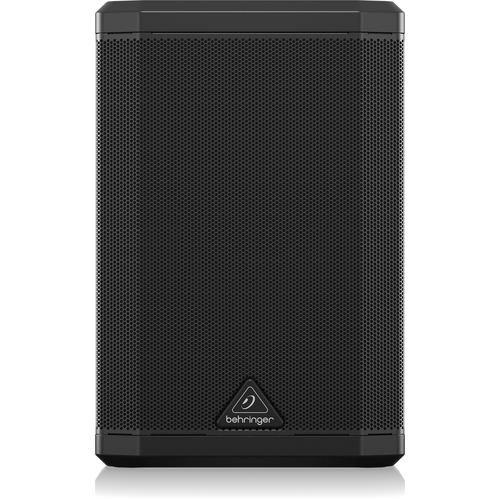

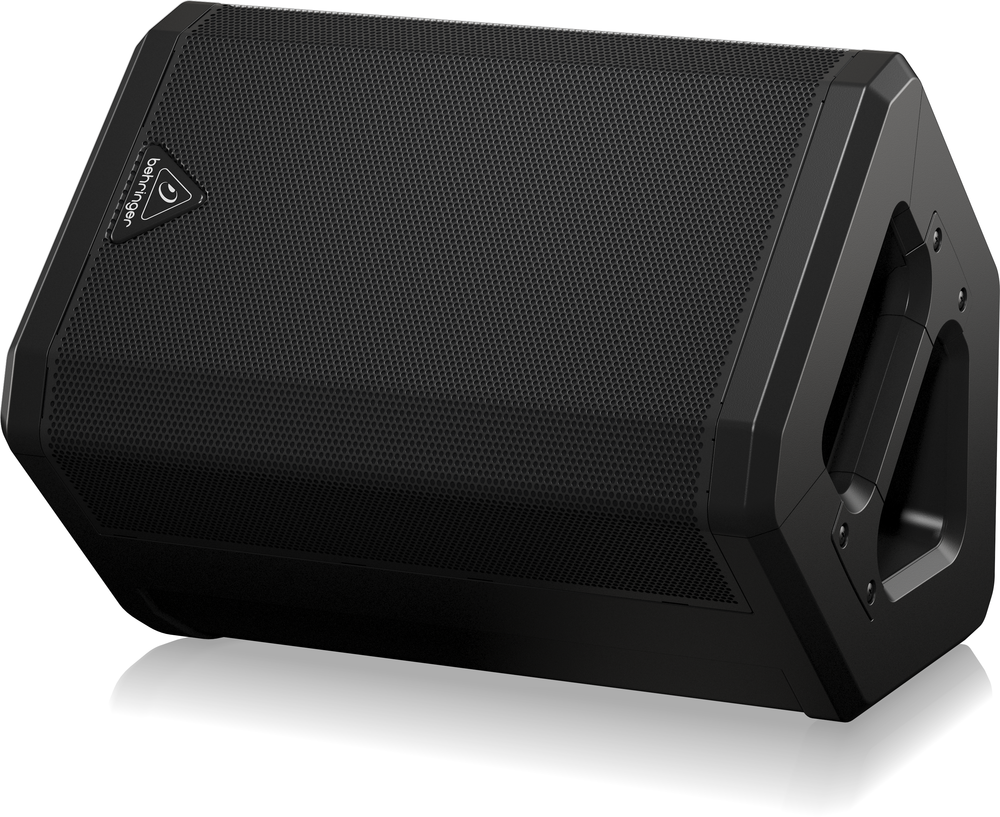

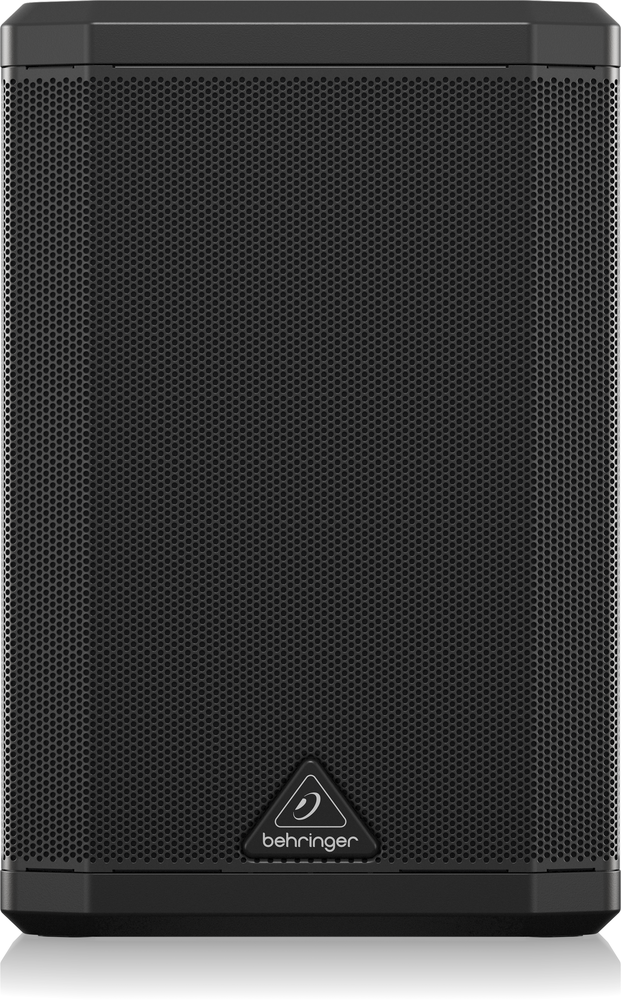

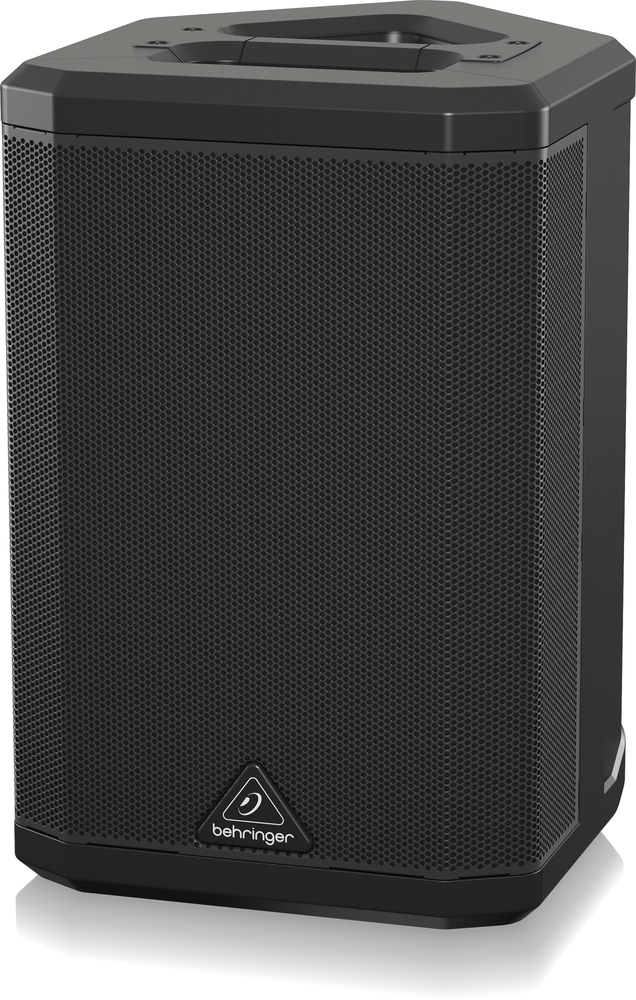

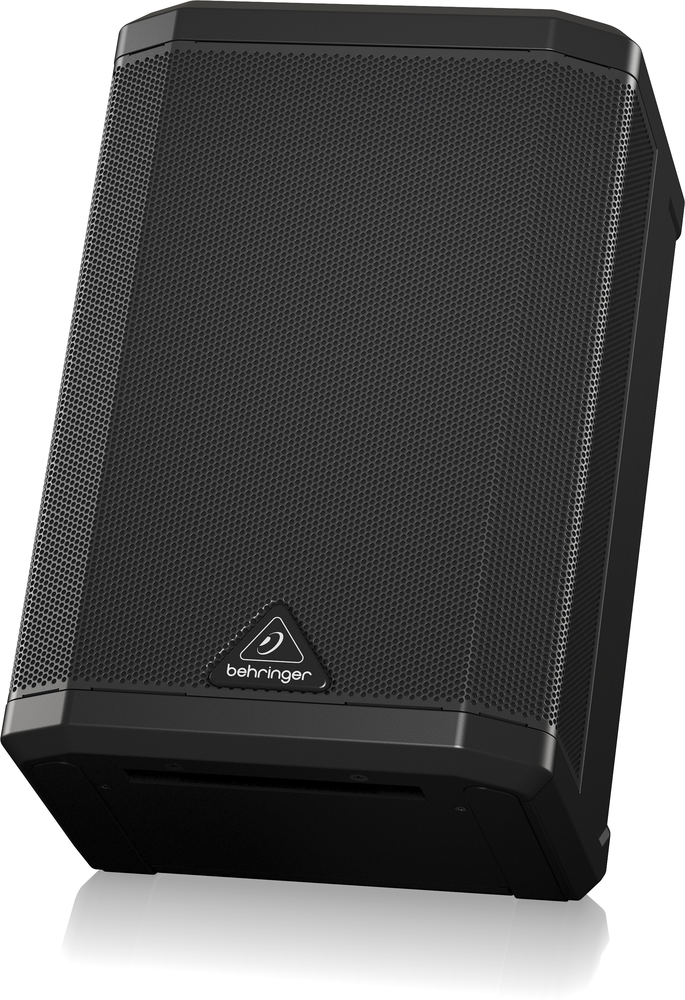

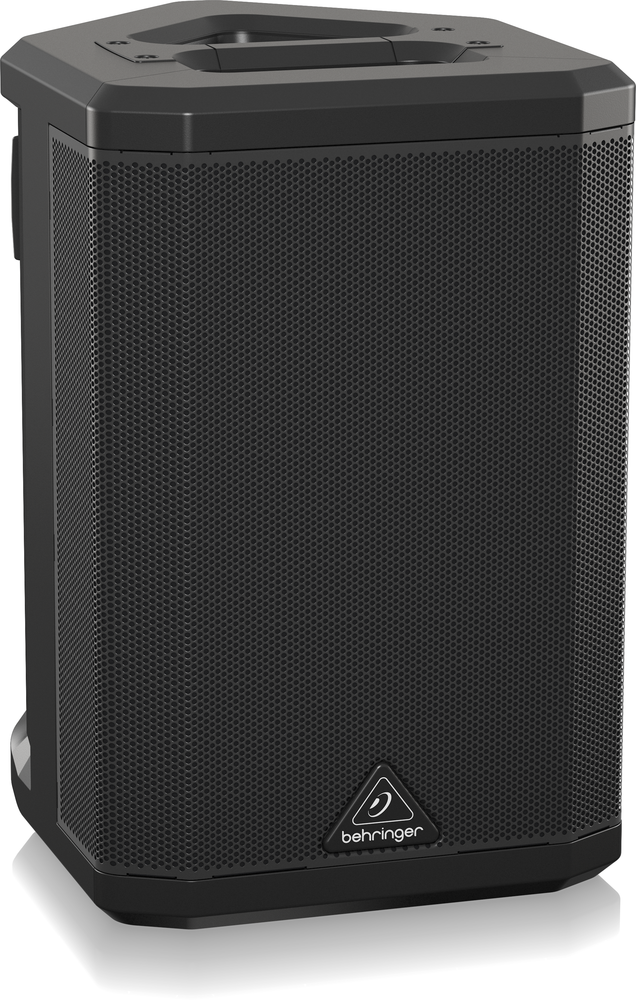

Behringer B1X

Introducing the B1X Active Loudspeaker: Power, Features, Affordability! Experience ultimate audio with the B1X. It's compact, portable, and delivers impressive sound. With a 250-watt Class-D power amp, 4-channel digital mixer, TC FX technology, and wireless readiness for ULM Series microphones (sold separately), you have complete control whether it is on the floor or a stand. Enjoy deep bass from the 6.5" long-excursion driver and exceptional sound reproduction from three angled 2.5" full-range drivers. Stream music wirelessly with built-in Bluetooth. Perfect for small to medium-sized venues, presentations, nightclubs, and more. Upgrade your audio experience with the affordable B1X Active Loudspeaker, combining power, versatility, and value in one impressive package.

FEATURES

• All-in-one portable PA system with full Bluetooth connectivity

• Incredibly simple to set-up and use on elevated surfaces, speaker stands, tilt-back or as a floor monitor

• 250 Watts of powerful, high-quality sound for audiences of up to 600 people

• Perfect for parties, schools, corporate and educational presentations, seminars, aerobics, auctioneers, working musicians, tour guides, weddings, etc.

• AC or Lithium-Ion battery operated with up to 8 hours continuous use per battery charge

• Comprehensive remote control via Apple iPhone/iPad and future Android app

• High quality Bluetooth with TWS stereo audio streaming and Concert Wireless technology link two and more speakers

• XLR output connector allows linking of additional speaker systems

• ”Wireless-ready“ for high-quality Behringer digital wireless system (not included)

• DSP presets for application type and speaker positioning

• Klark Teknik Digital Signal Processing for total system control

• Next generation TC FX’s for stunning reverb, Chorus and delay EFX

• Intuitive single rotary control user interface with LCD display for ease of navigation

• 6-channel inputs with individual volume control to connect to your mic, smart phone and other line level source

• Powerful 6.5" woofer and 3 x 2" high-resolution tweeters driven by a Class-D amplifier

• Integrated stand mounting with 35 mm pole socket

• ”Planet Earth“ switching power supply for maximum flexibility (100 - 240 V~) and low power consumption for energy saving

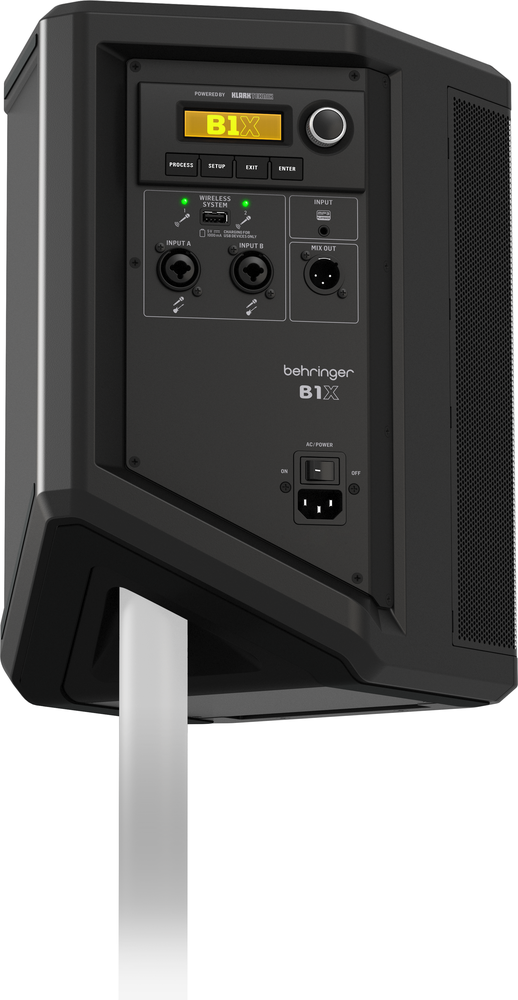

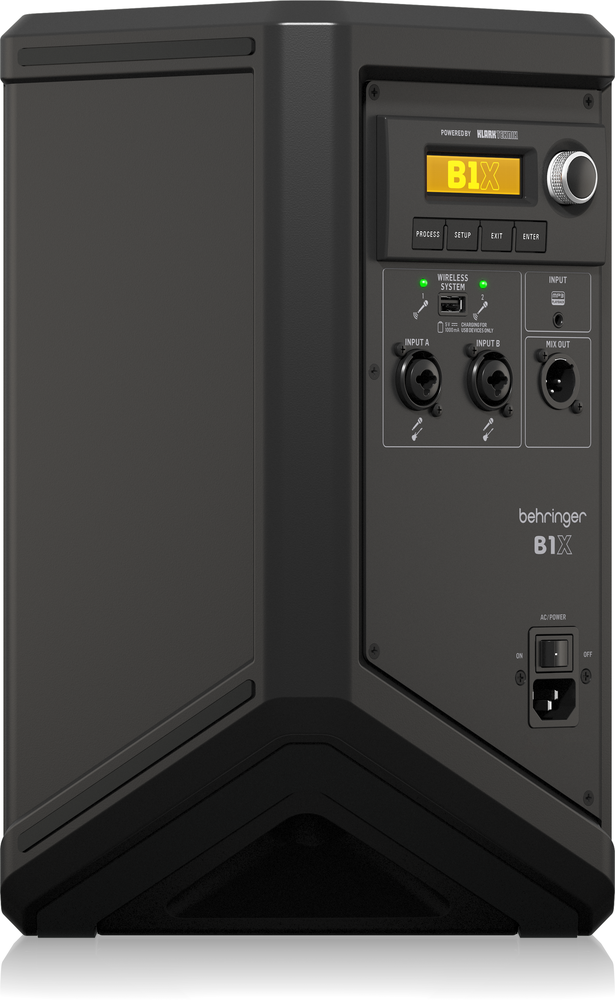

Built-In Digital Mixer – Unleash Total Control
Take command of your sound with the B1X and its cutting-edge onboard digital mixer. Equipped with two versatile combo jack/XLR connectors, it effortlessly accommodates both balanced and unbalanced connections for dynamic mics and line-level instruments. The user-friendly interface boasts a sleek rotary push-encoder alongside convenient Process, Setup, Exit, and Enter function buttons. Experience a visual delight with the stunningly backlit LCD display, allowing seamless control over DSP functions, mixer parameters, 3-band EQ, and presets. Whether you prefer hands-on adjustments or the convenience of our free iOS/Android apps, you have the power to customize your audio like never before. Worried about unauthorized access? Rest easy knowing that all settings can be securely locked down for your peace of mind. Embrace the future of audio control with the B1X's comprehensive remote capabilities.

DSP and FX – The Secret to Superb Sound
Unleash the Power of Intelligent Sound Processing with the B1X! As soon as your signal enters, our built-in DSP takes over, ensuring flawless signal integrity. It's like having a personal audio engineer, fine-tuning the perfect EQ, crossover, compressor, reverb effect, and amplifier channels. With the user-friendly two-band adjustable EQ, you have full control. The result? Incredible sound quality that will captivate any audience. Elevate your music confidently and immerse yourself in an exceptional audio experience with the B1X.

Ultra-Portability
The B1X combines exceptional sound with unrivaled portability. With its convenient carry handle and optional durable B1 BACKPACK (sold separately), you can effortlessly handle load-ins and setups. But what truly sets the B1X apart is its onboard Lithium battery pack, providing hours of powerful sound reproduction on the move. Whether you're jamming in the subway or performing in the remote corners, the B1X has got your back. Say farewell to limitations and embrace the freedom of taking your music anywhere with the B1X.

Experience the Legend – Klark Teknik
Klark Teknik is a world-renowned British audio company with an impressive 40-year history and a prestigious TEC Lifetime Achievement Award. Their products have been trusted by top artists, and their DN780 reverb processor is considered the industry standard by leading audio engineers globally. Discover the rich heritage of Klark Teknik on their website.

B1X proudly incorporates custom-engineered Klark Teknik technology, ensuring that our product meets the highest standards of audio quality. With the power of Klark Teknik integrated into the B1X, you can expect exceptional sound performance that will elevate your audio experience to extraordinary levels.

Sound Value
With the versatile B1X speakers, the possibilities are endless. Whether you place them on a table, the floor, or mount them on optional speaker stands, prepare to be immersed in a world of music. This exceptional system delivers rich-sounding audio with ease, allowing you to set it up in mere moments. Embrace the convenience and elevate your life with a touch of ease - get your B1X today!

SPECIFICATIONS

Amplifier
Maximum output power: 250 W*
Type: Class-D
Protection: Short circuit, open circuit, thermal

Controls
Hardware: Rotary push-encoder
Software: Apple iOS / Android interface via Bluetooth

Loudspeaker / System Data
Woofer: 1 x 6.5"
Tweeter: 3x2 " full range
Frequency response: 50 Hz – 20 kHz (±3 dB)
Maximum SPL, 1m: 108 dB
Crossover: 2-way, active
Crossover Frequency: 700 Hz
Limiter: Independent HF, LF

Audio Connections
Inputs: 2 x XLR / ¼" TRS combo jacks
Impedance: TRS 0.83 MΩ, XLR balanced 2.5 kΩ
Sensitivity: 0 dBu (input gain and master set to 0)
Max. input level: +10 dBu
Aux in: 10 kΩ, unbalanced
Output: 1 x XLR balanced
Impedance: 470 Ω
Max. output level: +10 dBu

Digital Signal Processor (DSP)
Display: LCD 128 x 32, amber backlit
Factory EQ presets: Positioning, sound mode
FX Effects: Concert, Chamber, Ambience, Echo, Chorus, and more
Protection: Lockout function for all settings

Wireless System
USB dongle: USB socket accepts signals from 2 independent Behringer ULM mics
Signal indicator LED: 2 (green)

Bluetooth**
Frequency range: 2402 MHz ~ 2480 MHz
Channel number: 79
Version: Bluetooth 5.0 compliant
Maximum Output Power: ≤3.16 dBm
Compatibility: Supports GATT, A2DP 1.2 profiles
Maximum communication range: 30 m (without interference)
Connectivity: True Wireless Stereo (TWS) and mulitple speakers link

*Independent of limiters and driver protection circuits.

**The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks by Music Tribe is under license.
