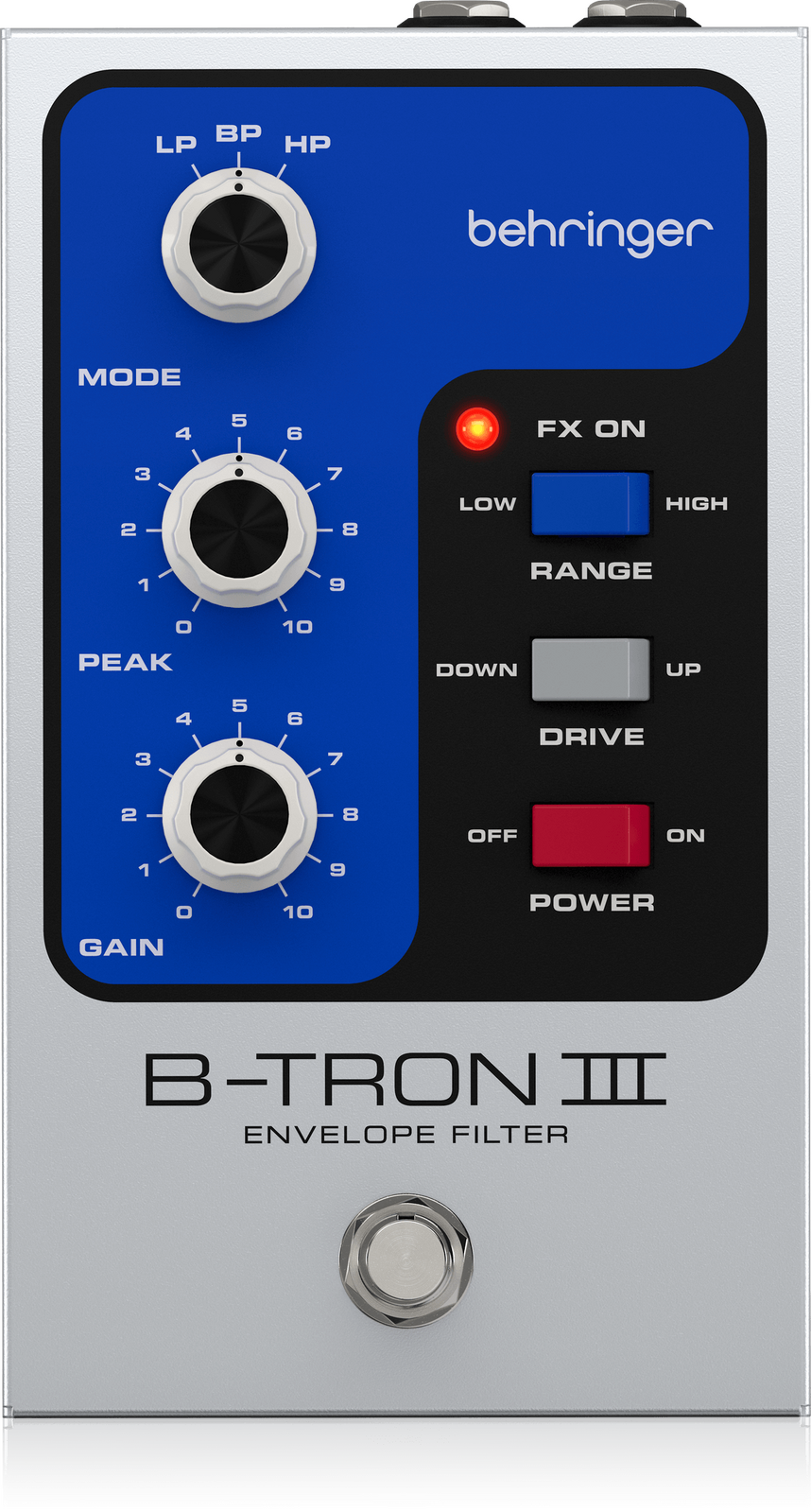

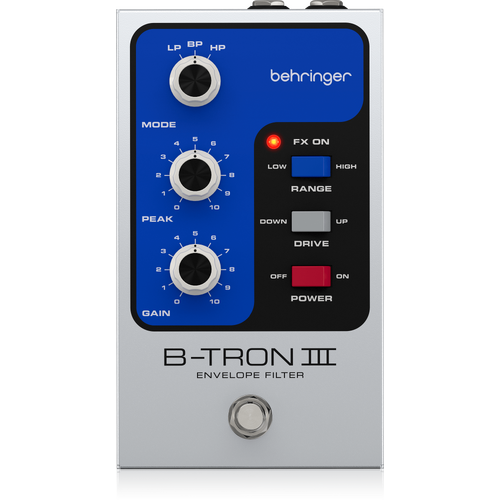

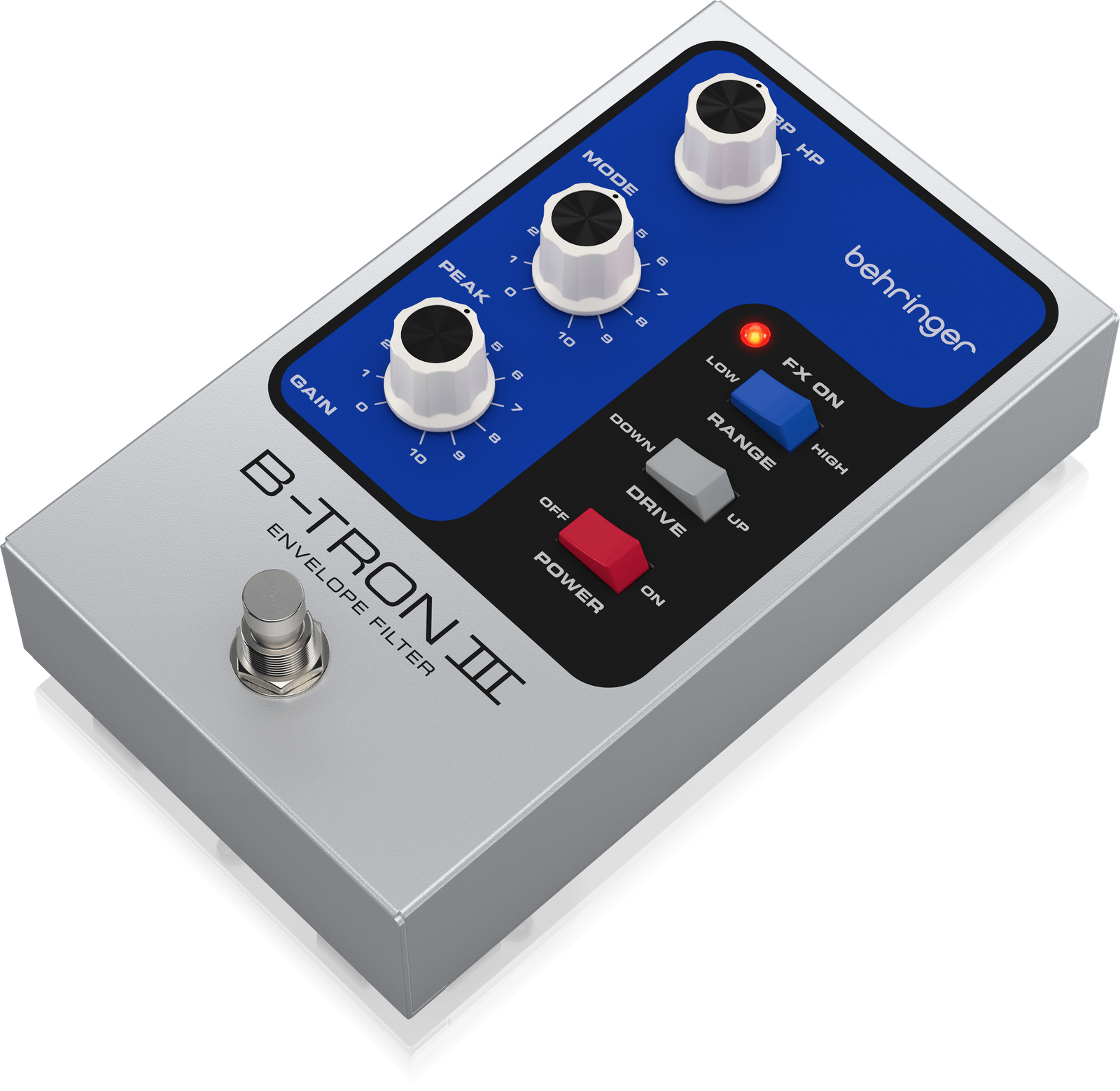

Behringer B-TRON III Envelope Filter

Vintage Auto-Wah Envelope Filter with 3 Filter Types, 2 Direction Modes and Versatile Input Range

It’s time to get funky because we’re bringing back a pedal that shaped ‘70s music! This is the Behringer B-TRON III ENVELOPE FILTER.

FEATURES

• Vintage auto-wah envelope filter pedal that shaped the sound of funk throughout the ’70s

• All analog optical circuit for natural sensitivity response and authentic recreation of legendary tone

• 3 filter types including low, band and high pass

• Up/Down modes for getting both ‘Wah’ and ‘Wow’ sounds

• Versatile sensitivity control makes this pedal perfect for use with guitar, bass and keyboards

• Range switch to emphasize low vowel-like sounds or high overtones

• Robust housing with authentic vintage styling

• True bypass for ultimate signal integrity

• Runs on 9 V battery or the Behringer PSU-SB DC power supply (not included)

Quack
The B-TRON III is a vintage envelope filter that creates a “Wah” or “vowel” sound every time you play a note. It includes three filter types via the Mode switch that includes low-, band-, or high-pass settings for a nice quack or a nice high-frequency sizzle. It works great for bringing the funk with either guitar, bass or keyboards.

Wah? More Like Wow!
The Range switch on the B-TRON III can be toggled between low, so you can get more vowel-like sounds, or high to emphasize more overtones. And the Up and Down modes on the Drive switch can give you that traditional “Wah” sound or a cocked “Wow” sound.

Amazing Flexibility
Having the B-TRON III is like having a piece of music history at your feet. It runs on standard 9 V DC power which makes integrating into your setup a total breeze. Its rugged and reliable metal construction also gives the B-TRON III the ability to stand up to the rigors of the road and the heaviest of stomps.

SPECIFICATIONS

Signal Connections

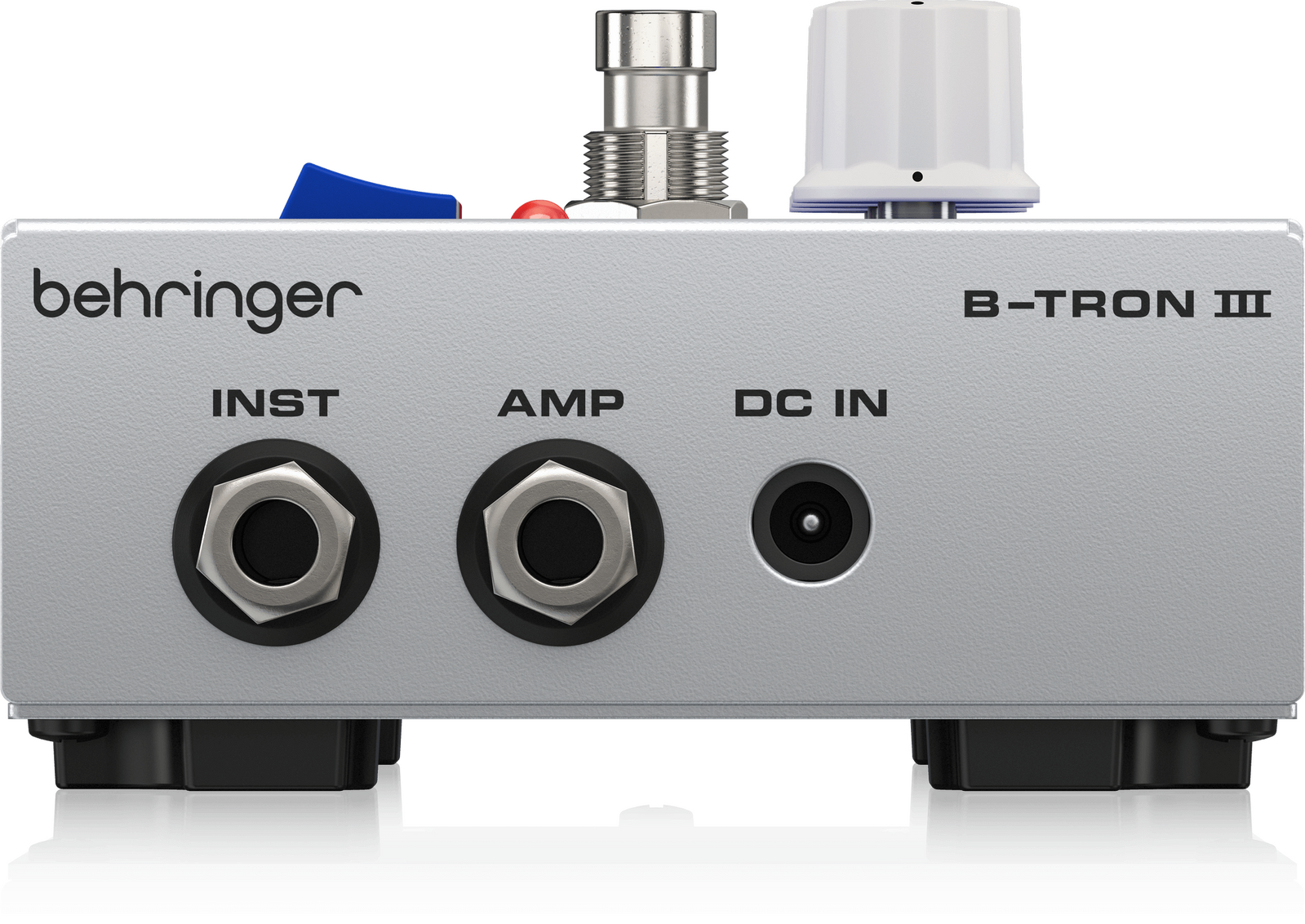

Instrument input: 1 x 1/4" TS jack, unbalanced
Impedance: 1 MΩ , unbalanced
Maximum input level: +30 dBu
Amp output: 1 x 1/4" TS jack, unbalanced
Impedance: <600 Ω, unbalanced
Maximum output level: +13 dBu

Controls
Mode: 1 x rotary 3-way switch Lo-Pass/Band Pass/Hi-Pass, switchable
Peak: 1 x rotary knob
Shape (Q): 1.5 to 14, adjustable
Gain: 1 x rotary knob
Max. gain: +40 dB
Range: 1 x rocker switch Low/High, switchable
Drive: 1 x rocker switch Down/Up, switchable
Power: 1 x rocker switch Off/On, switchable

Power Supply
Power supply: External adapter
Power input: Standard 9 V DC, center negative, >100 mA
Power consumption: 0.25 W

Dimensions / Weight
Dimensions (H x W x D): 61 x 100 x 171 mm (2.41 x 3.94 x 6.73")
Weight: 0.68 kg (1.5 lbs)
