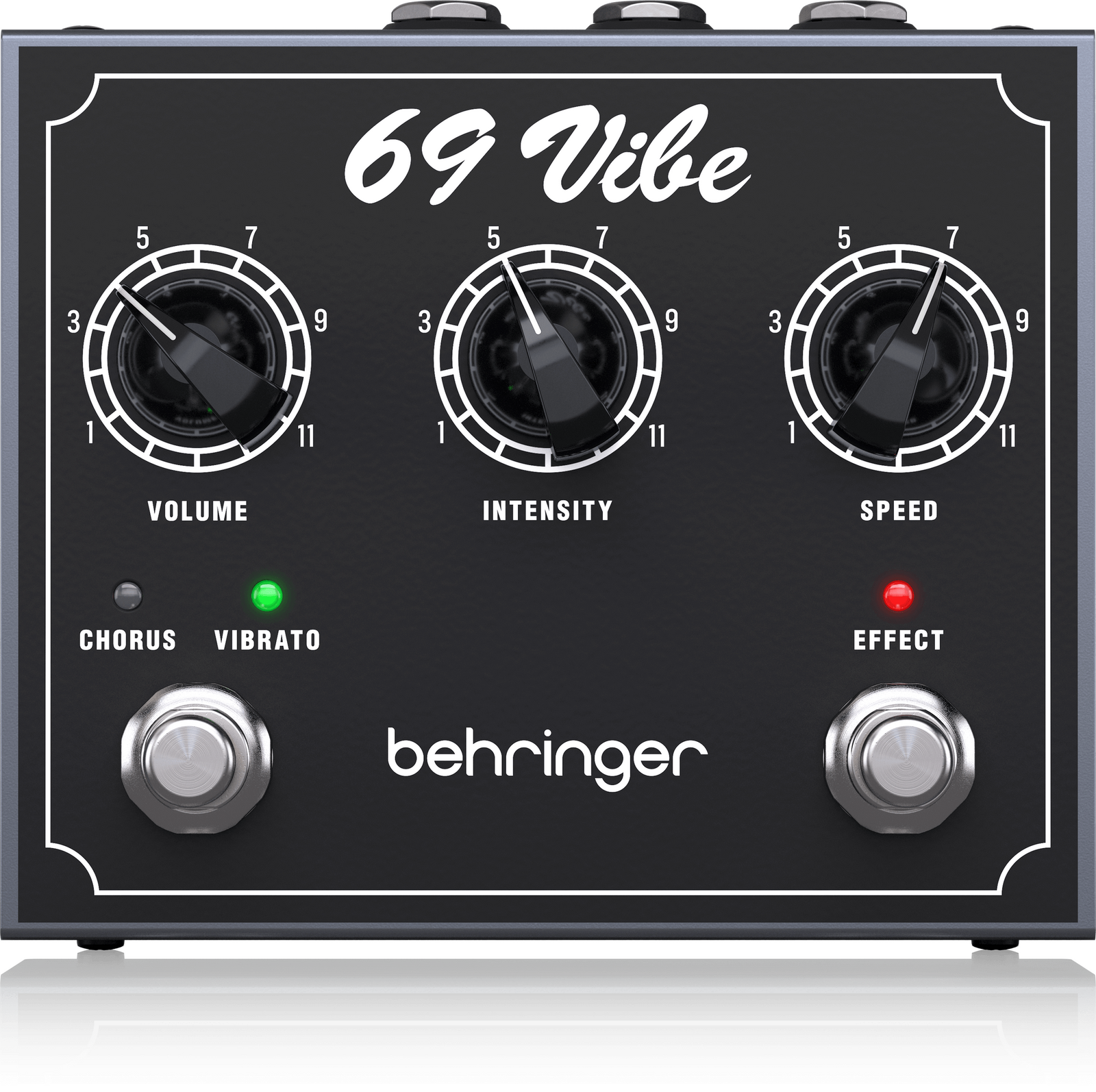

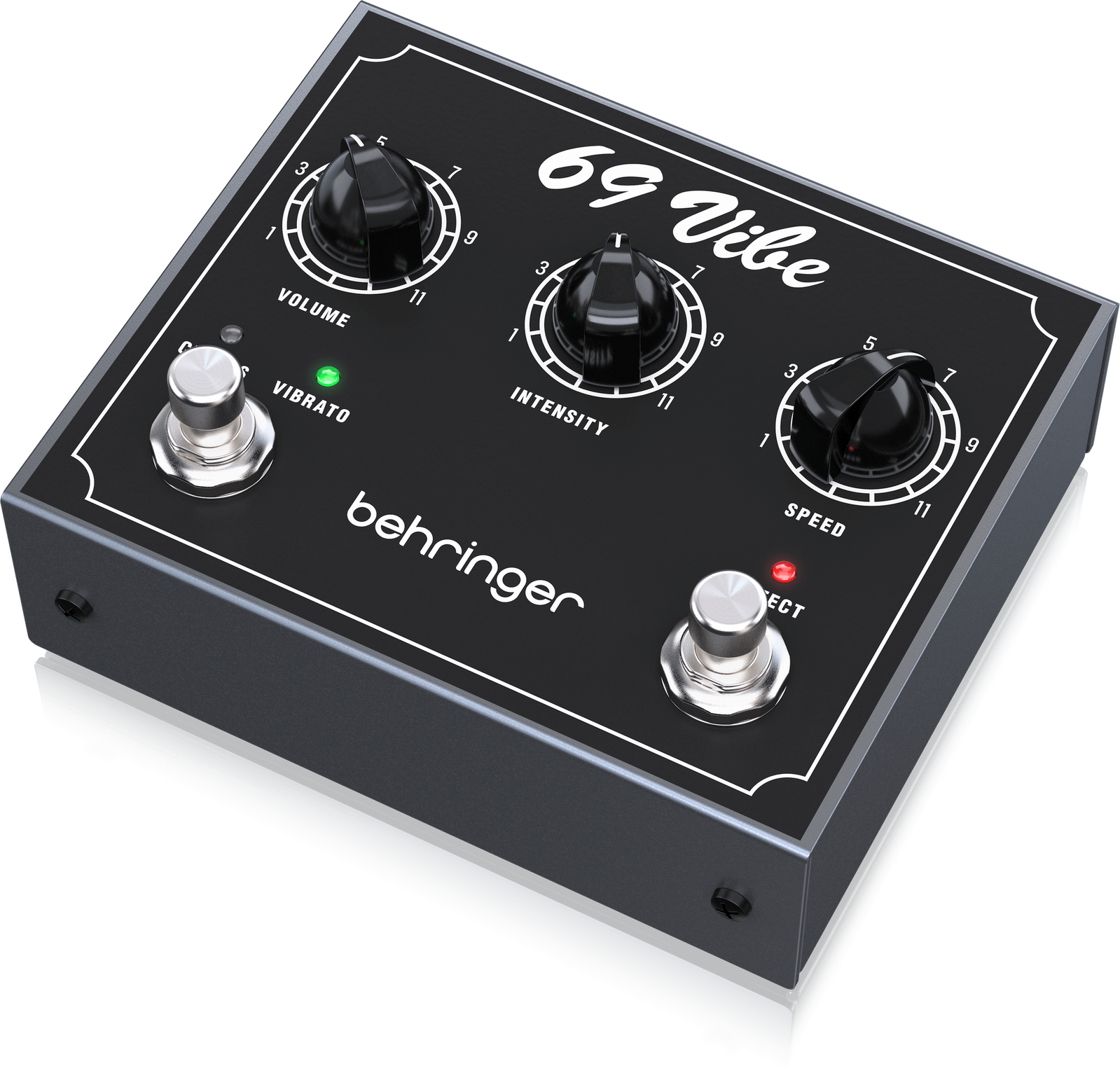

Behringer 69 Vibe

In the quest to replicate the sound of a Leslie rotating speaker, the original Shin-Ei Uni-Vibe from Japan ended up introducing a wholly unique effect that made it synonymous with late 60s rock. The signature warble and undulation surrounding an overdriven guitar tone became the signature sound of the legendary Jimi Hendrix in hits such as Foxy Lady, Purple Haze and Machine Gun. That sound could eventually be heard in Pink Floyd’s Breathe and Pearl Jam’s Black.

The Behringer 69 VIBE is chock full of soul and aims to bring that same, authentic syrupy sound onto your pedal board without breaking the bank!

FEATURES

• All analog Vibe pedal which faithfully recreates sound and features of the legendary Shin-Ei Uni-Vibe

• Chorus and vibrato mode footswitch to toggle modes during live play

• Onboard speed control for convenient modern-day use

• Foot controller input to control speed via an external expression pedal

• Robust housing with authentic vintage styling

• True bypass for ultimate signal integrity

• Runs on 9 V battery or the Behringer PSU-SB DC power supply (not included)

Chorus, Vibrato? You Decide.
Just like the original, 69 VIBE allows you to toggle between Chorus or Vibrato mode with a simple footswitch which makes it super easy to change modes especially during live play. Choose between the classic Chorus mode, for some classic Hendrix vibes or Vibrato that bends your pitch up or down giving your sound a bit of movement and a pulsating effect. Depth and rate for both effects are controlled by the Speed and Intensity knobs.

Our Favorite Ways to Play
69 VIBE works great just by itself but, we’re positive it isn’t the only pedal you’ll have. Try out these great ways you can set 69 VIBE up in your pedalboard:

• First in the chain going into a fuzz like the Behringer FUZZ BENDER

• After a fuzz into an overdriven amp, this is the classic Hendrix set up and plays well with your guitar’s volume control so you can let the 69 VIBE shine when you need it to

• After your overdrives or distortions

Any of these setups are going to give you great results. Just keep playing around and see how you like it!

Amazing Flexibility
Having the 69 VIBE is like having a piece of music history at your feet. It runs on standard 9 V DC power which makes integrating into your setup a total breeze. Its rugged and reliable metal construction also gives the 69 VIBE the ability to stand up to the rigors of the road and the heaviest of stomps.

SPECIFICATIONS

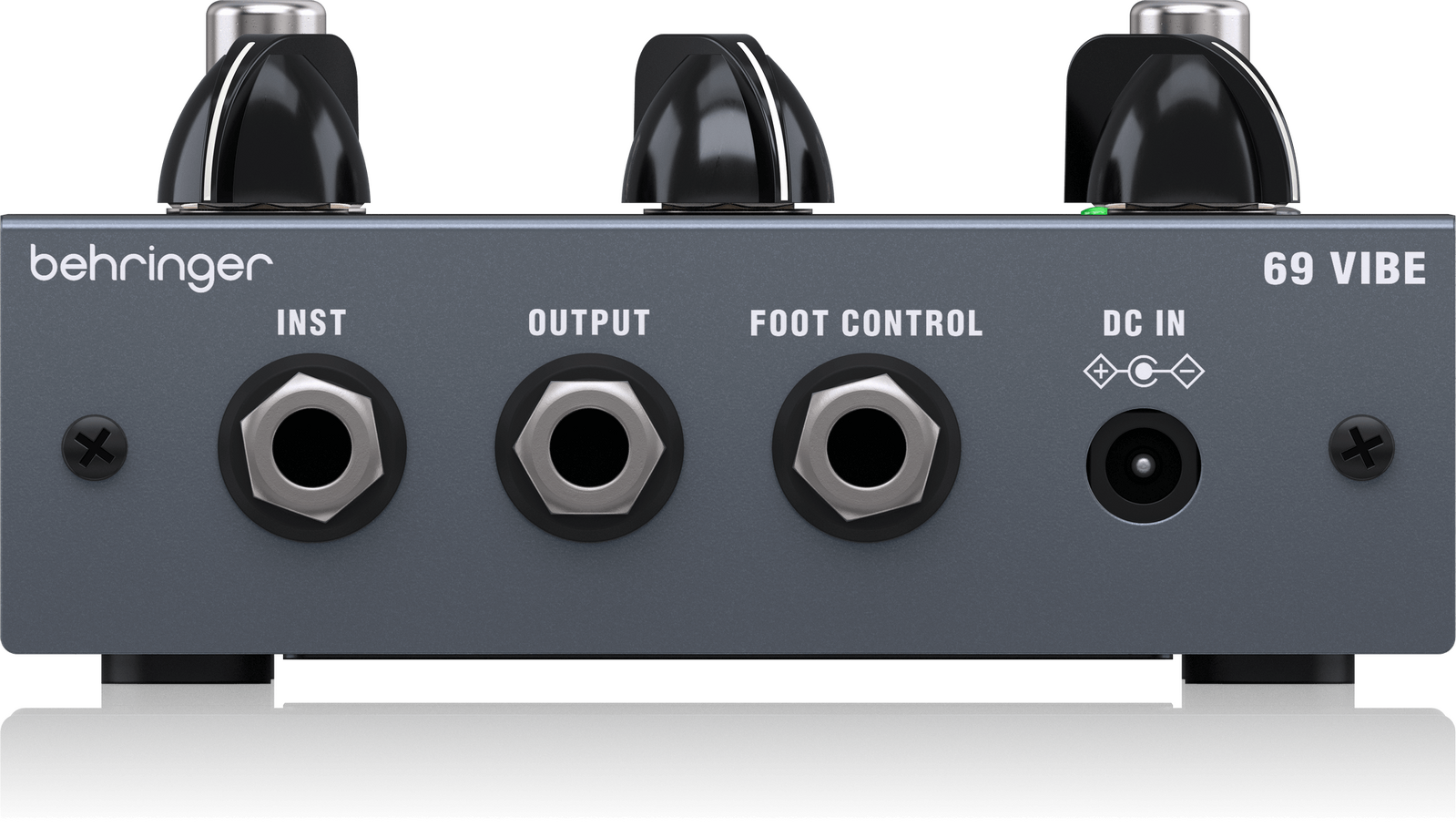

Connections
Inst
Connector: 1 x " TS, unbalanced
Impedance: 47 kΩ

Output
Connector: 1 x " TS, unbalanced
Impedance: 100kΩ
Maximum output level: +2.0dBu
Foot control: 1 x " TRS jack, 1 V / oct.
Control voltage range: 0 V to +5 V

Controls
Volume: 1 x rotary knob
Intensity: 1 x rotary knob
Speed: 1 x rotary knob
Effect on/ of: 1 x footswitch
Chorus/ vibrato switch: 1 x footswitch

System
Frequency response: 20 Hz to 20 kHz (+0 / -0.3 dB)
Signal-to-noise ratio: >66 dB
Overall gain: +2.8 dBu
