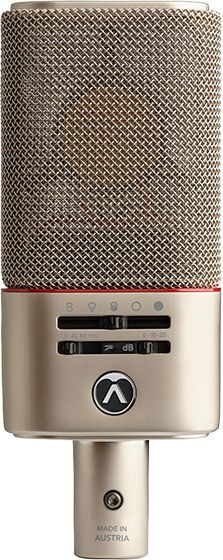

Austrian Audio OC818

Classic design meets modern innovation

The Austrian Audio OC818 multi-pattern condenser microphone combines classic design with modern innovation to go where no mic has gone before.

Our handmade CKR12 ceramic capsule reimagines the celebrated CK12 capsule to deliver exceptional detail and nuance while also handling extremely high SPL.

Each OC818 is manufactured and tested to the highest specifications at our Vienna facility, ensuring premium build quality and performance you can trust. OC818 is the most versatile condenser microphone ever made, and is destined to chart a legacy of its own.

Made in Vienna. Again.

Revolutionising your workflow
The OC818 mic system features the world’s 1st wireless control of an analog pro microphone. Unlock additional features when adding the optional OCR8 wireless transmitter/receiver to your OC818. Once paired with your mobile device, you can control polar patterns, pads and high pass-filters from the comfort of your control room in real time via the PolarPilot smartphone app.

Unleash your full sonic potential
Take your creativity to new heights with the Austrian Audio OC818 microphone and its innovative software suite. While PolarDesigner lets you morph polar patterns in post-production,  StereoCreator unlocks a world of stereo recording techniques after you recorded. And the AmbiCreator empowers you to craft immersive Ambisonic soundscapes. Experience unparalleled flexibility and sound sculpting power – revolutionize your workflow with Austrian Audio.

SPECIFICATIONS

Directional characteristic (Multi): Cardioid, Omnidirectional, Figure-8, Hypercardioid & preset/custom programmable
Frequency range: 20 Hz – 20 kHz
Sensitivity (all directions): 13 mV/Pa
Equivalent noise level: 9 dB SPL (A)
Max. SPL: 148 dB SPL (158 dB SPL)
Analog low cut filter: 40 Hz (2nd Order), 80 Hz (2nd Order), 160 Hz (1st Order down to 80Hz, 2nd Order below)
Switchable pad: -10 dB, -20dB
Impedance: 275 Ω (symmetrical)
Load impedance: > 1 kΩ
Supply voltage: 48 V (< 4mA, typical 2.1mA)
Main connector: XLR 3 pin
Second connector: Mini XLR 5 pin connector for back membrane
Dimensions: 157 x 63 x 36 mm
Weight: 360g
