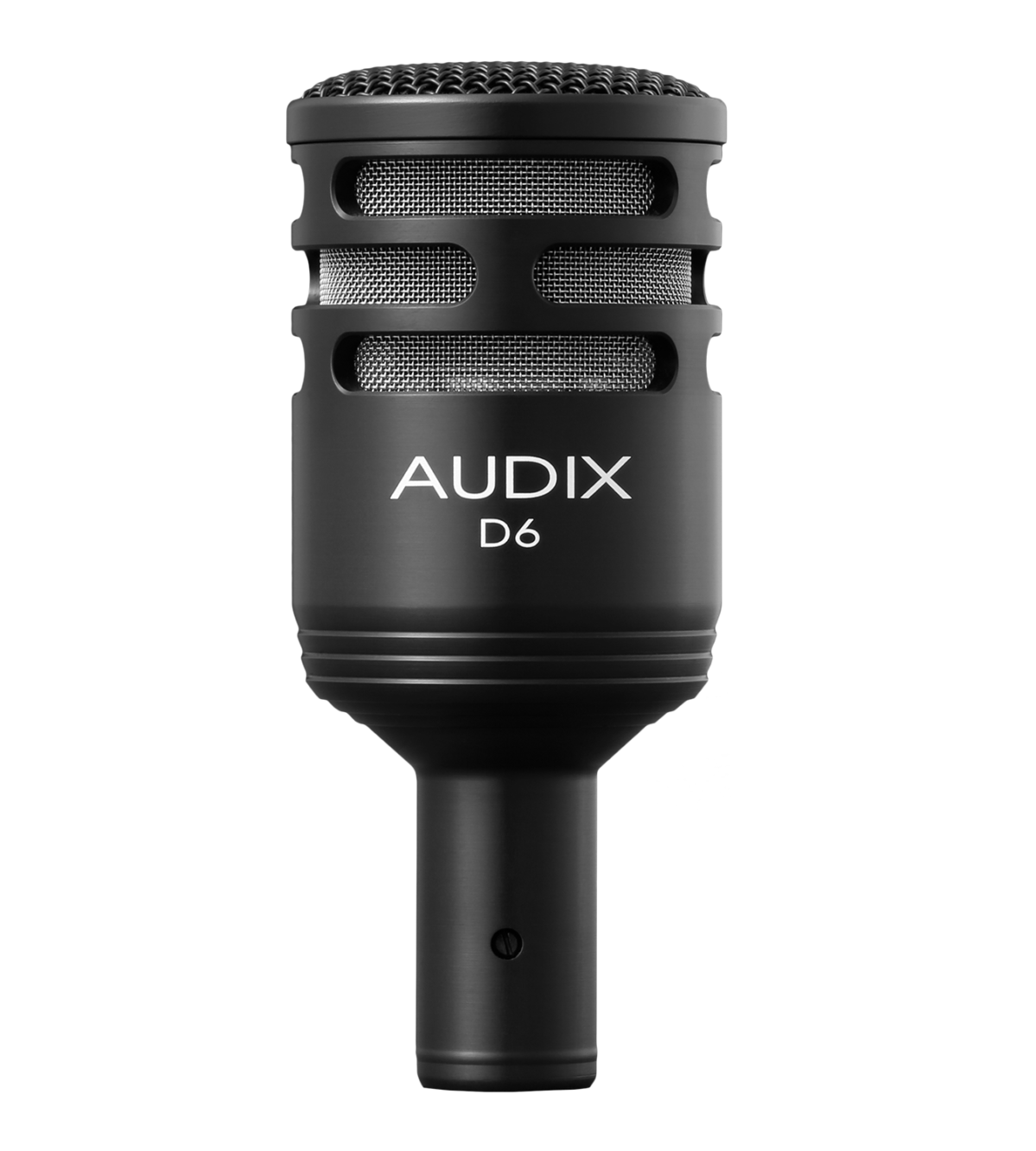

Audix D6
Professional Dynamic Instrument Microphone
The D6 dynamic instrument microphone is used for stage, studio, and broadcast applications. Designed with a cardioid pickup pattern for isolation and feedback control, the D6 drum microphone is equipped with a VLM™ diaphragm for natural, accurate sound reproduction.
Lightweight, compact, and easy to position, the D6 cardioid microphone is an excellent choice for miking instruments requiring extended low-frequency reproduction such as kick drums, large toms, and bass cabinets. The D6’s transformerless design, low impedance, and balanced output allow for interference-free performance.
Designed, machined, assembled, and tested by Audix in the USA.
| Transducer Type | Dynamic |
| Frequency Response | 30 Hz – 15 kHz |
| Polar Pattern | Cardioid |
| Output Impedance | 280 ohms |
| Sensitivity | 0.8 mV / Pa @ 80 Hz |
| Capsule Technology | VLM Type E |
| Off-Axis Rejection | >20 dB |
| Maximum SPL | ≥144 dB |
| Power Requirements | None |
| Connector | 3-pin XLRm |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
| Materials / Finish | Machined Aluminum / Black Finish |
| Weight | 254 g / 8.9oz |
| Length | 117 mm / 4.6 in |
