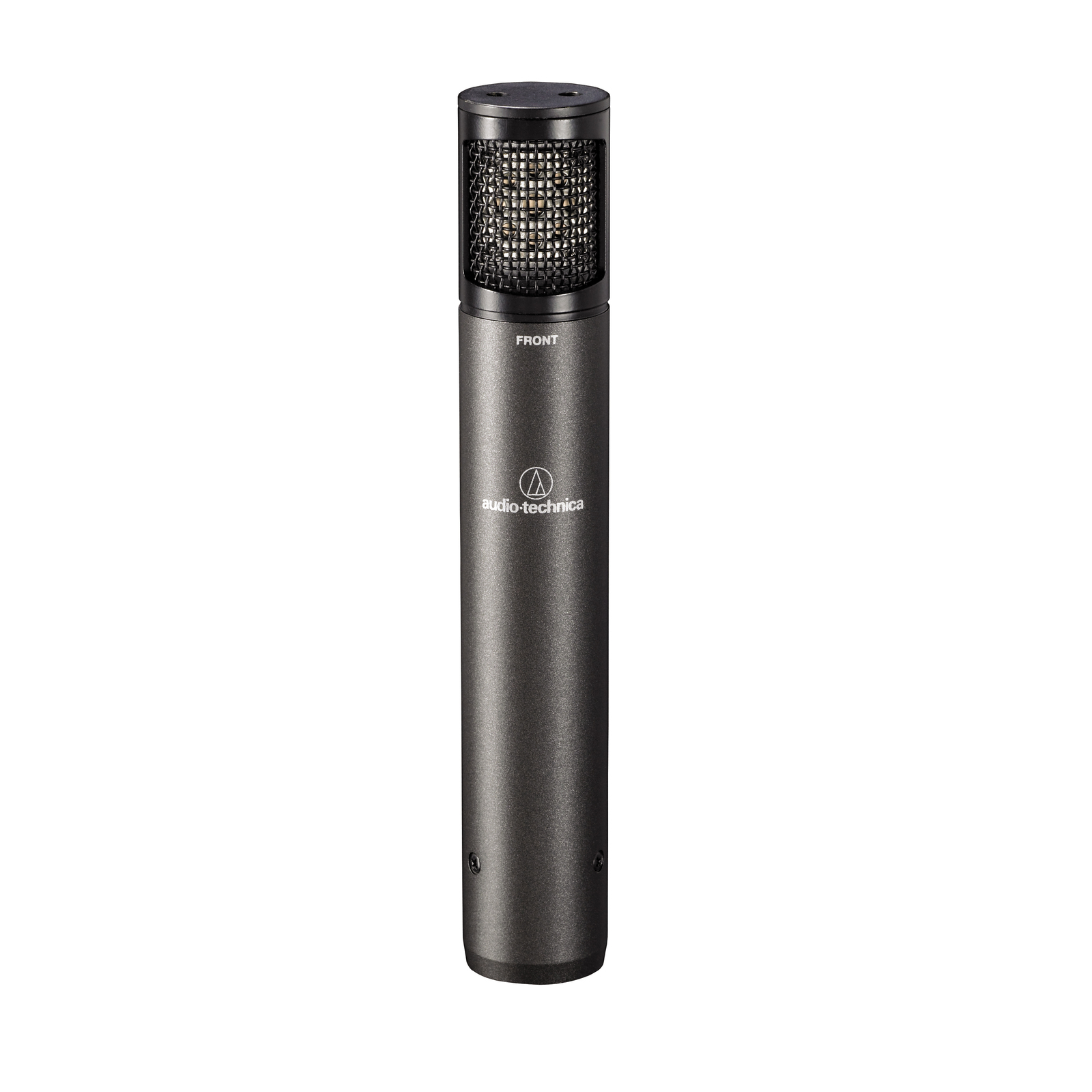

Audio-Technica ATM450

One of the new stars of the Artist Series remake, the ATM450 cardioid condenser offers an innovative side-address stick design for endless placement options and minimal obstructions.

The microphone is equipped with an integral 80 Hz hi-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The ATM450 also features a switchable 10 dB pad that lowers the microphone’s sensitivity, providing higher SPL capability for flexible use with a wide range of performers and system configurations.

The microphone’s extended flat frequency response makes it ideal for high SPLs as well as for live and amplified acoustic instruments.

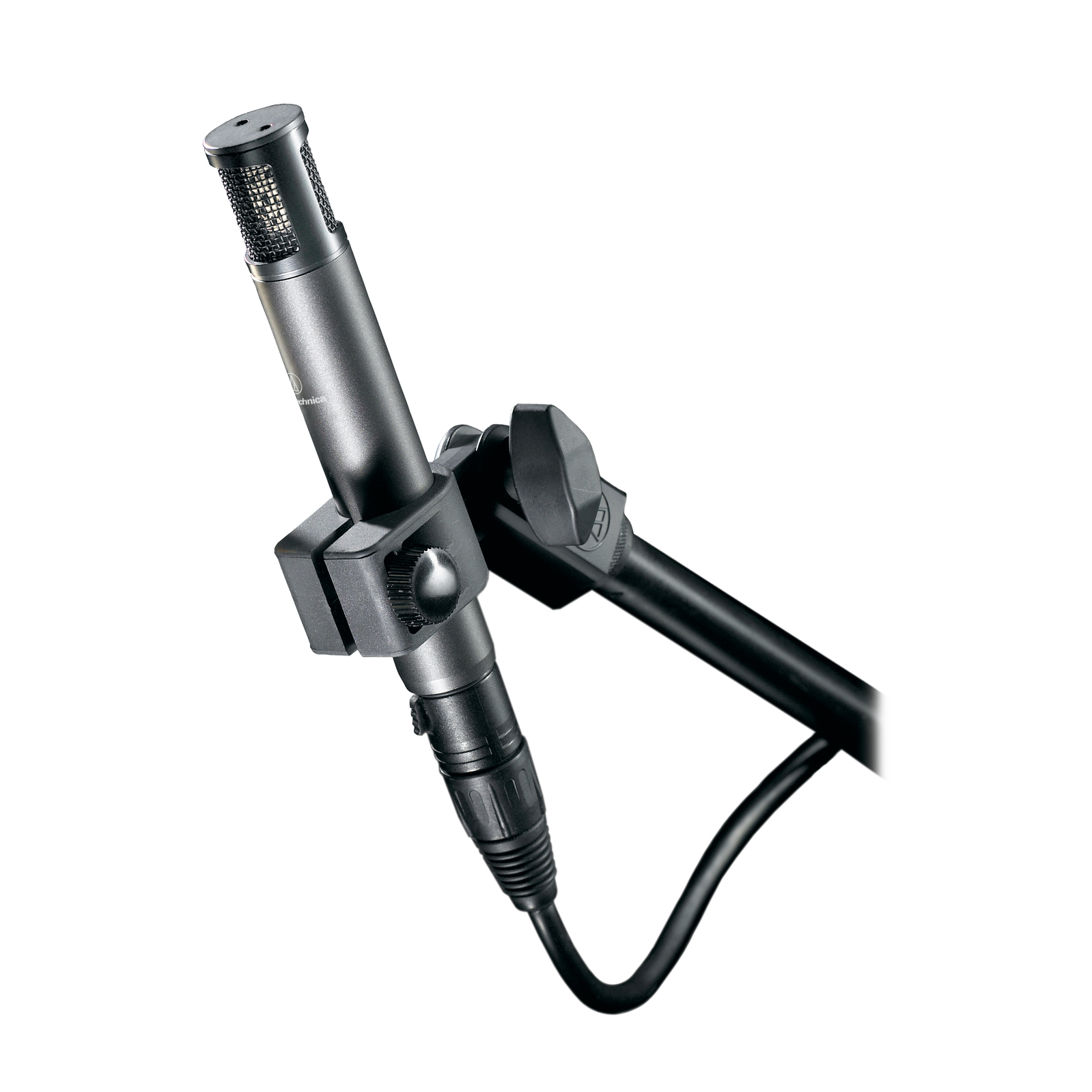

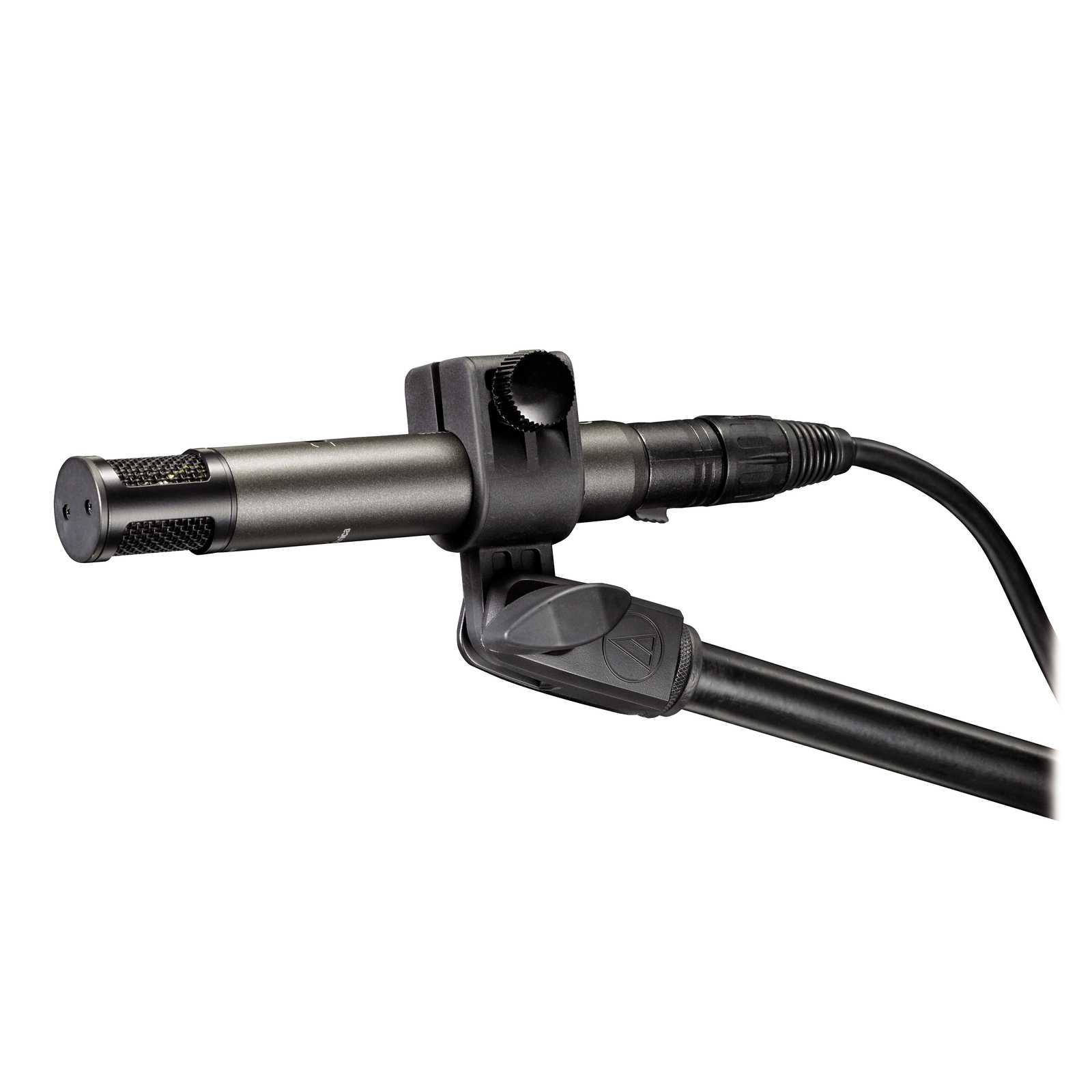

Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.

FEATURES

•  Unique side-address stick design maximizes placement options with minimal obstructions

•  Uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments

•  Integral 80 Hz HPF switch and 10 dB pad

•  Durable performance for professional applications

•  Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

•  Rugged, all-metal design and construction for years of trouble-free use

•  Includes isolation clamp for shock protection, secure mounting and easy positioning

SPECIFICATIONS

Element: Fixed-charge back plate permanently polarized condenser

Polar Pattern: Cardioid

Frequency Response: 40-20,000 Hz

Low Frequency Roll Off: 80 Hz, 18 dB/octave

Open Circuit Sensitivity: 41 dB (8.9 mV) re 1V at 1 Pa

Impedance: 200 ohms

Maximum Input Sound Level: 152 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range: 127 dB, 1 kHz at Max SPL

Signal to Noise Ratio: 69 dB, 1 kHz at 1 Pa

Phantom Power Requirement: 11-52V DC, 3.5 mA typical

Weight: 98g

Dimensions: 126.9mm long, 21mm diameter

Output Connector: Integral 3-pin XLRM-type

Accessories: AT8471 isolation clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; windscreen; soft protective pouch
