Aston Spirit Multi Pattern Microphone

The Aston Spirit is a high-performance, switchable pattern, large diaphragm condenser microphone utilising a 1” gold evaporated capsule. A switch on the mic body selects from Omni, Cardioid or Figure-of-Eight polar patterns. It is versatile enough to use with most instruments and excels on acoustic guitar and vocals. Its Aston 33 panel selected capsule is teamed with high-end transformer balanced circuitry using only the best components.

The Spirit is designed to deliver a beautifully open sound with sparkling harmonics. This highly accurate microphone gives a stunningly natural and transparent recording, capturing all the detail in the high range but without adding the harshness that some condenser microphones seem to.

The Aston Sound
Right from the start of ‘project Aston’, we engaged with some of the top audio professionals in the industry to create a development panel to be our ears, while we focussed on perfecting every tiny detail in our mics, to finally produce what we believe to be the very best products in their class.

Wave-Form Spring Head

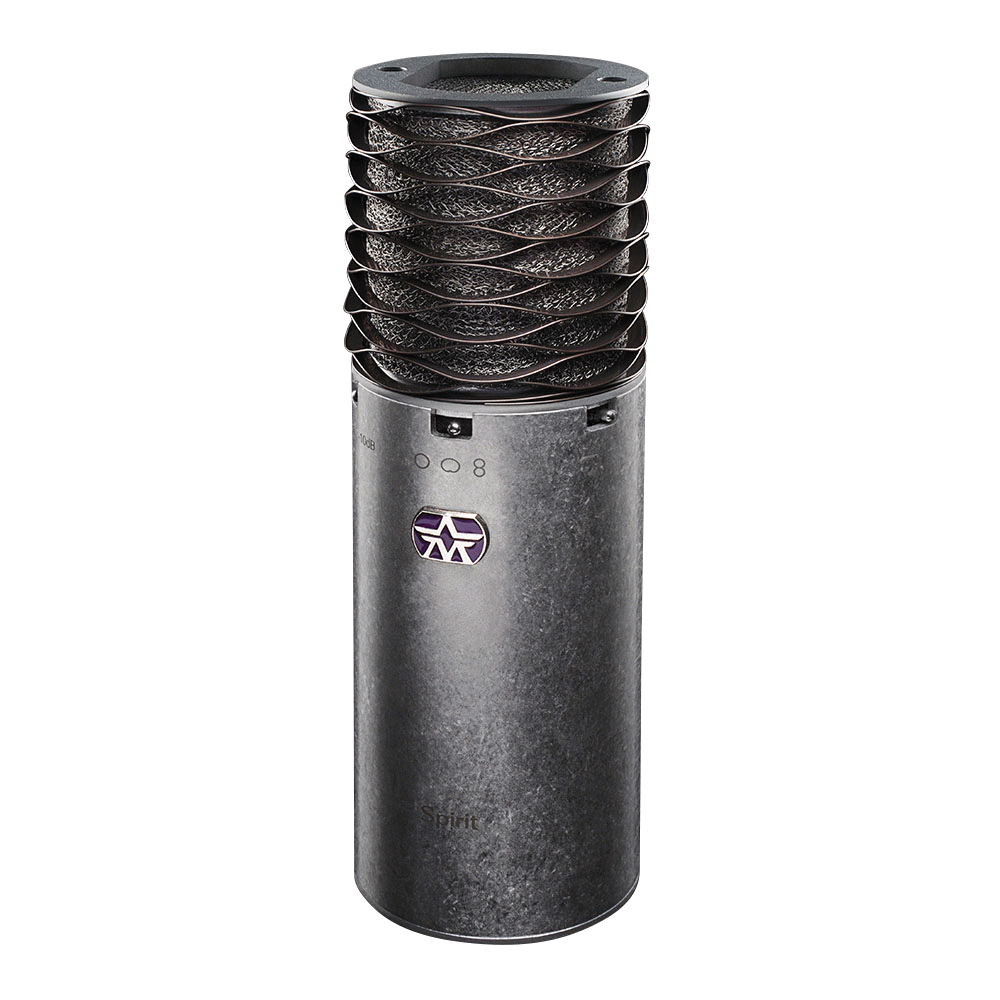

The Aston Spirit has our signature wave-form spring head. This unique design not only looks great, but delivers an unprecedented degree of protection for the heart of your microphone, the capsule. The shock resistant wave-form design allows the head of the mic to distort if given a heavy knock, and then return to its normal position, without any damage. It also offers a degree of off-axis rejection, helping to eliminate unwanted artefacts from your recordings

Built In Pop Filter
Aston’s vocal condenser microphones have an exclusive mesh-knit pop filter built into the wave-form head. The random weave allows sound to pass while drastically eliminating unwanted plosives at source. It also shields against multiple wavelengths of electromagnetic radiation making our microphones ideal in critically sensitive electronic applications. This completely encapsulating, single piece, mesh cage is formed in stainless steel, so won’t rust with use, and can even be removed and washed.

Direct to stand mounting

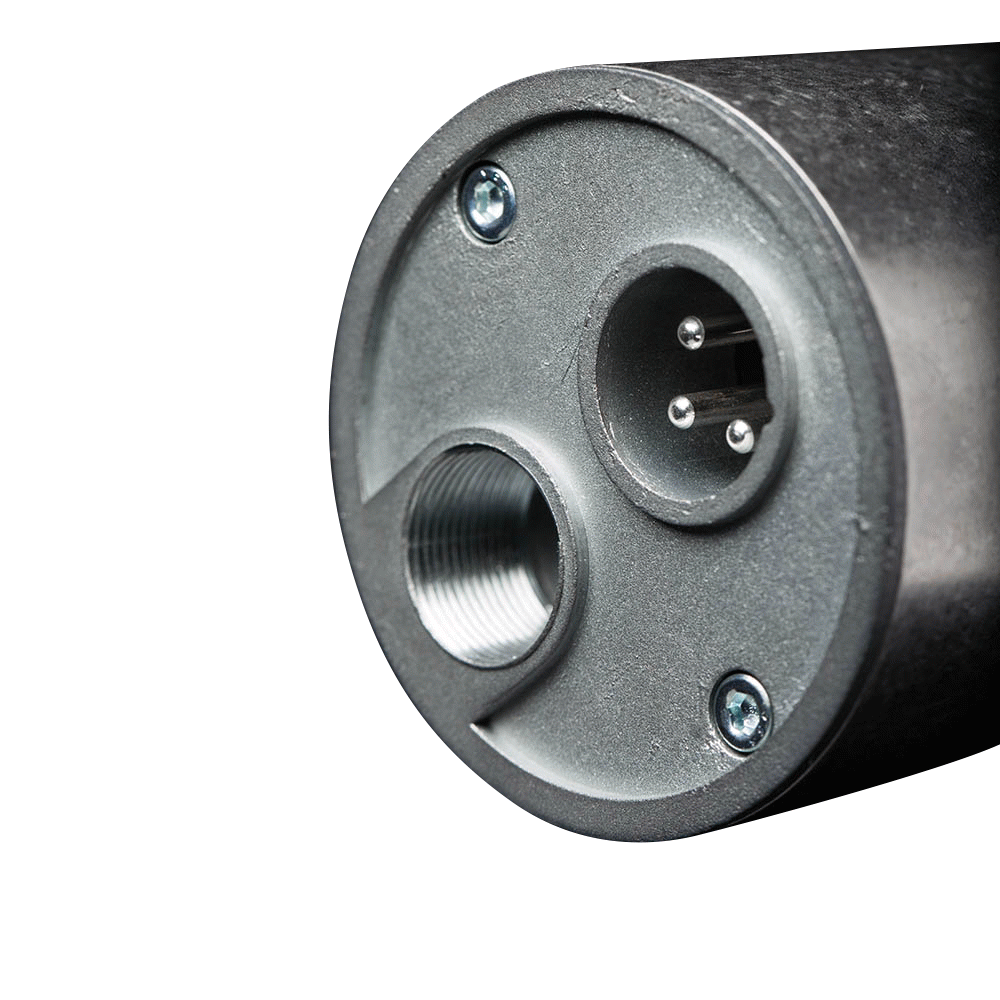

Yet another unique design element of the Aston Spirit is the use of custom moulded end caps with integrated XLR and universal stand thread adaptor. Because the internal shock absorption system is so good, you can mount the microphone directly to a stand via this built in thread and interchangeable thread adapter with outstandingly low handling noise. The design also makes Aston microphones extremely easy to repair and maintain.

Chassis
Part of the beauty of our microphones is the custom finish of each chassis. There are no mass-produced paint job finishes here… instead, each chassis is individually tumbled for up to 4 hours to give it a very hard-wearing, extremely beautiful, finish. To perfect the look, each microphone is separately engraved with its legends, and our brand mantra… ‘The Art of Audio’

PCB

• A superbly balanced mix of discrete and integrated electronic circuitry

• Harmonised circuit stage arrangement for easy integration from phantom power input circuitry to the capsule voltage bias

• Novel non-linear voltage/current source rectification to provide controlled amplification and smooth/ clear audio output

Eco-Friendly Packaging
We have put our hearts and minds into creating the most beautiful performance pieces possible with each Aston product. When it comes to packaging we believe simplicity is king. Protective, re-useable, environmentally sensible packaging that doesn’t cost the earth.

SPECIFICATIONS

Transducer Type: Condenser
Acoustic Operating Principle: Pressure Gradient
Frequency Response: 20Hz – 20kHz (+/-3dB)
Equivalent Noise Level: 14dB A-Weighted
Sensitivity at 1kHz into 1kohm: 23.7mV/Pa
Maximum SPL for THD 0.5%: 138dB
Signal-to-Noise Ratio (rel. 94dB SPL): 80dB A-Weighted
Polar pattern: Omni/Cardioid/Figure-of-Eight
Pad Switches: -20dB/-10dB/0dB
Low-Cut Filter: 80Hz
Product length: 175 mm / 6.89 in
Product width: 54 mm / 2.13 in
Product weight: 625 g / 1.38 lb
