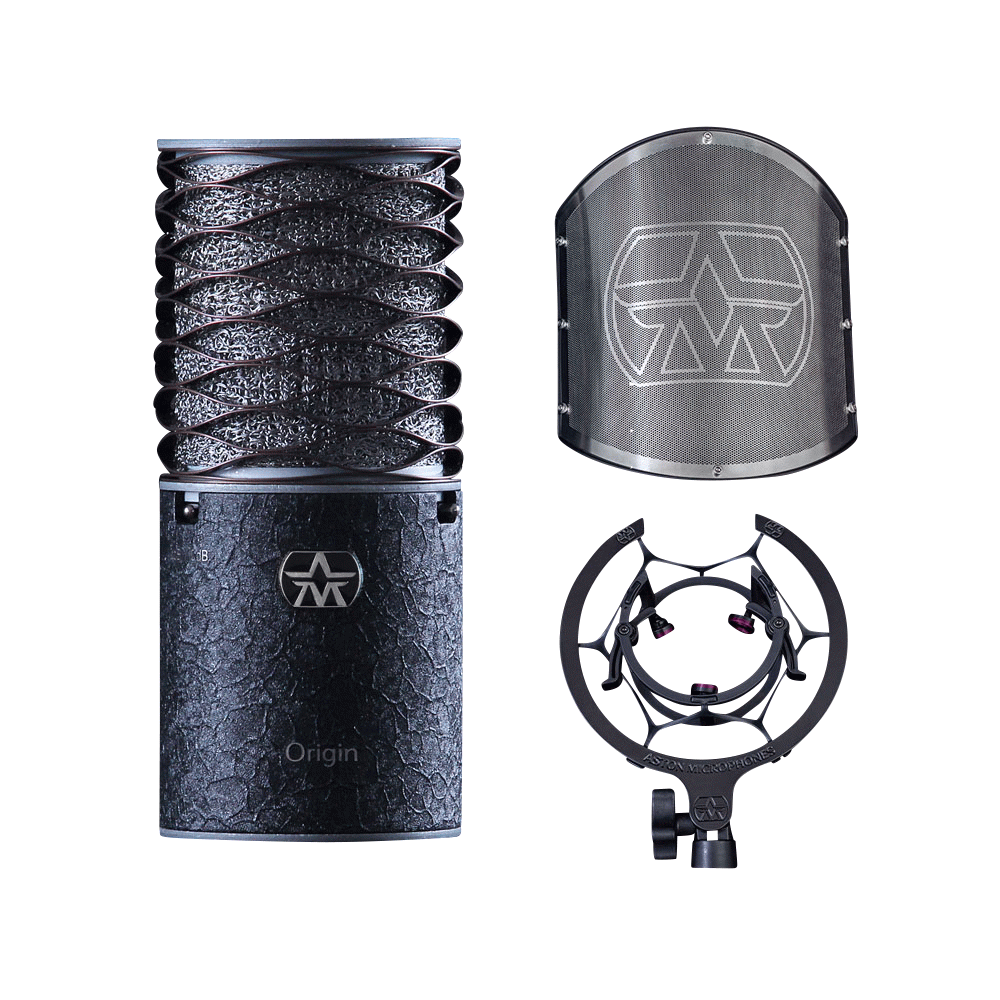

Aston Origin Black Bundle

This production kit pairs a rock'n'roll black version of Aston’s legendary game-changing microphone, the Origin, with the best-in-class Aston Swiftshield pop filter and shock mount set – everything you need for professional grade recordings of vocals, instruments and pretty much anything else you can throw at it!

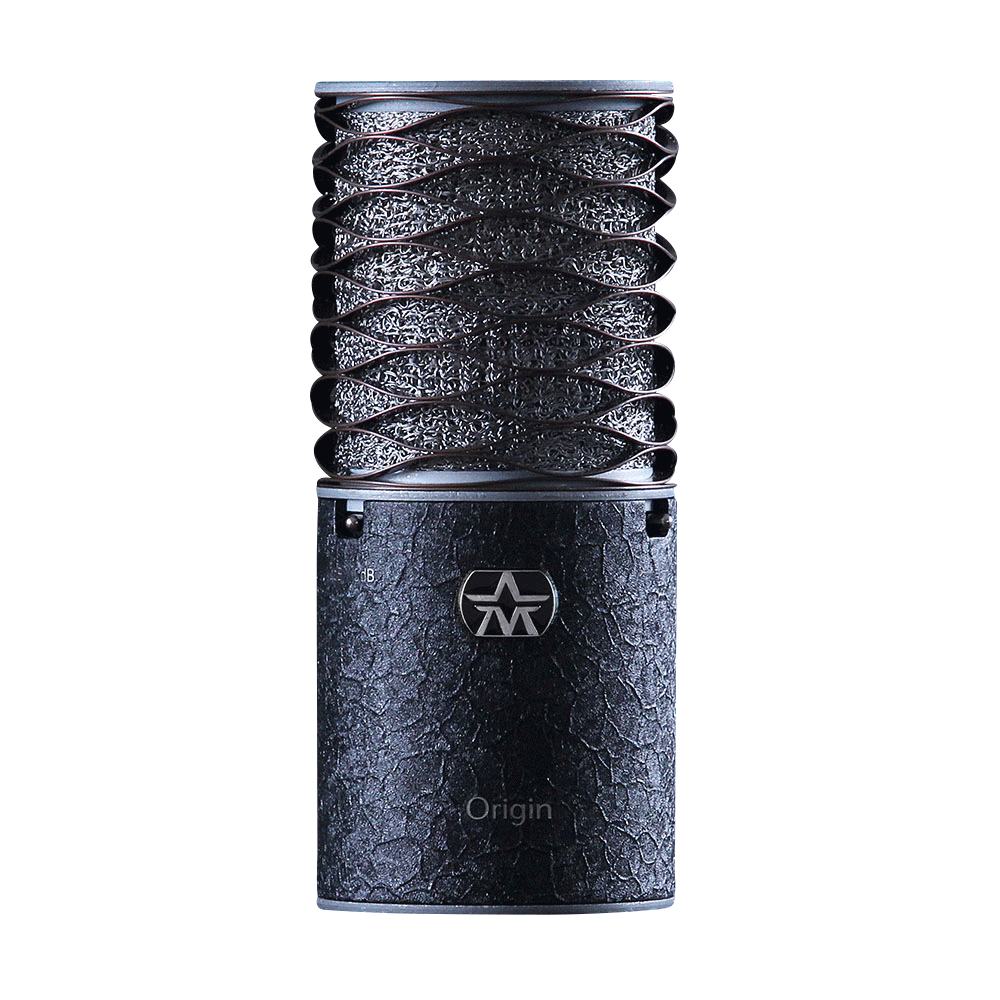

ASTON ORIGIN

The Aston Origin is a high-performance cardioid condenser microphone utilising a one inch (1″) gold evaporated capsule. It's versatile enough to use with any instrument and, for singer-songwriters, excels on acoustic guitar and vocals. Its hand-selected capsule is paired with high-end transformerless circuitry using only the finest components.

The Origin is designed to deliver direct, smooth and intimate sound for a supremely natural and transparent recording.

The Aston Sound
Right from the start of ‘project Aston’, we engaged with some of the top audio professionals in the industry to create a development panel to be our ears, while we focussed on perfecting every tiny detail in our mics, to finally produce what we believe to be the very best products in their class.

Wave-Form Spring Head
The Aston Origin has our signature wave-form spring head. This unique design not only looks great, but delivers an unprecedented degree of protection for the heart of your microphone, the capsule. The shock resistant wave-form design allows the head of the mic to distort if given a heavy knock, and then return to its normal position, without any damage. It also offers a degree of off-axis rejection, helping to eliminate unwanted artefacts from your recordings.

Built In Pop Filter
Aston’s vocal condenser microphones have an exclusive mesh-knit pop filter built into the wave-form head. The random weave allows sound to pass while drastically eliminating unwanted plosives at source. It also shields against multiple wavelengths of electromagnetic radiation making our microphones ideal in critically sensitive electronic applications. This completely encapsulating, single piece, mesh cage is formed in stainless steel, so won’t rust with use, and can even be removed and washed.

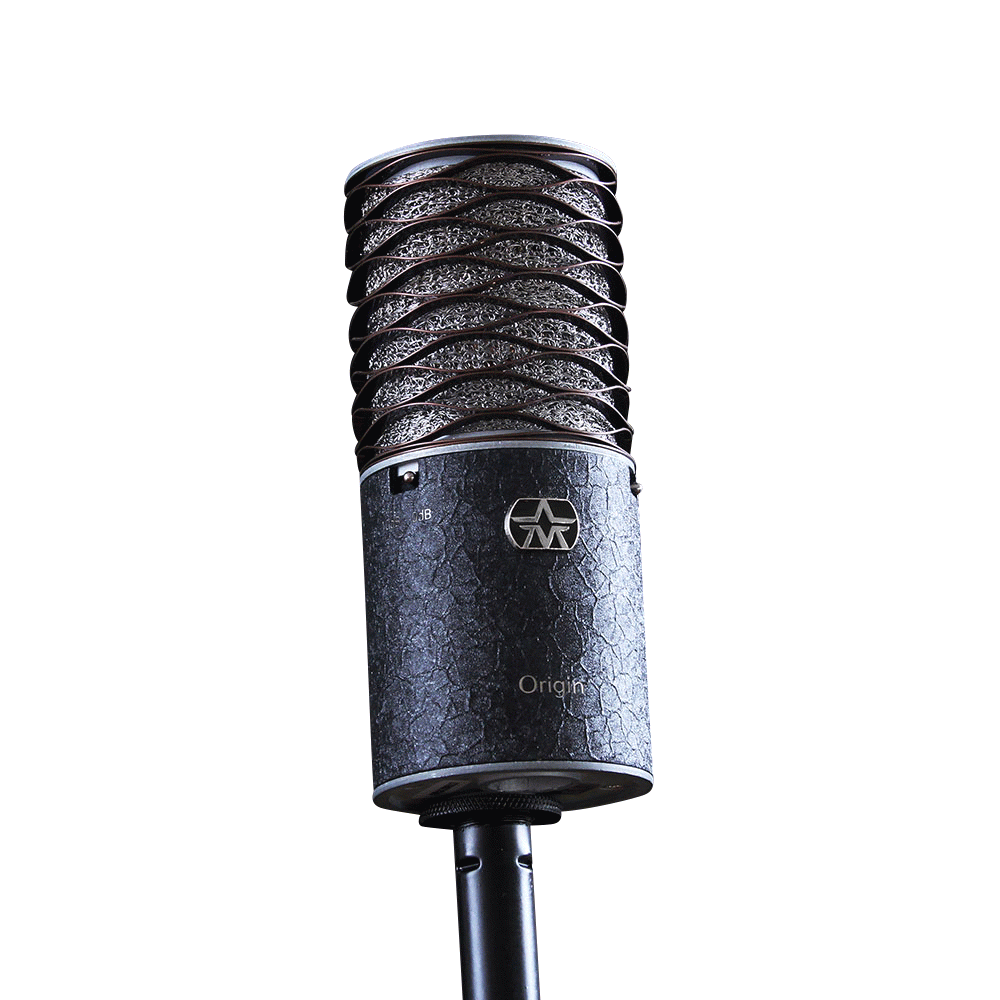

Direct to stand mounting
Yet another unique design element of the Aston Origin is the use of custom moulded end caps with integrated XLR and universal stand thread adaptor. Because the internal shock absorption system is so good, you can mount the microphone directly to a stand via this built in thread and interchangeable thread adapter with outstandingly low handling noise. The design also makes Aston microphones extremely easy to repair and maintain.

Chassis
Part of the beauty of our microphones is the custom finish of each chassis. There are no mass-produced paint job finishes here… instead, each chassis is individually tumbled for up to 4 hours to give it a very hard-wearing, extremely beautiful, finish. To perfect the look, each microphone is separately engraved with its legends, and our brand mantra… ‘The Art of Audio’

PCB

• A superbly balanced mix of discrete and integrated electronic circuitry

• Harmonised circuit stage arrangement for easy integration from phantom power input circuitry to the capsule voltage bias

• Novel non-linear voltage/current source rectification to provide controlled amplification and smooth/ clear audio output

Eco-Friendly Packaging
We have put our hearts and minds into creating the most beautiful performance pieces possible with each Aston product. When it comes to packaging we believe simplicity is king. Protective, re-useable, environmentally sensible packaging that doesn’t cost the earth.

SPECIFICATIONS

Transducer Type: Condenser
Acoustic Operating Principle: Pressure Gradient
Directional Polar Pattern: Cardioid
Frequency Response: 20Hz – 20kHz (+/-3dB)
Equivalent Noise Level: 18dB A-Weighted
Sensitivity at 1kHz into 1kohm: 23.7mV/Pa
Maximum SPL for THD 0.5%: 127dB
Signal-to-Noise Ratio (rel. 94dB SPL): 76dB A-Weighted
Pad Switch: -10dB
Low-Cut Filter: 80Hz
Product length: 125 mm / 4.92 in
Product width: 54 mm / 2.13 in
Product weight: 450 g / 0.99 lb

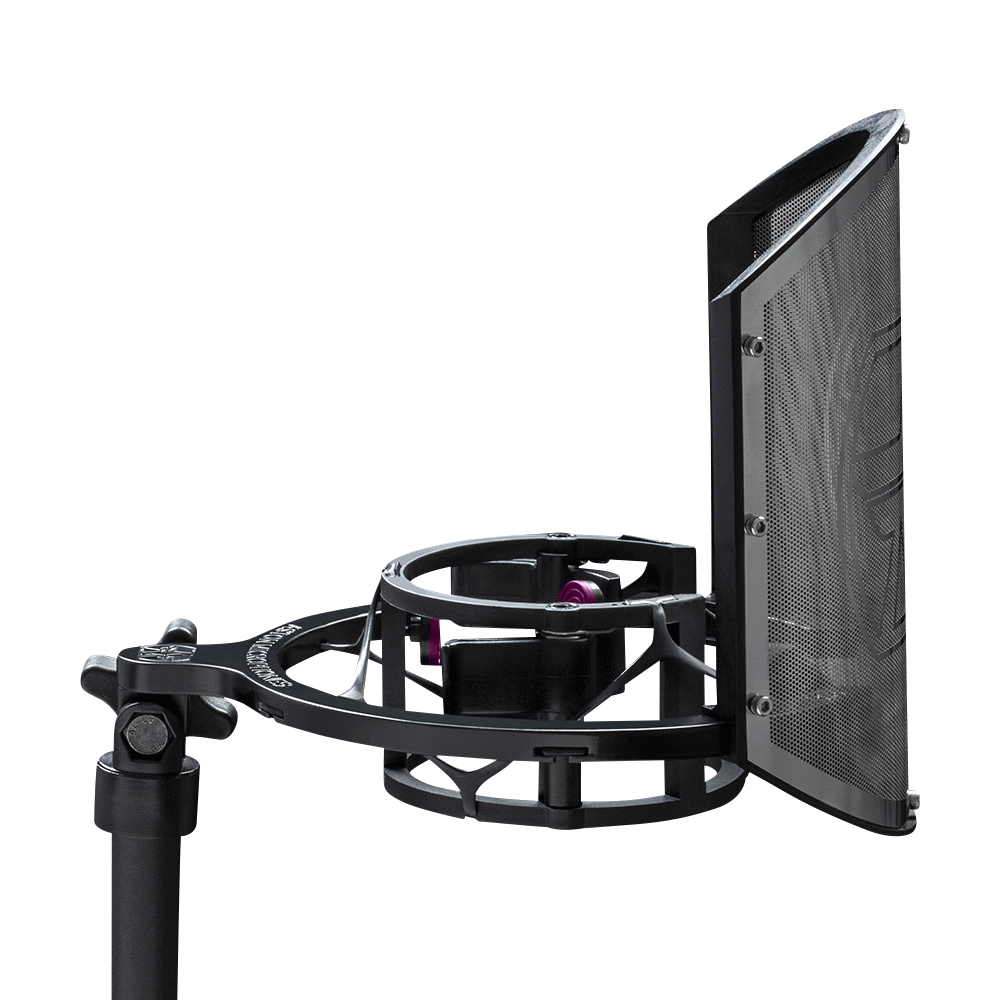

ASTON SWIFTSHIELD

The Aston SwiftShield combines the Swift shock mount and the Shield pop filter to provide the perfect setup for your Spirit mic. The Aston Swift shock mount takes microphone mounting to the next level of ease. With 2 quick release spring clips designed to fit the Spirit, Origin, and a wide range of other mics from 40-60mm diameter, mounting your microphone takes seconds.

Swift
We have reconceived the shock system, and as with all our products work from the ground up on an entirely new design idea. The ‘ShockStar’ suspension eliminates the need for fiddly rubber bands but offers a high level of elasticity for maximum isolation. As with all Aston products, the use of novel materials and our unique, architectural, approach to design is setting new standards for the industry.

Shield
The Shield pop filter itself features a unique, solid stainless steel shield, with precisely acid etched hexagonal filter holes, to give crystal clear vocals, with a perfect acoustic performance for plosive (pop) control. It also presents a large surface area and curves around the mic, so vocalist movement is never an issue.

• Universal mic mount - fits mics 40 to 60 mm diameter

• Ultimate mechanical isolation with Aston’s ‘ShockStar’ technology

• Super-hard-wearing Aluminium and glass-fill nylon construction

• Ultra-swift proprietary mounting system

• Solid stainless steel pop shield with ‘Hextech’ filter holes
