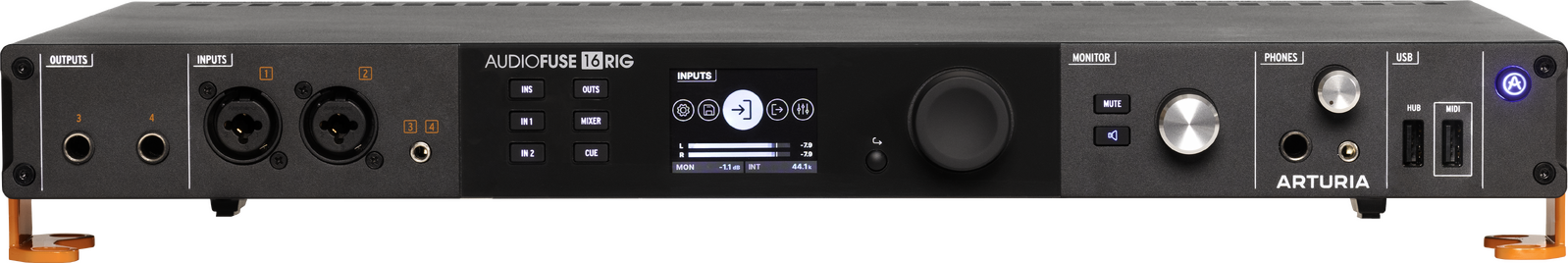

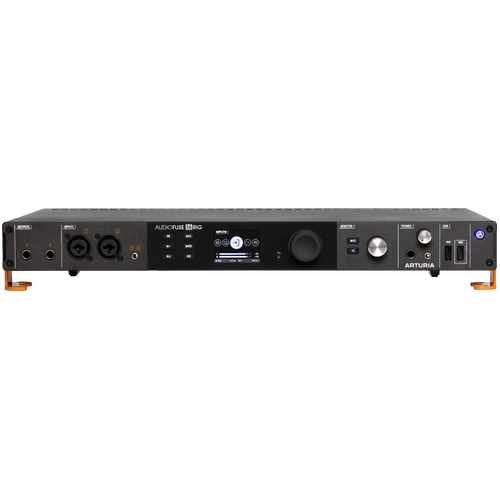

Arturia AudioFuse 16Rig

AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, always sounding pristine, and always ready to go.

FEATURES

16 x TRS analog inputs

• Includes 2 x high-quality digitally-controlled preamps

• Inputs 3 & 4 also available as 3.5mm stereo input

12 x analog outputs

• Includes 8 x DC-coupled TRS line outputs

• Stereo monitor outputs

• 6.35mm front-panel outputs for reamping, dual-headphones

2 x ADAT in, 2 x ADAT out

• Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz

Wordclock in & out
1 x MIDI in, 2 x MIDI out/thru

• 5-pin DIN connectors

• Route MIDI standalone

Low-latency USB-C connection

• Class-compliant MIDI

• 3 x USB hub connections

Two internal standalone mixers

• No computer connection needed

• Cue mixer for sub-mixing and added flexibility

• Main mixer controllable by MIDI

Color display with rotary control & menu buttons
Desktop or 1U rackmount configuration
Includes AudioFuse Control Center
Includes AudioFuse Creative Suite

• Analog Lab Intro

• Comp DIODE-609* NEW

• Pre 1973

• Pre V76

• Pre TridA

• Filter MINI

• Chorus JUN-6

• Comp FET-76

• Delay TAPE-201

• Rev PLATE-140

• Phaser BI-TRON

Make your sound count
Introducing an interface that lets you leave everything connected, route anything to anything, and be more creative with your projects.

A workhorse hub of connections and smart features designed to get the job done, no matter the complexity. A powerful, reliable production tool that can be molded to suit your audio setup, your workflow, and your sound.

A standalone mixer
For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching.

Intricate audio routing
Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick ‘connect anything and everything’ configuration.

Quantity, meet quality
Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it’s red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.

Choose your workflow
Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig’s settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.

Smart design
Sometimes it’s the little things that matter most. You need your gear to complement and enhance the way you work, and that’s the driving force behind AudioFuse 16Rig.

See how every piece of the AudioFuse 16Rig puzzle fits together to deliver a dream interface for audio & music hardware lovers.

Premium FX included
Every AudioFuse interface comes with an ever-evolving suite of creative plugins curated from our award-winning FX Collection. Refine any incoming audio with vintage studio tools, get experimental with contemporary effects, and embark on a journey through classic & modern sounds with Analog Lab.

AudioFuse Range - The new studio reference
The AudioFuse interface range connects your computer to the world of music. Record with the highest quality, monitor with absolute precision, and bring all of your gear together to create the music you always wanted to.

High performance recallable preamps
The superb inputs of our interfaces give you the most vibrant, accurate sound around, with practically zero noise even at max gain, and enormous dynamic range. Be true to your music.

Analog signal path
The highest quality components are used in the input and output signal paths of the AudioFuse series, giving you an audiophile-quality experience with no compromise.

Powerful monitoring
Multiple outputs, integrated A/B switching, monitor mix options, and even headphone outputs with both 3.5mm and 6.35mm connectors. The AudioFuse makes monitoring a joy.

Huge versatility
Each AudioFuse interface has its own unique set of features designed to make recording as fun and easy as possible.

SPECIFICATIONS

No matter what spec you look at, you'll find uncompromising quality at every point.

Line Inputs
Input impedance: 20kΩ (symmetric), 10kΩ (asymmetric)
Maximum input level Rear: +24dBu, Front +22dBu
Pad mode Rear: -12dB, Front: -10dB
Frequency response: 20Hz to 20kHz +/-0.06dB typical
Dynamic range: 118dB (A-weighted)
THD+N @ 1kHz: -113dB (A-weighted)

Line Outputs (DC coupled)
Output impedance: 240Ω balanced, 120Ω unbalanced
Maximum output level: +24dBu
Frequency response: 20-20kHz +/-0.04dB
Dynamic range: 120dB (A-weighted)
THD+N @ 1kHz: -106dB (A-weighted)
DC voltage amplitude: +/-8.7V (asymmetrical)

Speakers Outputs
Output impedance: 240Ω balanced, 120Ω unbalanced
Maximum output level: +20dBu
Frequency response: 20-20kHz +/-0.02dB
Dynamic range: 126dB (A-weighted)
THD+N @ 1kHz: -114dB (A-weighted)

Instrument Input
Input impedance: 1.1MΩ asymmetric
Maximum input level: +20dBu
Gain range: 55dB
Pad mode: -10dB
Frequency response: 20Hz to 20kHz: +/-0.1dB typical
Dynamic range: 114dB (A-weighted)
THD+N @ 1kHz: -105dB (A-weighted)

Microphone Preamps
Input impedance: 2,7kΩ
Maximum input level: +22dBu
Gain range: 55dB
Pad mode: -20dB
Equivalent Input Noise (EIN): -129.5dBu (A-weighted)
Frequency response 20Hz to 20kHz: +/-0.08dB
Dynamic range: 117dB (A-weighted)
THD+N @ 1kHz: -110dB (A-weighted)

Phones
Output impedance: 5Ω
Maximum output level: +14.4dBu
Dynamic range: 109dB (A-weighted)
Power: @ 33ohm @1%:THD 271mW @-78dB THD
THD+N @ 1kHz: -103dB (A-Weighted)

What's in the box

Box content:

• AudioFuse 16Rig unit

• Power supply

• 2x USB cable

Instrument dimensions: 17.3 x 11.6 x 1.7 inches (493 x 294 x 43mm)

Platform Requirements

Windows

• Win 10+ PC: 4 GB RAM; Intel i5 CPU or faster

• 1GB free hard disk space

• OpenGL 2.0 compatible GPU

Apple

• 10.13+: 4 GB RAM; Intel i5 CPU or faster

• 1GB free hard disk space

• OpenGL 2.0 compatible GPU
