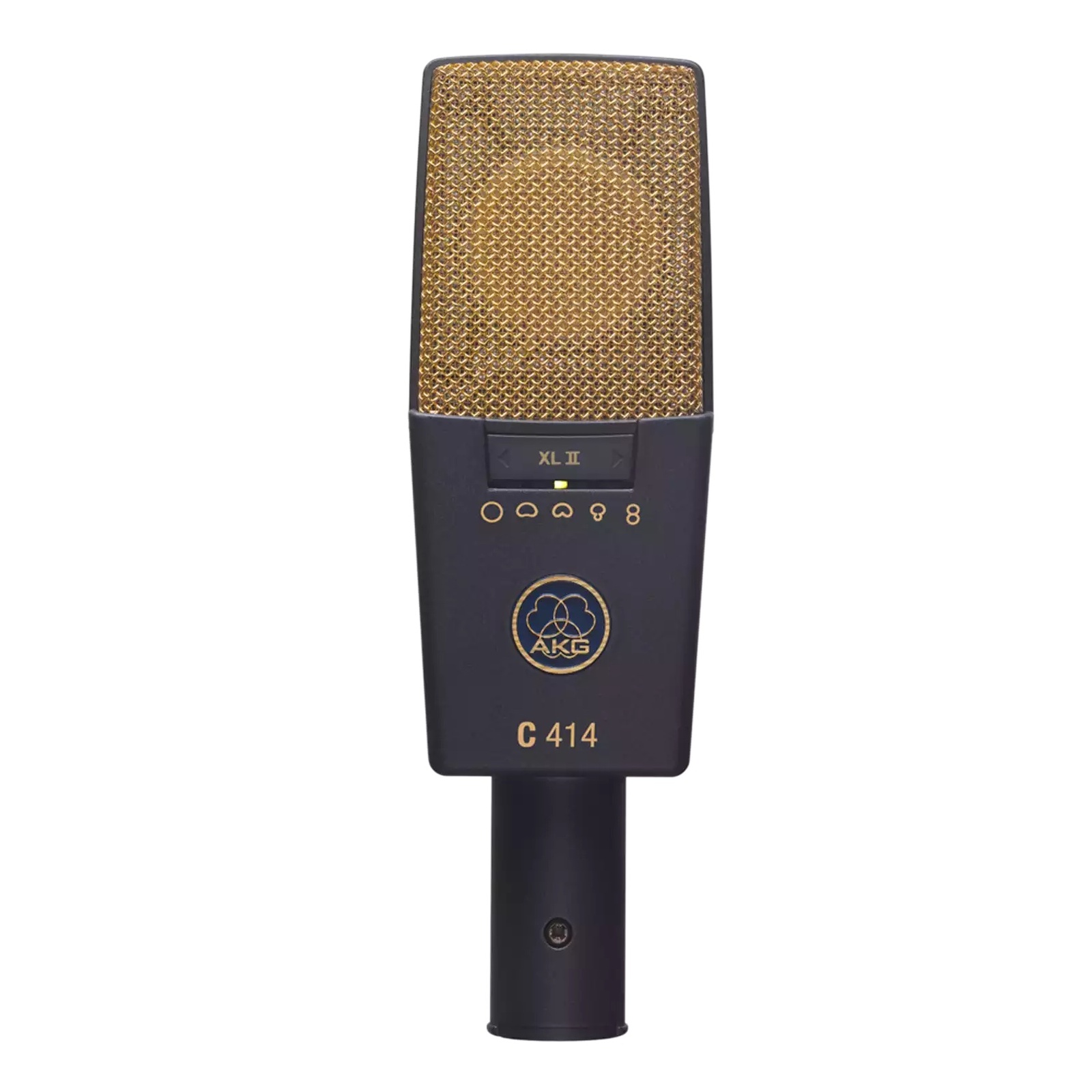

AKG C414 XLII
Condenser Microphone
The classic C12 sound
The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.
The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.
Sonic character of famous AKG C12
Delivers astounding sound quality for lead vocals and solo instruments
Nine selectable polar patterns
For the perfect setting for every application
Three attenuation levels (-6/-12/18dB)
For close-up recording or high-output sources of up to 158dB SPL
Three switchable different bass-cut filters
To reduce wind noise, stage vibration or proximity effect
Overload warning with audio peak hold LED
To detect shortest audio peaks
SPECIFICATIONS
Audio frequency bandwidth: 20 - 20000 Hz
Equivalent noise level: 6 dB-A
Sensitivity: 23 mV/Pa
Signal to Noise: 88 dB-A
Preattenuation Pad: -6; -12; -18 dB
Bass cut filter: 160; 80; 40 Hz
Electrical impedance: 200 Ohms
Recommended load impedance: 2200 Ohms
Polar Patterns: Omnidirectional, Wide Cardioid, Cardioid, Hypercardioid, and Figure of Eight
Dimensions
Length: 38 mm
Width: 50 mm
Height: 160 mm
Net Weight: 300 g
Design
Finish: Dark gray/Gold
Audio Output
Type: Balanced XLR
Gender: Male
Contacts: 3-pin
Powering Interface
Voltage: 44 to 52 V
Current: 4.5 mA
Application
Pro Studio: Yes
Instrument
Vocals: Yes
Piano / Strings: Yes
Horns / Woodwinds: Yes
