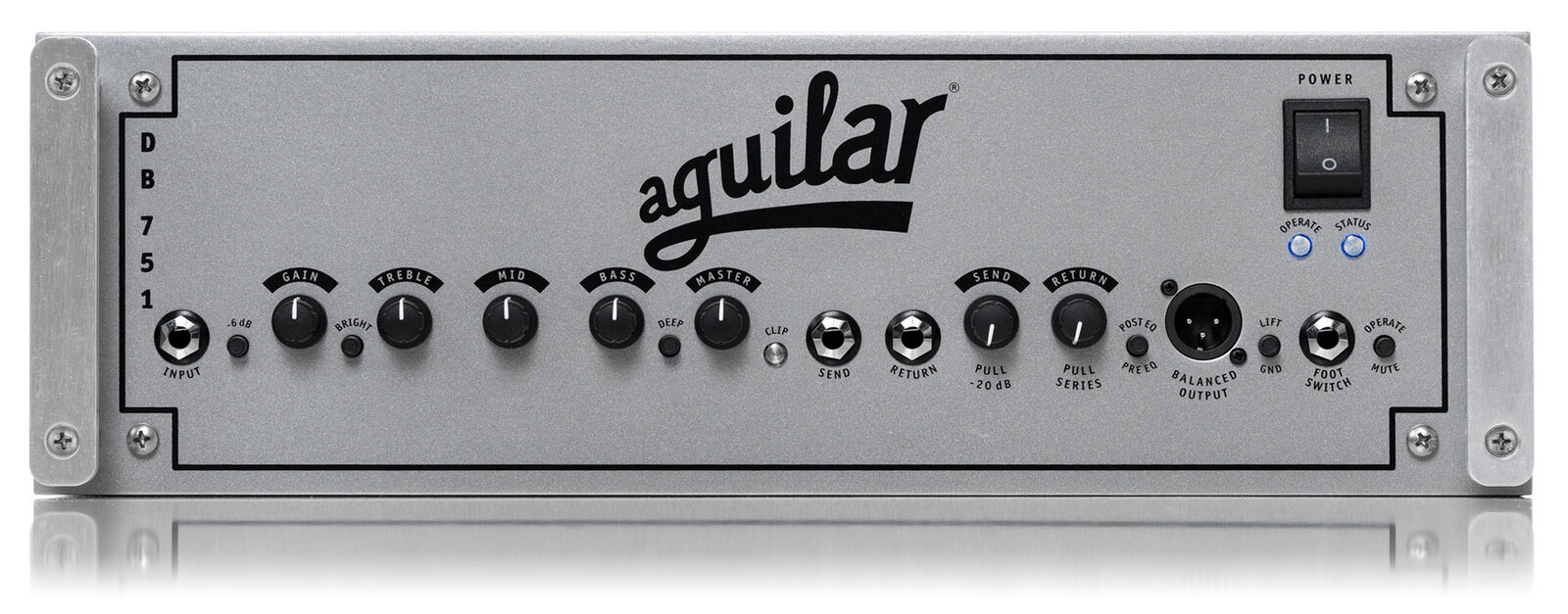

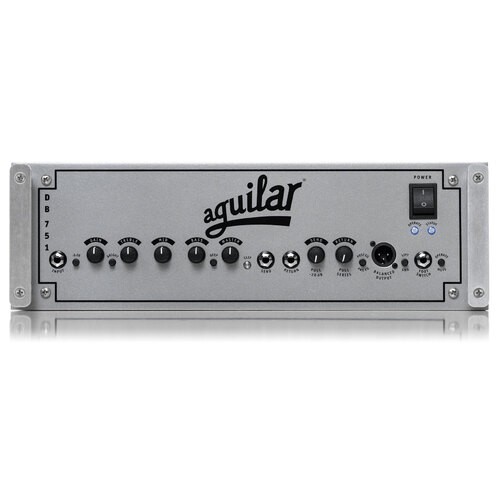

Aguilar DB 751
750-Watt Hybrid Bass Head
THE DB® 751 COMBINES THE LEGENDARY TUBE-DRIVEN TONE OF THE DB® 750 WITH GREATER EQ CONTROL.
A perfect combination of raw power and excellent tone, the DB® 751 continues the legacy set by the world famous DB® 750.
Delivering 975 Watts at 2 ohms and 750 Watts at 4 ohms, this amp has the headroom you need to play any size venue.
FEATURES
Self-Diagnostic Protection Circuit and Thermal Overload Protection Circuit (both with LED indicators)
Power Output: 975 watts @ 2 ohms, 750 watts @ 4 ohms, 400 watts @ 8 ohms
Preamp Section: Three 12AX7’s
Power Section: 12 complimentary lateral MOSFETs
Transformer: Custom Aguilar toroidal power transformer
EQ Section: passive tone stack with active midrange element
Bass: +12 / -12 @ 40Hz
Midrange: +12 / -12 @ 750Hz
Treble: +12 / -7 @ 4kHz
Deep Switch: Adds 5 dB of broadband boost at 30 Hz
Bright Switch: Adds 5 dB of broadband boost at 5-7 kHz
Effects Loop: Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation
Inputs: One 1/4″ input jack with an active/passive switch
Outputs: Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out.
Cooling: Two high-quality whisper fans with thermal speed control
Dimensions: 43 cm W x 35.5 cm D x 13.5 cm H
Rack Size: Three Spaces, Includes detachable rack ears
Weight: 19 kg
Warranty: 1 Year Australian (Registerable through CMI for Extended Warranty.)
