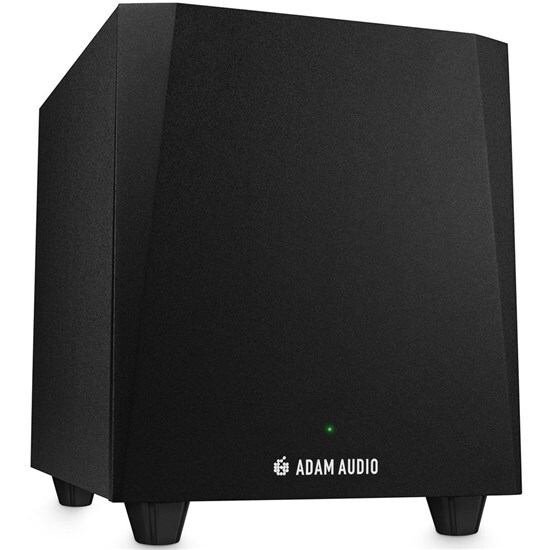

ADAM Audio T10s
Subwoofer
ADAM Audio announces the T10S, a powerful yet compact active 10′′ subwoofer. Equipped with a 130 watt Class D amplifier, the T10S’ frequency response of 32 Hz to 120 Hz is tailored to extend the bass response of ADAM’s successful T Series studio monitor speakers. An internal adjustable two-channel crossover allows calibration of the bass signal and provides optimal performance of the total system.
The T10S subwoofer’s performance, features and connectivity are designed specifically to complement ADAM Audio’s T5V and T7V near field monitors, and it is also capable of delivering outstanding results when used with other compact monitoring speakers.
SUBWOOFER (DOWN-FIRING)
| Number | 1 |
| Basket Ø | 10" (260 mm) |
| Voice Coil Ø | 38mm / 1.5" |
| Cone Material | Paper |
BUILT-IN AMPLIFIERS
| Subwoofer | 1 |
| Type | PWM |
| Amp. Power RMS | 130 W |
CONTROL PANEL
| Crossover Frequency | 80 Hz / 120 Hz / Bypass |
| Phase Inversion | 0° / 180° |
CONNECTORS
| Analog Inputs | XLR / RCA |
| Analog Outputs | XLR / RCA |
GENERAL DATA
| Frequency Response | 28 Hz - 120 Hz (@ -6 dB) |
| THD > 60 Hz | 0.6% |
| Max. SPL at 1 m (hemisphere) | ≥104 dB |
| Max. Power Consumption | 190 W |
| Input Sensitivity | +4 dBu / -10 dBV |
| Panel | Rear |
| Bypass | Yes, via footswitch (not included) |
| Standby | Yes, activates after 15 minutes with no incoming signal |
| Weight | 27 lb (12.2 kg) |
| Height x Width x Depth | 15.4" (390 mm) x 12.5" (318 mm) x 16.25" (413 mm) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Power cord, Quick Start Guide, Welcome Card |
