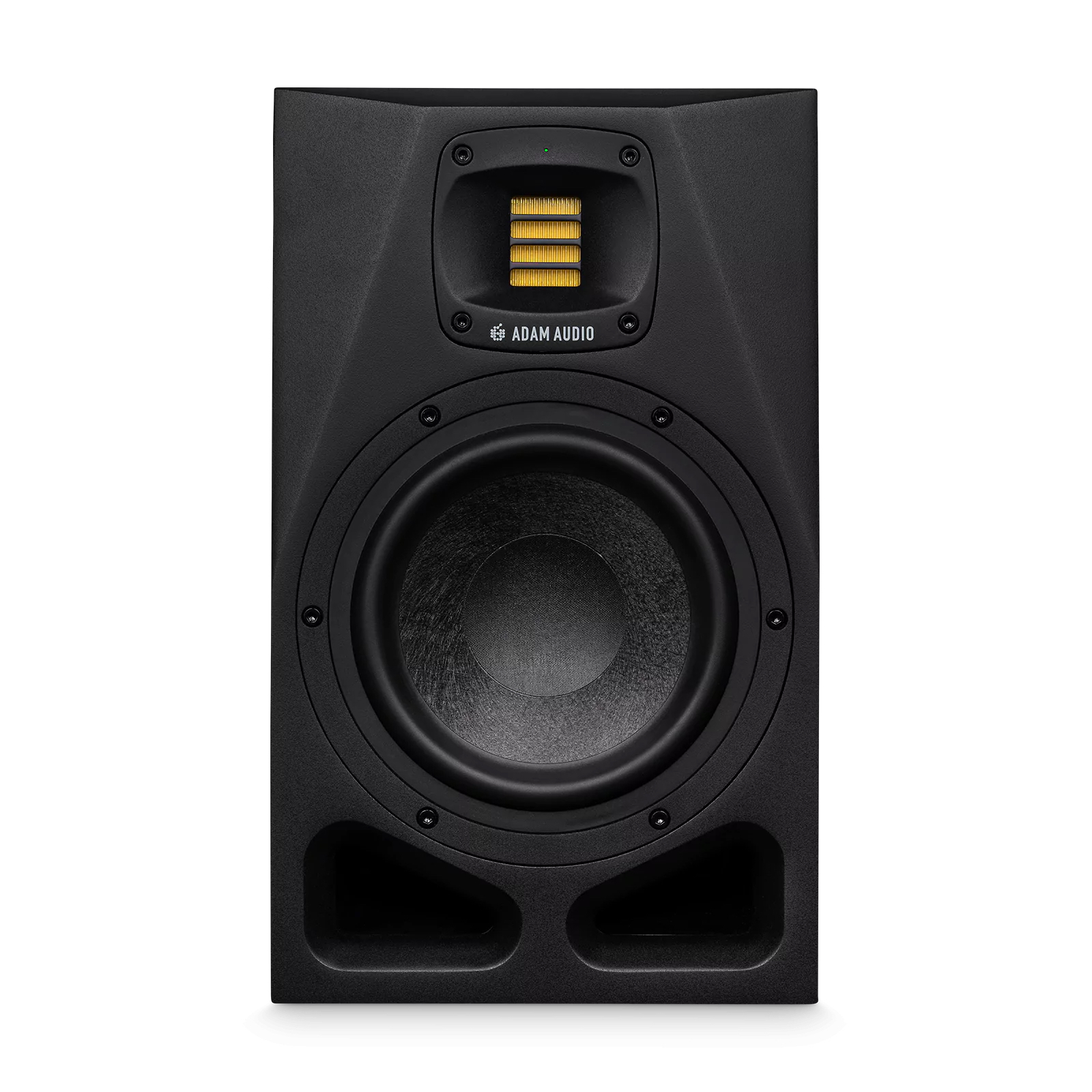

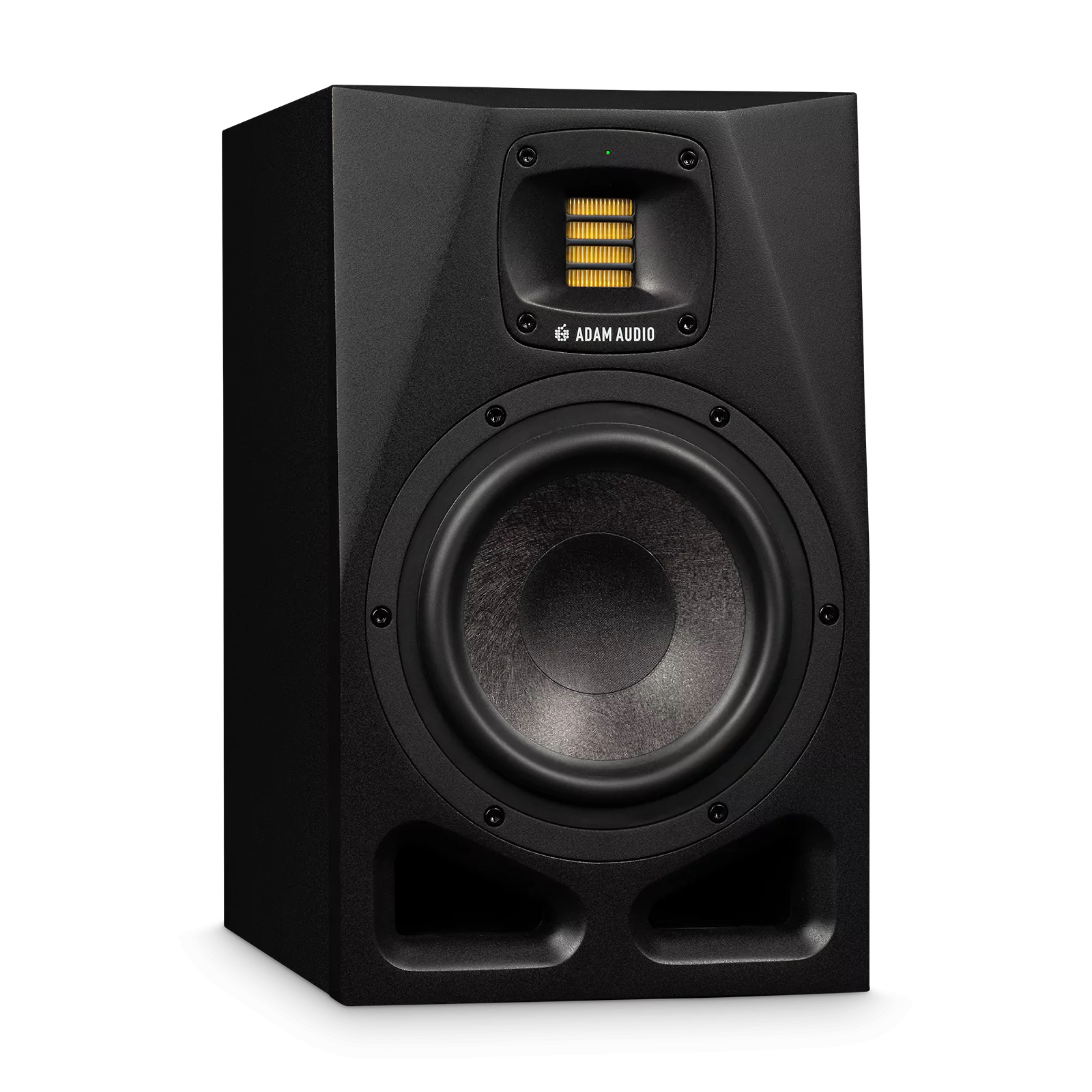

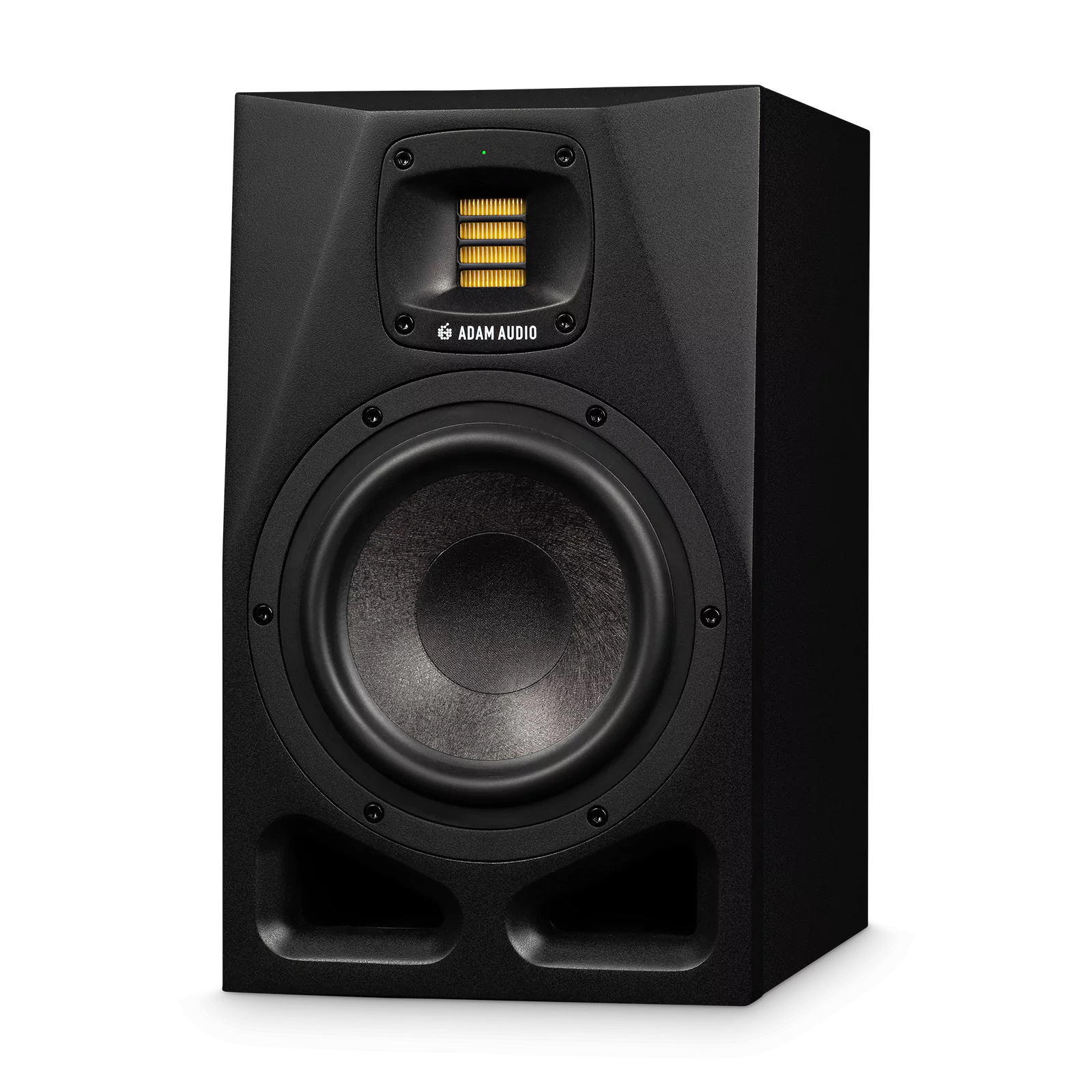

ADAM Audio A7V (Single)

A NEW INDUSTRY STANDARD

The A7V is a contemporary 2-way monitor that represents the evolution of ADAM Audio’s award winning A7X. It features a 7” Multi-Layer Mineral woofer and rotatable X-ART tweeter, which is made by hand in Berlin.

DSP-based voicing, equalization and room correction options can be controlled remotely and in real time via the free-to-download A Control software, and updatable firmware allows for new filters and tunings to be implemented over the lifetime of the monitor.

A CONTROL REMOTE SOFTWARE

The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over ethernet using A Control.

ROTATABLE HPS WAVEGUIDE & X-ART TWEETER

Made from a new glass fiber polymer compound, the HPS waveguide enables the X-ART tweeter to disperse sound in space with controlled consistency.

BASS REFLEX SYSTEM, CABINETS AND MOUNTING

The new A Series cabinets build on the heritage of ADAM Audio and the AX Series in particular.

AUTOMATED ROOM CORRECTION WITH SONARWORKS

ADAM Audio is proud to partner with Sonarworks on an automated room correction solution that runs directly on the DSP of A Series monitors.

HYBRID AMPLIFICATION

The A Series combines the best of both digital and analog worlds.

MULTI-LAYER MINERAL WOOFER [MLM]

The latest materials and advanced analysis and design processes have led to the development of our new long-throw woofers.

VOICINGS

A “Voicing” is a pre-defined sound profile of an A Series monitor. On the back panel, you will find two different selections, “UNR” and “Pure”.

ROOM ADAPTATION

On the back panel of A Series speakers, you will find four bands of room adaptation equalization: Bass, Desk, Presence and Treble.

DIGITAL SIGNAL PROCESSING

The A Series capitalizes on the transformative power of DSP-based electronics to provide greater tuning precision than analog-only speakers.

• Display: Front panel multi-colour LED
• Cabinet Design: Dual front ported
• Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
• Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
• Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
• AC Input Voltage: 100 – 240 V, 50/60 Hz
• Power Rating: 300 W max.
• Operating Conditions: -10° C to +45° C (+14° F to +113° F); <75 % RH, non-condensing
• Weight: 8.7 kg (19 lb 3 oz)
• Dimensions (Height x Width x Depth): 337 mm x 200 mm x 280 mm (13 1/4″ x 7 7/8″ x 11″)
• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: A7V loudspeaker, power cable, Quick Start Guide
