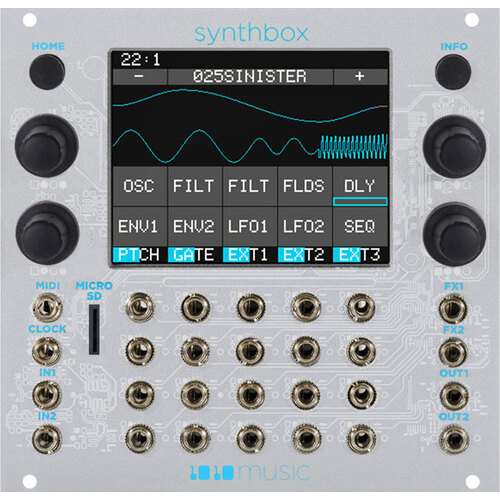

1010 Music Synthbox

Synthbox is a 4 note polyphonic synthesizer for your Eurorack system.

Watch the Waves

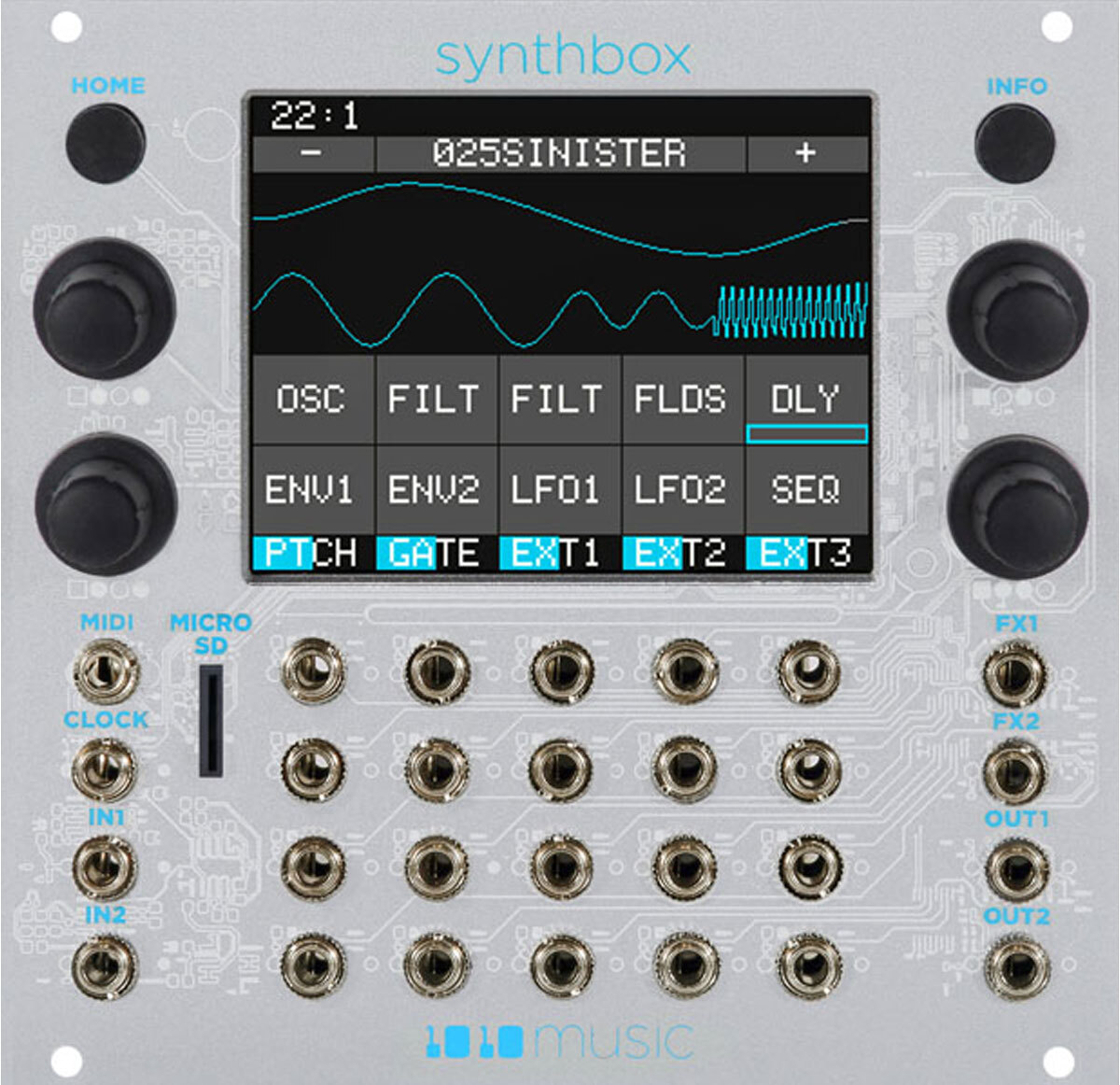

Synthbox is a 4 note polyphonic synthesizer for your Eurorack system.  Connect your favorite MIDI controller or CV Generator to synthbox and start jamming with built in presets. Use the touchscreen to choose and shape the waveforms and to apply the built in sound effects. Modulate the waves and the effects using a combination of on screen controls of envelopes, low frequency oscillators, and sequencers together with hard wired CV inputs to tweak the sound to meet your creative vision.

Features

• MIDI controllable with support for velocity, pitch bend, and modulation wheel
• CV controllable with pitch, gate, and 3 assignable modulators per voice
• 24 bit DACs and internal processing
• 8 wavetable oscillators
• 4 waveform oscillators
• 2 filters, 2 envelopes, 2 LFOS, and a step sequencer per voice
• Global flanger, distortion, and stereo delay effects
• Semi-modular control
• Stereo or individual voice outputs
• Comes with 50 presets and 100 wavetables
• Supports user wavetables from WAV file

What is Included

When you purchase synthbox, you will receive:

• a Series 1 eurorack module with a synthbox faceplate
• a microSD card with synthbox firmware loaded on it
• a eurorack power cable
• a synthbox Quick Start guide
• a MIDI Adapter

Series 1 Module Firmware Switching

Because synthbox is a Series 1 module, you can swap out the synthbox firmware for other series 1 module firmware quickly and easily.  This means you can switch to bitbox or fxbox firmware simply by signing up at forum.1010music.com, downloading the new firmware and following the instructions on the forum.  You can also download the latest synthbox firmware to get new features and updates. It’s like getting three modules in 1 with available upgrades!

Technical Specifications

• 26 HP
• +12V: 350mA
• -12V: 0mA
• 5V: 0mA
